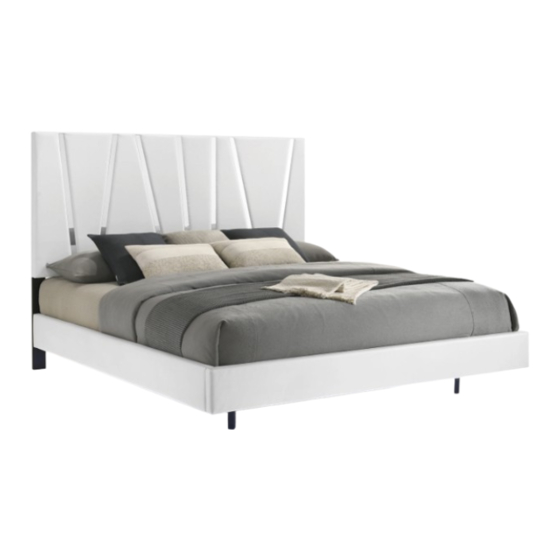

New Classic Furniture EUROPA B1840-315 Assembly Instructions Manual

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the parts list and/or hardware list shown below.
Please read all instructions carefully. See the hardware and furniture part listing for guidance. Be sure you have
all parts listed before beginning assembly. Place all wooden parts on a clean, flat surface to protect the finish
from scratches. Follow the diagram to assemble.
CAUTION
1. Do not fully tighten the nuts or bolts until the table is fully assembled.
2. Please tighten by hand, not by a drill. Overtightening will damage threads. Do not overtighten.
3. Keep all hardware out of the reach of childen.
PARTS LIST
ITEM DESCRIPTION
A HEADBOARD
HEADBOARD LEG
B
(RSF)
HEADBOARD LEG
C
(LSF)
D
FOOTBOARD
FOOTBOARD
E
SUPPORT RAIL
FOOTBOARD
F
SUPPORT LEG
SIDE RAIL
G
with label (L)
SIDE RAIL
H
with label (R)
I
SLAT
SLAT SUPPORT LEG
J
W/ADJUSTABLE FFET
HEADBOARD
K
SUPPORT RAIL
L
PLUG
M
WIRE
HARDWARE DIMENSIONS
VERIFICATION TOOL
ASSEMBLY INSTRUCTIONS
EUROPA COLLECTION
MODEL : B1840-315 EUROPA 5/0 Q HEADBOARD, FOOTBOARD, & SLATS
B1840-335 EUROPA- 5/0-6/6 Q/EK SIDE RAILS
SKETCH QTY
1PC
1PC
1PC
1PC
2PCS
2PCS
1PC
1PC
4PCS
4PCS
1PC
1PC
1PC
1
inches
HARDWARE LIST
ITEM DESCRIPTION
1 BOLT M8 x 3/4"
BOLT M8 x 2"
2
BOLT M6 x 2"
3
BOLT M6 x 1 3/8
4
SPRING WASHER -
5
M6 x 1/2"
FLAT WASHER -
6
M6 x 3/4"
CSK C/B SCREW -
7
M4 x 1 1/4"
8
ALLEN KEY M4
9
M5 ALLEN KEY M5
SPRING WASHER -
10
M8 x 1/2"
FLAT WASHER -
11
M8 x 7/8"
2
SKETCH
3
4
MADE IN MALAYSIA
QTY
8PCS
2PCS
14PCS
2PCS
16PCS
16PCS
8PCS
1PC
1PC
2PCS
2PCS
