New Classic Furniture REX D1078-10 Assembly Instructions

72" fixed top rectangular dining table

Advertisement

Quick Links

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the parts list and/or hardware list shown below.
Cautions :
(1) Do not fully-tighten the nuts or bolts until all nuts and bolts are assembled.
(To avoid causing damages to the thread, do not over-tighten the nuts or bolts.)
(2) Keep all hardware part out of reach of children.
PARTS LIST
NO
DESCRIPTION
A
TABLE TOP
B
TABLE LEG
B
ASSEMBLY INSTRUCTIONS
Item No : D1078-10
REX 72" FIXED TOP RECTANGULAR DINING TABLE
SKETCH
1 PC
4 PCS
0
1
2
3
0
1
QTY
NO
DESCRIPTION
BOLT
1
5/16" x 3 3/16''
SPRING WASHER
2
5/16"
FLAT WASHER
3
5/16"
4
ALLEN KEY
4
5
6
7
2
3
A
B
B
HARDWARE LIST
SKETCH
8
9
10
4
Created Date : 09/09/2024
QTY
8 PCS
8 PCS
8 PCS
1 PC
B
Page 1 of 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the REX D1078-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for New Classic Furniture REX D1078-10

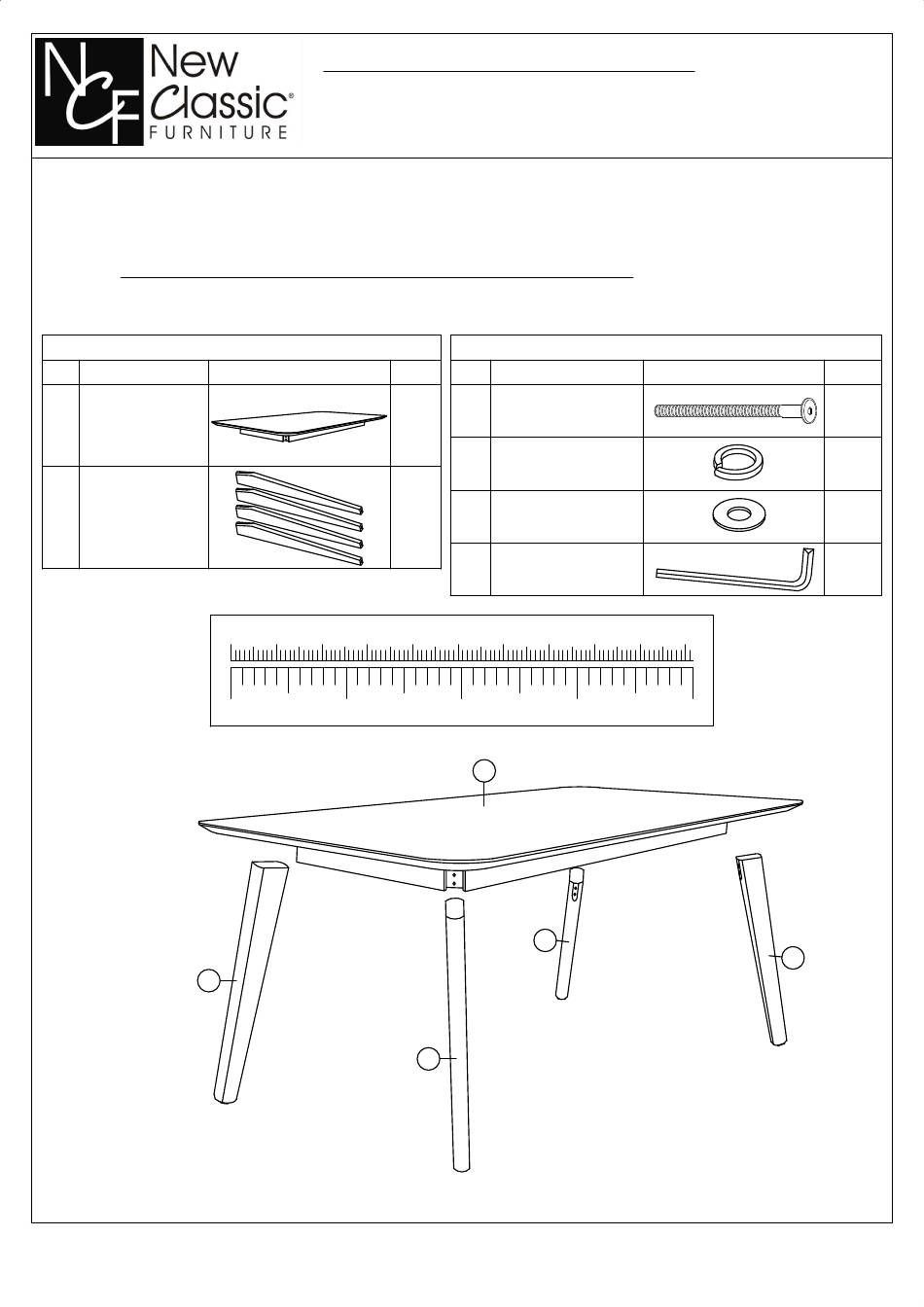

  • Page 1 ASSEMBLY INSTRUCTIONS Item No : D1078-10 REX 72" FIXED TOP RECTANGULAR DINING TABLE Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all items and compare with the parts list and/or hardware list shown below.
  • Page 2 STEP 1 : Place the table top (A) upside down on a flat and clean surface. Assemble the table leg (B) to the table top (A) by using the Allen Key (4) and the hardware Bolt 5/16" x 3 3/16'' (1), Spring washer (2) & Flat washer (3). **Attention: DO NOT TIGHTEN THE BOLTS.
