Spike 78-2200-R Installation Instructions

READ AND UNDERSTAND THESE INSTRUCTIONS COMPLETELY BEFORE INSTALLATION TO
AVOID INJURY TO YOURSELF, DAMAGE TO THE VEHICLE OR ACCESSORY.
• Torque specifications must be followed when tightening bolts. Over-tightening any and/or all screws will
cause cracks around mounting holes which is not covered by any warranty.
• As specified on carton label, once protective film on shields is removed, product cannot be returned.
• As specified on carton label, damage caused by packaging staples is not covered by warranty. All staples must
• Failure to follow these installation instructions completely may void any warrantable components and result in
• Do not use Loctite or any other similar fastener adhesive. These types of products react to plastics and cause
• Our windshields are made from the highest quality material providing optimum transparency and clarity.
Blurriness and/or extrusion marks may or may not appear when looking through windshield from a wide,
• The application of improper cleaners, abrasive and/or dirty cleaning towels can severely damage the product.
Failure to follow cleaning recommendation (provided herewith) may void any warrantable components.
These instructions contain important information for future reference and must be given to the customer at time of
ITEM PART NAME
A
Co-extruded SIDE bulb seal (⅛")
B
C
D
INSTRUCTION
BAG
E Mounting hardware

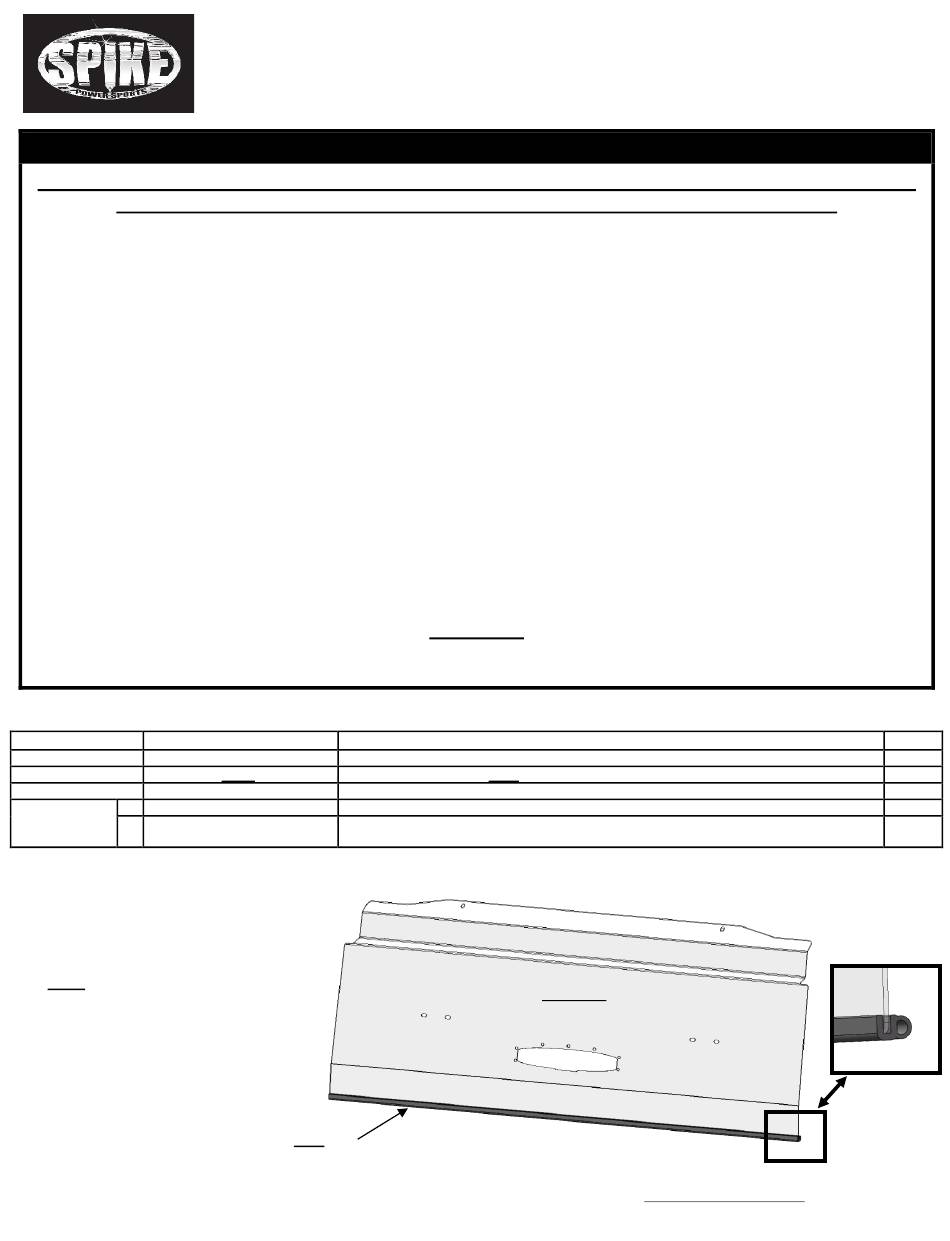

1. Installation
a) Find a clean flat area where you can
safely lay down the windshield (Item A).
Partially remove the protective film on
both sides and apply the co-extruded
SIDE bulb seal (Item B) to the lower lip
as shown below using manual pressure to
ensure good adhesion and cut any
excess.
78-2200-R - Instructions CANAM DEFENDER 2020 Rear Vent Windshield - rev00
IMPORTANT NOTICES
• For proper installation, TWO people are required .
be removed prior to removing product from carton.
product damage or personal injury.
cracking. Not covered by any warranty.
side-angle. This is normal for all extruded clear plastic materials.
purchase or upon completion of installation.
Parts List
(parts available with kit only and not available separately)
Rear windshield
Includes: 57" Co-extruded SIDE bulb seal (⅛") / #77-108BS-SIDE [end user to cut to exact length]
Vent assembly Includes: 1 vent cover, 1 vent flap assembly, 1 rubber vent seal and 7 vent mounting screws
Flop clamp set
Includes: 4 Philips truss screws M6 x 30, 4 Philips truss screws M6 x 20, 2
Co-extruded SIDE bulb
seal ⅛" (+/- 54
3
/ ")
16
INSTALLATION INSTRUCTIONS
CANAM DEFENDER 2020
REAR WINDSHIELD - VENT
PART # 78-2200-R
DEALER
DESCRIPTION
CNC windshield cut-out made of ⅛" thick GE polycarbonate or equivalent
Includes: 2 flop clamps
4 coupling nuts M6, 4 nylon round spacers ¾" and 6 plastic shoulder washers
16,
REAR VIEW
Philips truss screws M6 x
www.spikepowersports.com / 888-769-2295
QTY
1
1
1
1
1
1
