Spike 78-8900A-R Installation Instructions Manual

READ AND UNDERSTAND THESE INSTRUCTIONS COMPLETELY BEFORE INSTALLATION TO
AVOID INJURY TO YOURSELF, DAMAGE TO THE VEHICLE OR ACCESSORY.
• Torque specifications must be followed when tightening bolts. Over-tightening any and/or all screws will
cause cracks around mounting holes which is not covered by any warranty.
• As specified on carton label, once protective film on shields is removed, product cannot be returned.
• As specified on carton label, damage caused by packaging staples is not covered by warranty. All staples must
• Failure to follow these installation instructions completely may void any warrantable components and result in
• Do not use Loctite or any other similar fastener adhesive. These types of products react to plastics and cause
• Our windshields are made from the highest quality material providing optimum transparency and clarity.
Blurriness and/or extrusion marks may or may not appear when looking through windshield from a wide,
• The application of improper cleaners, abrasive and/or dirty cleaning towels can severely damage the product.
Failure to follow cleaning recommendation (provided herewith) may void any warrantable components.
These instructions contain important information for future reference and must be given to the customer at time of
ITEM PART NAME
A Upper windshield part
B Lower windshield part
C Vent assembly
D Co-extruded bulb seal (¼")
E Velcro straps 12"
INSTRUCTION
F Flop clamp set
BAG
G Nuts & bolts
1. Installation
a) Insert the injected rubber pad spacers (Item F) to all clamps
(Item F) as shown below.
78-8900A-R - Instructions KAWASAKI TERYX KRX 1000 Vent Rear Windshield - rev00
INSTALLATION INSTRUCTIONS
IMPORTANT NOTICES
• For proper installation,
be removed prior to removing product from carton.
product damage or personal injury.
cracking. Not covered by any warranty.
side-angle. This is normal for all extruded clear plastic materials.
purchase or upon completion of installation.
Parts List
(parts available with kit only and not available separately)
CNC windshield cut-out made of ⅛" thick GE polycarbonate or equivalent
CNC windshield cut-out made of ⅛" thick GE polycarbonate or equivalent
Includes: 1 vent cover, 1 vent flap assembly, 1 rubber vent seal and 7 vent mounting screws
Includes: 54" Co-extruded bulb seal (¼") / #77-95BS [end user to cut to exact length]
Includes: 4 Philips truss head screws M6 x 16, 4 plastic shoulder washers M6, 7 push type retainers (

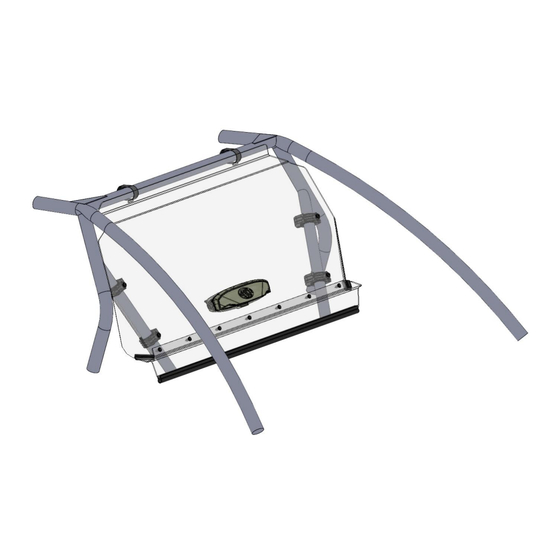

KAWASAKI TERYX KRX 1000
REAR WINDSHIELD - VENT
PART # 78-8900A-R
TWO
people are required .
DEALER
DESCRIPTION
Velcro strap 12" with double buckle
Includes: 2 flop clamps and 4 injected rubber pad spacers (1 ¾")
round clamp spacers (1 ⅛" long)
BAD
INSTALLATION
5
/
16
GOOD
INSTALLATION
www.spikepowersports.com / 888-769-2295
QTY
1
1
1
1
2
2
") and 4
1
1
