Spike 77-2295 Installation Instructions

READ AND UNDERSTAND THESE INSTRUCTIONS COMPLETELY BEFORE INSTALLATION TO
AVOID INJURY TO YOURSELF, DAMAGE TO THE VEHICLE OR ACCESSORY.
 Torque specifications must be followed when tightening bolts. Over-tightening any and/or all screws will cause
 As specified on carton label, once protective film on shields is removed, product cannot be returned.
 As specified on carton label, damage caused by packaging staples is not covered by warranty. All staples must be
 Failure to follow these installation instructions completely may void any warrantable components and result in
 Do not use Loctite or any other similar fastener adhesive. These types of products react to plastics and cause
 Our windshields are made from the highest quality material providing optimum transparency and clarity.
Blurriness and/or extrusion marks may or may not appear when looking through windshield from a wide, side-
 The application of improper cleaners, abrasive and/or dirty cleaning towels can severely damage the product.
Failure to follow cleaning recommendation (provided herewith) may void any warrantable components.
These instructions contain important information for future reference and must be given to the customer at time of
ITEM
A
B Co-extruded bulb seal
C
D
E
INSTRUCTION
BAG
F Windshield Hardware

1. Installation

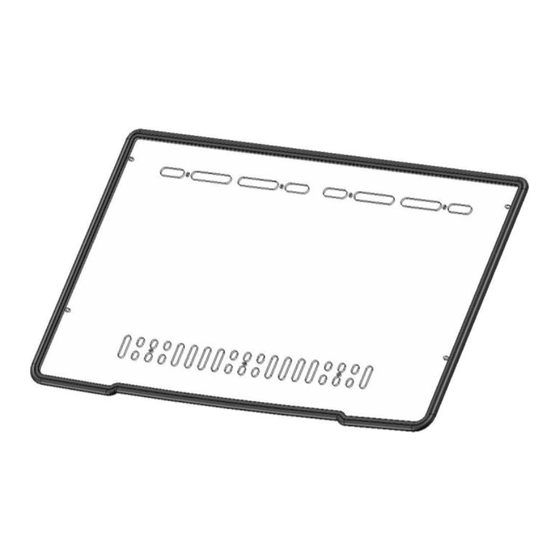

a) Find a clean flat area where you can lay down the windshield (Item A).
Partially remove the protective film on both sides and apply the co-extruded
bulb seal starting at bottom center of the windshield using manual pressure
to ensure good adhesion. At the start/finish of the bulb seal, cut an extra ¼"
more than required. This will ensure a tight fit between the start and finish
of the bulb seal.
77-2295 - Instructions CANAM DEFENDER Full Multivents Windshield – rev02

IMPORTANT NOTICES

 For proper installation, TWO people are required .
cracks around mounting holes which is not covered by any warranty.
removed prior to removing product from carton.
product damage or personal injury.
cracking. Not covered by any warranty.
angle. This is normal for all extruded clear plastic materials.
purchase or upon completion of installation.

Parts List

(parts available with kit only and not available separately)
PART NAME
Windshield
Upper vent grill
Lower vent grill
Includes: 7 carriage bolts M6 x 30, 7 thin plastic washers, 14 plastic washers M6, 7 rubber washers
Vent hardware
1/4"
PLOINSTALLATION INSTRUCTIONS
CANAM DEFENDER
FULL MULTIVENTS WINDSHIELD
PART # 77-2295
DEALER
DESCRIPTION
CNC windshield cut-out made of ¼" thick GE MR10 polycarbonate or equivalent
Includes: 168" Co-extruded bulb seal [end user to cut to exact length]
CNC vent grill cut-out made of 3/16" tinted polycarbonate
CNC vent grill cut-out made of 3/16" black polyethylene
M6 and 7 female thread knobs M6
Includes: 4 metal plate hooks, 4 washers M6 x 25 and , 4 knobs M6 x 16
Co-extruded bulb seal
starting/finishing point
www.spikepowersports.com / 888-769-2295
QTY
1
1
2
1
1
1
1
