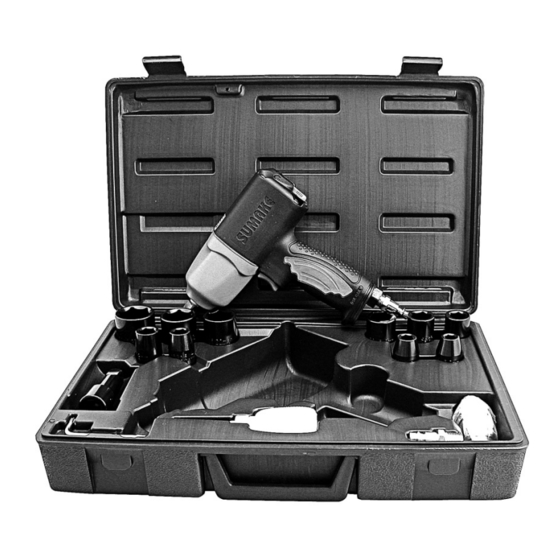

17 Pcs 1/2" Air Impact Wrench Kit
Composite Housing (Blow Case)
SPECYFICATION
Free Speed (rpm)
Square Driver (inch)
Std. Bolt Size (inch)
Air Consumption(l/min)
Work Torque(N-m)
Air Hose(inch)
Air Inlet (inch)
Overall Length(inch)
Air Pressure(bar)
Net Weight (kgs)
ST-C540K
7500
Vibration
EN28662-1
1/2
EN28662-7
3/4
226
813
3/8
1/4
9
6.2
2.0
PNEUMATIC
Noise
ISO 3744:1995(E)
Sound pressure
No-Load:
level 94.3 dB
Sound power level
8.2 m/s
2
105.3 dB
TOOLS
Remark
Should wear an
approved ear -
protector and
gloves while
operating tool.
Advertisement
Table of Contents
Related Manuals for Sumake ST-C540K
Summary of Contents for Sumake ST-C540K
- Page 1 PNEUMATIC TOOLS 17 Pcs 1/2" Air Impact Wrench Kit Composite Housing (Blow Case) ST-C540K SPECYFICATION Free Speed (rpm) 7500 Vibration Noise Remark EN28662-1 ISO 3744:1995(E) Square Driver (inch) EN28662-7 Std. Bolt Size (inch) Sound pressure Should wear an Air Consumption(l/min) No-Load: level 94.3 dB...
- Page 2 EC DECLARATION OF CONFORMITY FOR MACHINERY SUMAKE INDUSTRIAL CO.,LTD. Manufacturer: Address: 4F,-NO. 351, YANGGUANG ST., NEIHU DISTRICT TAIPEI CITY 114, TAIWAN herewith declares 7 Pcs 1/2" Air Impact Wrench Kit that: Composite Housing (Blow Case) - is in conformity with the provisions of the Machinery Directive (Directive 2006/42/EC), as...
- Page 3 Sumake is a manufacturer and exporter of air tools since established. We have devote all our effort in improving quality and tools life. As well as the noise and vibration of tools. Bring all of your working efficiency, profits and enjoy using the tool is our principle.
- Page 4 2-3 Air hose Clean the hose with a blast of compressed air before connecting the hose to air tool. This will prevent both moisture and dust within the hose from entering the tool and causing possible rust or malfunction. To compensate for unusually long hose (over 25 ft), the line pressure should be increased accordingly. 2-4 Inserted tools Use only the socket or adapter which are in good condition for use.
- Page 5 1.The power toll shall not be used in potentially explosive atmospheres. 2.Disconnect the air hose before changing or adjusting any inserted tools. 3.Prevent long hair or loose clothing from drawing in while operate this tool. 4.Keep your body in well balanced position and always wear gloves to reduce the risk of crushing caused by torque between handle and workpiece.
- Page 6 PARTS LIST Parts No. Description Q'ty No. Parts No. Description Q'ty C540-01 Housing Sub Assembly C540-28 Rotor [Incl. Bushing] C540-29 Rotor Blade C540-04 Screw Sub Assembly [Incl. Seal] C540-30 Front Plate C540-05 Oil Seal C540-31 O-Ring C540-06 Valve C540-32 Oil Seal C540-07 Spring C540-33...
