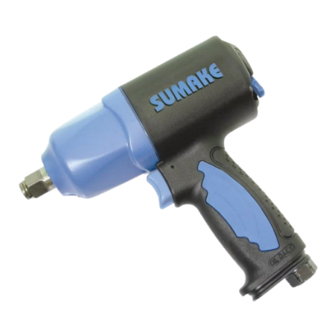

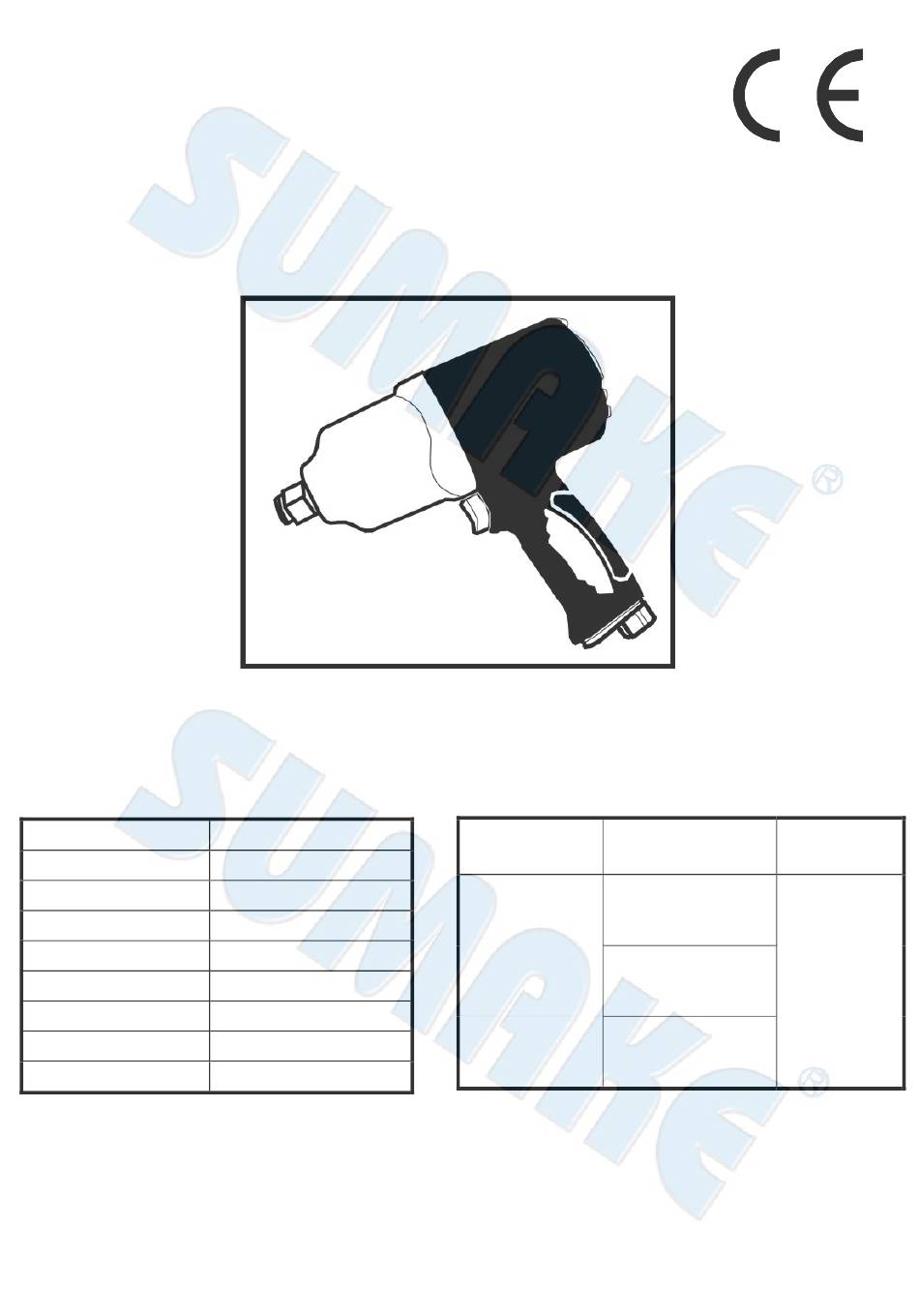

3/8" Air Impact Wrench (Twin-Hammer)
Specification:
Free Speed
Capacity Bolt Size
Max Torque
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
ST-C535
10,000 r/min
5/8" (M16)
320 ft-lb (434 N-m)
15 CFM (430 L/min)
6-1/2" (165 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
2.64 lbs (1.2 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
No load: 104.8 dB(A)
Load:
8.85 m/s²
Sound power level
No load: 115.8 dB(A)
load: 107.7 dB(A)
Uncertainty
²
K= 1.5 m/s
Noise
EN ISO 15744
Please always
load: 96.7 dB(A)
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-C535-S-1412G-HY
Remark
wear ear
hearing!
Advertisement
Table of Contents
Related Manuals for Sumake ST-C535
Summary of Contents for Sumake ST-C535
- Page 1 Air Hose (I.D.) 3/8” (10 mm) risk of impaired Uncertainty Uncertainty hearing! Air Pressure 90 psi (6.3 bar) ² K= 1.5 m/s K= 3dB Net Weight 2.64 lbs (1.2 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-C535-S-1412G-HY...
- Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment：3/8" AIR IMPACT WRENCH (TWIN HAMMER), COMPOSIT HOUSING Model/ Serial No.：ST-C535 to which this declaration applies, complies with these normative documents: ...
- Page 3 Trigger set has other objects stuck on it or the Disassemble and repair does not bounce back correctly spring is broken, deformed or rusty Motor keeps running Trigger function normally Trigger O-ring worn out or valve set damaged Disassemble, repair and replace parts or broken ST-C535-I-1312C-HY...
- Page 4 ST-C535 3/8" AIR IMPACT WRENCH (TWIN HAMMER),COMPOSIT HOUSING PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty Housing Sub Assembly [Incl. Cylinder Sub Assembly [Incl. C535-01 C535-28 Bushing] Steel Ball] C535-02 Spring pin C535-30 Rotor C535-03 Reverse Switch C535-31...
- Page 5 IMPACT WRENCH Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 3. If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards 1.
- Page 8 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
