SUMAKE
Twin Hammer, Composite Housing
Specification:
Free Speed
Max. Torque
Working Torque
Overall Length
Air Consumption
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS

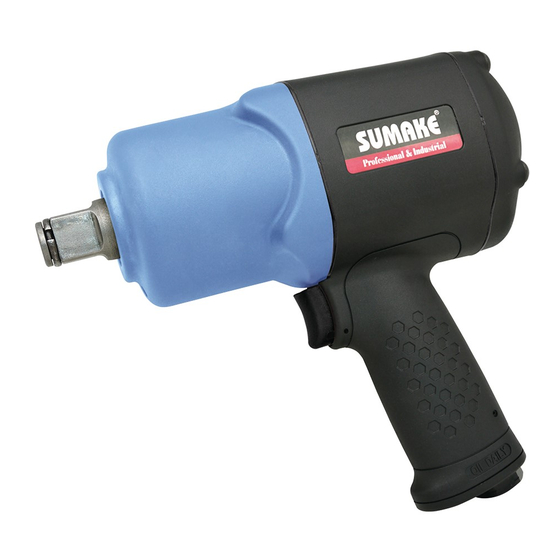

1" Air Impact Wrench
ST-C5844
6,000 r/min
1550 ft-lb (2101 Nm)
1250 ft-lb (1695 N-m)
8-5/8" (219 mm)
19 CFM (540 L/min)
3/8" (10 mm)
1/2" (13 mm)
90 psi (6.3 bar)
6.94 lbs (3.15 kg)
Noise and Vibration:
Vibration
EN ISO 28927-2
Sound Pressure Level
under load: 97.5 dB(A)
under load
:
8.9 m/s²
under load: 108.5 dB(A)
Uncertainty
²
K= 1.5 m/s
Noise
EN ISO 15744
Please always
protector at
Sound power level
environment
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-C5844-S-1910A-JUF
Remark
wear ear
hearing!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sumake ST-C5844
Summary of Contents for Sumake ST-C5844
- Page 1 Air Hose (I.D.) 1/2” (13 mm) risk of impaired Air Pressure 90 psi (6.3 bar) Uncertainty Uncertainty hearing! ² K= 1.5 m/s K= 3dB Net Weight 6.94 lbs (3.15 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-C5844-S-1910A-JUF...
- Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 1" AIR IMPACT WRENCH TWIN HAMMER, COMPOSITE HOUSING Model/ Serial No.：ST-C5844 to which this declaration applies, complies with these normative documents: ...
- Page 3 Sumake is a manufacturer and exporter of air Sumake is a manufacturer and exporter of air Sumake is a manufacturer and exporter of air Sumake is a manufacturer and exporter of air...
- Page 4 3/4" Anvil [ST-C5644] C5644-09 O-Ring C5644-32B 3/4" Anvil 6" Extended [ST-C5644-6] C5644-11 Reverse Lever C5844-32 1" Anvil [ST-C5844] C5644-12 Spring C5844-32B 1" Anvil 6" Extended [ST-C5844-6] C5644-13 Steel Ball C5644-33 O-Ring [ST-C5644(-6)] C5644-14 O-Ring C5844-33 O-Ring [ST-C5844(-6)] C5644-15 O-Ring C5644-34...
- Page 5 IMPACT WRENCH Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 3. If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional. Safety precautions for accessory hazards 1.
- Page 8 General preparation and connection: When using brand-new air hose or air pipe. Blow and clean the inside of air hose or pipe before installation. Keep inside of air hose or air pipe clean to prevent airdrop problem caused by the lots of drain and dust accumulated and possibly make the inside diameter smaller in the long use.
