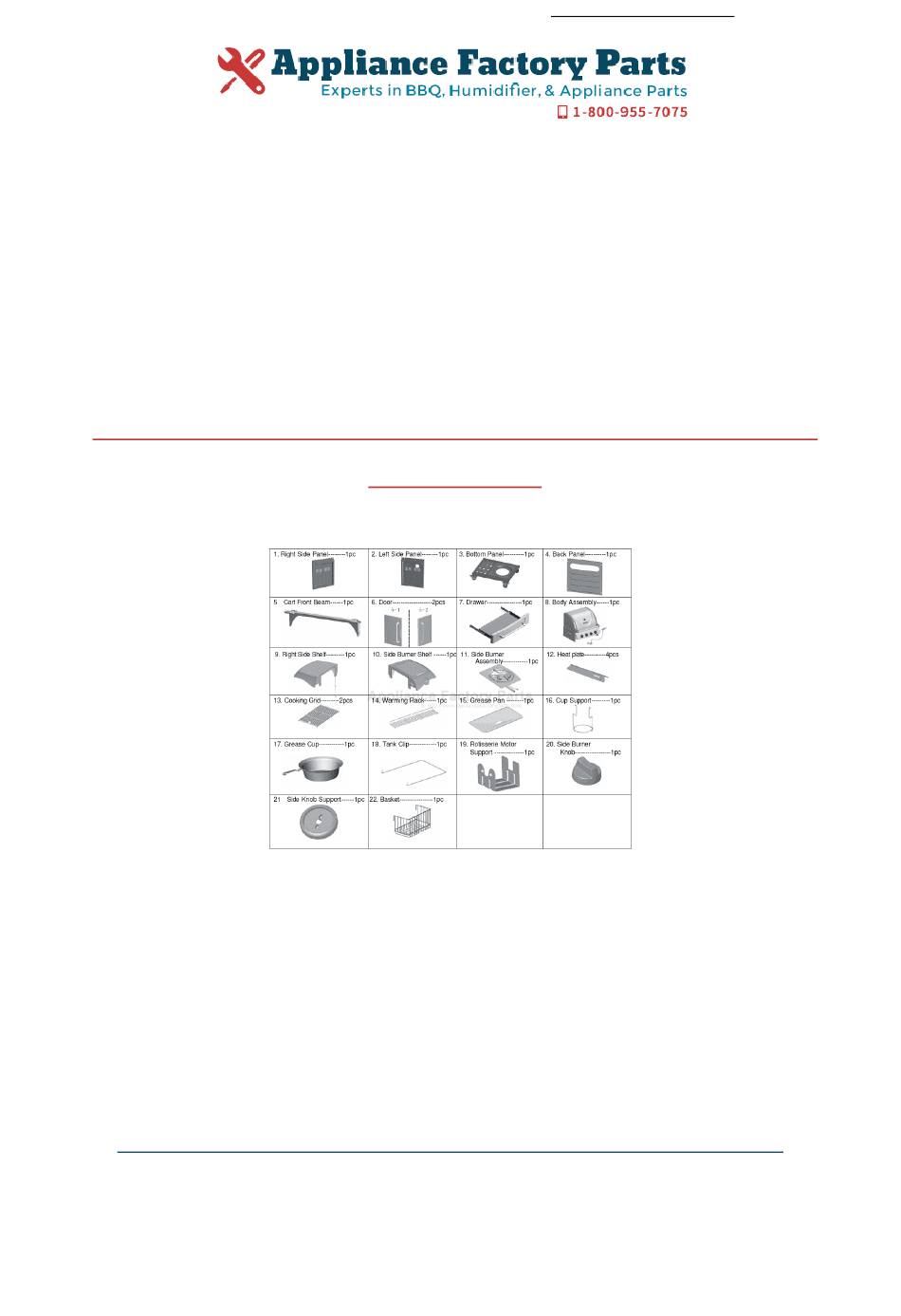

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Perfect Flame SLG2006BN Owner's Manual Shop genuine replacement parts for Perfect Flame SLG2006BN Find Your Perfect Flame Grill Parts - Select From 45 Models -------- Manual continues below --------...
- Page 2 FOR SOMEONE ELSE, GIVE THIS MANUAL TO HIM OR HER TO SAVE FOR FUTURE REFERENCE. For Outdoor Use Only. FOR CUSTOMER SERVICE, EMAIL TO (outside any enclosure) SERVICE@PYROMAGICBBQ.COM CALL 1-877-885-8227 (TOLL-FREE), 6 A.M. – 5 P.M.(PST),MONDAY-FRIDAY. Printed in China SLG2006BN Owner’s Manual...
-
Page 3: Special Warnings
• If odor continues, immediately call your gas supplier or fire department. Always read and understand the WARNINGS and INSTRUCTIONS that are contained in this manual before attempting to use this gas barbecue grill, to prevent possible bodily injury or property damage. SLG2006BN Owner’s Manual... -
Page 4: Table Of Contents
Assembly Instructions ....................7 Operating Your Grill .....................15 Natural Gas Connection ........15 Checking for Leaks ..........16 Lighting Your Grill ..........16 Excess Flow Safety Valve Reset Procedure.….…18 Care and Maintenance .........19 Award Winning Barbecue Recipes ..............20 Troubleshooting ....................21 Warranty Program ....................23 SLG2006BN Owner’s Manual... -
Page 5: For Your Safety
Move gas hoses as far away as possible from hot surfaces and dripping hot grease. Never keep a filled gas container in a hot car or car trunk. Heat will cause the gas pressure to increase, which could open the relief valve and allow gas to escape. SLG2006BN Owner’s Manual... - Page 6 Step 3 Ensure that the valve nozzle is pointing straight and completely inserted into the venturi tube. GENERAL INFORMATION 1. A natural gas hose is required for operation. 2. This gas grill is NOT intended for commercial use. SLG2006BN Owner’s Manual...
-
Page 7: Illustrated Parts List
12. Heat Plate -------4pcs 13. Cooking Grid---------2pcs 14. Warming Rack------1pc 15. Grease Pan --------1pc 16. Cup Support----------1pc 17. Grease Cup------------1pc 18. Natural Gas Hose--1pc 19. Rotisserie Motor 20. Side Burner Support --------------1pc Knob-----------------1pc Side Knob Seat------1pc 22. Basket----------------1pc ¡ SLG2006BN Owner’s Manual... -
Page 8: Hardware List
M4x12mm Bolts M4 Nuts 6pcs 3pcs M4 Washers M6 Nuts M4x16 mm Bolts 2pcs 2pcs Screwdriver M4 x29 mm Screw Studs Hardware listed above is not scaled to exact size (A screwdriver is included for your convenience.) SLG2006BN Owner’s Manual... -
Page 9: Assembly Instructions
Step 2 Loosen four back panel bolts (pre-attached) and insert the back panel (4). Tighten four panel bolts by hand until secure. Go back to tighten all the bolts with the screwdriver provided. SLG2006BN Owner’s Manual... - Page 10 Insert the pin on top of the right door in the right side of the cart front beam. Repeat the same procedure for the left door (6-2). SLG2006BN Owner’s Manual...
- Page 11 M6 washer (E) into each hole on left sides of the body assembly. Tighten by hand until secure. Repeat the procedure for right side of the body assembly. Go back to tighten all the bolts with the screwdriver provided. SLG2006BN Owner’s Manual...
- Page 12 Make certain the base of the valve shaft is flush with the side knob support. Screw a M4x16mm bolt (I) and a M4 washer (G) into each pre-drilled hole. Tighten the bolts with the screwdriver provide. Insert the side burner knob (20) into knob shaft on valve. SLG2006BN Owner’s Manual...
- Page 13 Insert the M4 washers ((G) on the bolts end and screw the M4 nuts (H) into bolts by hand. Go back to tighten all the bolts with the screwdriver provided. Step 10 Connect the ignition cable with the electrode. Make certain the connection is secure. SLG2006BN Owner’s Manual...
- Page 14 Insert a M6x15mm bolt (A) into each hole. Insert a M6 washer (E), a spring washer (D) and a M6 nut (J) into end of each bolt. Tighten all the bolts with nuts with the screwdriver provided. SLG2006BN Owner’s Manual...
- Page 15 Place the grease cup (17) on the cup seat Step 14 Connect the natural gas hose (18) with the side burner valve by screw the nut on end of the hose. (see diagram on page 15) SLG2006BN Owner’s Manual...

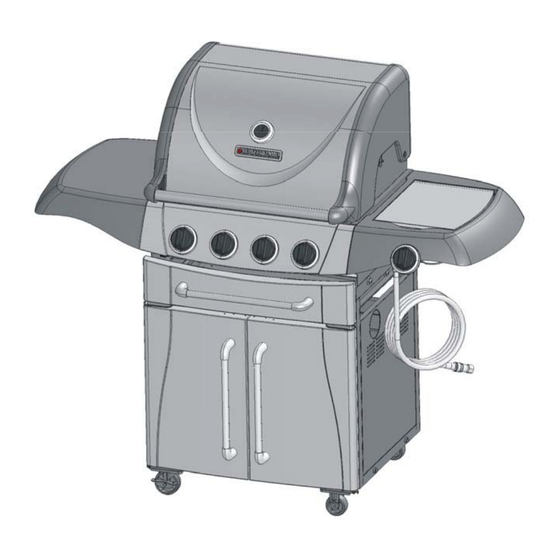

- Page 16 Fully Assembled View SLG2006BN Owner’s Manual...
-
Page 17: Operating Your Grill
(3.5kPa), your gas grill must be isolated from the gas supply piping system by closing its individual manual shutoff valve. Warning: Burner valves are pre-tested at the factory to operate on natural gas. If you wish to convert or change it, be sure to contact your grill distributor or dealer FIRST! SLG2006BN Owner’s Manual... -
Page 18: Checking For Leaks
If the burner does not light, return the control knob to the “OFF” position immediately. Wait five minutes for the gas to clear and repeat the procedure. After burner is lit, repeat the procedure with any other burner desired. Adjust control knob(s) to desired cooking temperature. SLG2006BN Owner’s Manual... - Page 19 FIG. B FIG. C Normal: Soft blue flames Out of adjustment: Noisy hard Poor combustion: Wavy, with yellow tips between 1 blue flames – too much air. yellow flames- too little inch - 2 inches high. air. SLG2006BN Owner’s Manual...
-
Page 20: Excess Flow Safety Valve Reset Procedure
12. After the first front burner is lit, turn on the other control knob(s) to the HIGH position. **If you have more than two burners, ONLY turn them on ONE AT A TIME. 13. When all front burners are lit, close the BBQ lid 14. Wait for 10-15 minutes, the temperature should reach 400 – 450 F° SLG2006BN Owner’s Manual... -
Page 21: Care And Maintenance
Inspect burner for damage (cracks or holes). If damage is found, replace with a new burner. Reinstall burner. Check to ensure the gas valve orifices are correctly positioned, pointing straight into burner inlet (venturi). Also, check position of spark electrode. SLG2006BN Owner’s Manual... -
Page 22: Award Winning Barbecue Recipes
Prepare: marinade while they cook. Cooking times will Combine all ingredients and marinate steak for 7-8 vary according to the vegetables chosen. hours. Remove meat from marinade and grill over very high heat to desired doneness. SLG2006BN Owner’s Manual... -
Page 23: Troubleshooting
Burn grill for 15 minutes with the lid closed manufacturing oils. Spider webs or insect nest in venturi Clean venturi. Food residue, grease or seasoning Clean burner. salt on burner. Poor alignment of valve to burner Assure burner venturi is properly engaged venturi. with valve SLG2006BN Owner’s Manual... - Page 24 If flames are blue and noisy – close flap at flames. the end of the venturi tubes in 1/8” increments until flames are correct. *Propane Models must be open a minimum of 1/8” *Natural Gas Models must be open a minimum of 1/16” SLG2006BN Owner’s Manual...
-
Page 25: Warranty Program
If you have any questions related to the product or warranty, please call our customer service center at 1-877-885-8227, 6:00 AM to 5:00 PM (PST), Monday through Friday. Manufactured by: Lucas Innovation Inc. Xiekeng District, QingXi Town, Dong Guan, Guang Dong, China Printed in China SLG2006BN Owner’s Manual...
