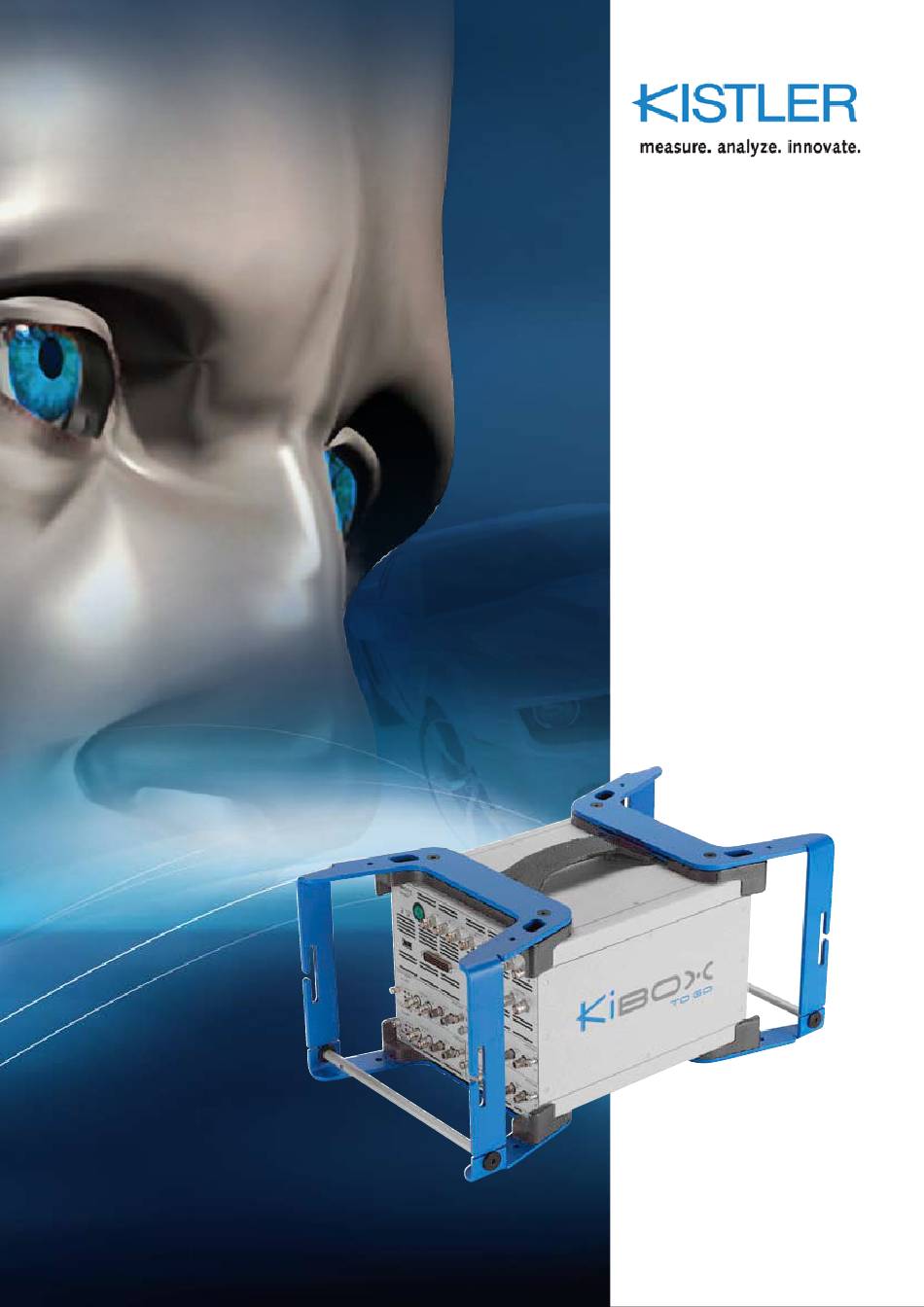

- Page 1 Quick Guide KiBox To Go Type 2893A... KiBox Cockpit Version 3.1 for In-Vehicle Combustion Analysis ä 2893A_002-514e-01.18...
-
Page 3: Preface
Type 5064C… from Firmware V2.10 and Type 5064D…from Firmware V1.0 Piezoresistive amplifier Type 4665B... from Firmware V1.22…V1.23 You will find more explanations in the instruction manual KiBox To Go and in the sensor installation manual. The details in this manual may be altered without notice at any time. Kistler reserves the right to improve and modify the product in line of technical developments without being obliged to inform people or organizations of such changes. -
Page 4: Table Of Contents
Contents Contents Preface ..........................2 Contents ..........................3 Introduction ........................ 5 Scope of Delivery ................5 Principle Measurement Setup ............. 6 Software Installation ....................7 Hardware Installation ....................8 Configuration ......................9 Laptop IP Address ................9 Laptop Firewall ................9 Laptop Energy Manager .............. - Page 5 Quick Guide KiBox To Go, Type 2893A… with KiBoxCockpit V3.1 7.1.3 KiBox-Capture ..............28 CAN-Output ................. 30 7.2.1 Configuration ..............30 Total pages 28 Page 4 2893A_002-514e-01.18...
-
Page 6: Introduction
In choosing this quality product from Kistler you have selected a technically innovative device that is highly accurate and should provide many years of service. The KiBox To Go Type 2893A... with KiBoxCockpit is the ideal device for mobile combustion analysis. -
Page 7: Principle Measurement Setup
Connecting cable, length 5 m Principle Measurement Setup Figure 1: Local network in a vehicle - KiBox To Go and accessories To supply power to the various devices, especially in the context of engine- start and engine-stop measuring systems, either a separate measurement battery or an alternative voltage source needs to be incorporated. -
Page 8: Software Installation
Software Installation Software Installation The following minimum requirements apply for the KiBox-System: PC with 2 GHz Processor (Dual Core) Minimum 1 GByte for the program and 5 GByte for the data storage unit Minimum 2 GByte RAM (recommended 4 GByte) ... -
Page 9: Hardware Installation
CA1, an optical crank angle encoder with a LVDS-Output can solely be connected to the input CA2. Please take note that currently only Kistler charge amplifiers Type 5064B11 and 5064B12 are being supported by the software. In any case switch off the KiBox‘s voltage supply when you insert or remove amplifiers. -
Page 10: Configuration
Configuration Configuration Laptop IP Address The KiBox is delivered with the Default-IP-Address 192.168.0.100. In the alternative IP- Configuration of your Gigabit-Ethernet network interface card please set the value of the address between 192.168.0.101 and 192.168.0.253, e.g. 192.168.0.101. Figure 3: IP-Configuration of the Laptop-Network Interface card Laptop Firewall The KiBoxCockpit Installer extends the settings of the windows own firewall by the exceptions which are essential for the communication between Laptop and KiBox. -
Page 11: Audio Feedback
Quick Guide KiBox To Go, Type 2893A… with KiBoxCockpit V3.1 Audio feedback The KiBoxCockpit-Software disposes over an audio feedback which gives you helpful feedback. Please check that the loudspeakers are activated with adequate volume. Connection of the Laptop with the KiBox for the first Time At the first start-up of the KiBoxCockpit software you receive a loudspeakers message saying that a valid IP-Address for the KiBox has not been configured yet. -
Page 12: Setup Of A Measurement
Configuration Setup of a Measurement The following concept has been implemented into the software. The administrator (normally a technician in measurement technology with knowledge of indication measurements) prepares all sorts of basic settings (data extension *.kit) in a template file. This is carried out on the password protected administration level (delivery password: "kibox"). -
Page 13: Important Notes
Quick Guide KiBox To Go, Type 2893A… with KiBoxCockpit V3.1 Figure 7: Configuration user interface KiBoxCockpit, dialog field 4.6.1 Important Notes 4.6.1.1 Operation via Shortcuts As it is very awkward to use the mouse in the vehicle while the vehicle is moving a fast and easy handling mostly over the keyboard has been emphasized. -
Page 14: Administration
Configuration Figure 9: Correct use of the decimal separator 4.6.2 Administration Begin on the password protected administration level. The standard password is "kibox". Only administration defined signal types as well as their calculations can be used in the signal parameterization later on. New signal types can be defined by a right-click on the lettering "signal types“... - Page 15 Quick Guide KiBox To Go, Type 2893A… with KiBoxCockpit V3.1 Figure 10: Administration, Definition signal types and calculations It is mandatory to parameterize the signal type "crank angle“. The integrated software- oscilloscope on the right hand side helps you to find the correct settings. If you see a sinus similar signal relatively symmetrical to the X-shaft, while the engine is running, which increases the signal amplitude at increased crankshaft speed then it’s most probably a question...
-
Page 16: Engine
Configuration Figure 11: Administration, signal types, crank angle, settings 4.6.3 Engine Enter the engine geometry. The piston in offset is generally negative. Mind the right decimal separator (see chapter 4.6.1.3). Check the entire hub volume on the lower domain of the dialog. - Page 17 Quick Guide KiBox To Go, Type 2893A… with KiBoxCockpit V3.1 If you have parameterized several cylinder pressure signals to the reference cylinder (e.g. if you use two high pressure sensors) then TDC-determination last attached automatically occurs to the cylinder pressure signal.
-
Page 18: Data Visualization
Configuration To determine the TDC inside the vehicle press key "F9“, enter the loss angle, put the vehicle into the coasting mode without combustion at valid speed and press the space bar. Please mind that the speed change is as small as possible during the determination! This is easily achieved by driving downhill in the appropriate gear. -
Page 19: Data Output
Quick Guide KiBox To Go, Type 2893A… with KiBoxCockpit V3.1 Figure 14: Data display, edit register pages Any amount of register pages with display configurations can be created. The system load will not be increased as only the actual shown register is being provided with the measuring data at said time. - Page 20 Configuration It is also possible to save the original time data with a resolution of 312,5 kHz in a measuring file together with the crank angle data. Thus the do not measuring files get considerably larger. If you carry out any start-/stop measurement respectively any analysis with low speed then you avoid the storage of the time data! Figure 16: Data storage - Events...
-
Page 21: Check The Parameters
Quick Guide KiBox To Go, Type 2893A… with KiBoxCockpit V3.1 Figure 17: Data storage – Data files 4.6.8 Check the Parameters Using this last menu you can check the validity of your parameterization. This function can be called up at any time by pressing key "F2". -
Page 22: Measurement And Data Capture
Measurement and Data Capture Measurement and Data Capture To avoid any confusion the relevant measuring functions should be defined: Measuring: KiBox comprises the measuring signals, calculates the results, visualizes them and sends them to INCA and CAN OUTPUT, if configured. No data file is being created! 2. -
Page 23: Data Evaluation
Quick Guide KiBox To Go, Type 2893A… with KiBoxCockpit V3.1 Data Evaluation With key F10 you can load an open file and have it displayed. The measurement will be shown in the same layout as defined during the measuring. With the triangle on the right side of the screen you can add further signals and diagrams by means of Drag &... - Page 24 Data Evaluation Figure 19: Overlay layout A quick way to work with diagrams is to leave the left hand on the keyboard to attend the shortcuts and to use the right hand to carry out the desired activity. E.g. to display the complete measurement in the auto scale mode press "Ctrl+A"...
-
Page 25: Interfacing With The Engine Calibration System
Quick Guide KiBox To Go, Type 2893A… with KiBoxCockpit V3.1 Interfacing with the Engine Calibration System INCA The requirements for the INCA integration of the KiBox are INCA 6 (and higher) and an installed "KiBox INCA driver" (see chapter 2). - Page 26 Now you can start the hardware configuration from the main window by pressing the keys "Ctrl+F3". Since the automatic search of the KiBox is not assisted at present you have to add the KiBox by hand for the first time. Press the key "insert" and choose the "Kistler- KiBox-System" from the following list.
- Page 27 Quick Guide KiBox To Go, Type 2893A… with KiBoxCockpit V3.1 With F3 you can now initialize the hardware in INCA. This is carried out automatically as soon as you open an experiment. without If you want to open your experiment...
-
Page 28: Measurement
Interfacing with the Engine Calibration System 7.1.2 Measurement In the opened experiment you can use the variables which have been provided by the KiBox as usual. Please note that the scanning grid of the KiBox and e.g. ES590/ES591/ES690 vary. Generally the time grid 10ms and 100ms as well as the segment synchronous survey apply for the engine control variables ("synchro"... - Page 29 Quick Guide KiBox To Go, Type 2893A… with KiBoxCockpit V3.1 At the start of the INCA measuring data display respectively of the recording a so-called measuring mode is activated in the KiBox. This means the KiBoxCockpit display gets started, results are being calculated and transfused to the INCA.
- Page 30 Interfacing with the Engine Calibration System The following example gives you an idea how to define a trigger which starts capturing at 3000 rpm. Figure 25: Exaple capture at 3000 rpm You can use every measured signal as input (ECU or KiBox). Define the range you like to monitor with "const_low"...
- Page 31 Quick Guide KiBox To Go, Type 2893A… with KiBoxCockpit V3.1 CAN-Output Especially for other application tools than INCA, the opportunity to measure KiBox values by CAN will be very interesting. The characteristics from the CAN messages are defined by the units of measurement in so-called DBC-Files.
- Page 32 Interfacing with the Engine Calibration System Figure 28: Add CAN-Monitoring device Take care the transmission rate is set to 1 MBaud. The Port number (CAN1/CAN2) has to be the same as you connected to the hardware device. Figure 29: CAN configuration To connect the KiBox and the CAN-Monitoring-Device you can use a parallel twisted and screened cable with minimum two lines.
- Page 33 Quick Guide KiBox To Go, Type 2893A… with KiBoxCockpit V3.1 Figure 30: CAN cable with termination resistors To hook up the CAN please use just KiBox CAN1. This interface is not terminated! Page 32 2893A_002-514e-01.18...
