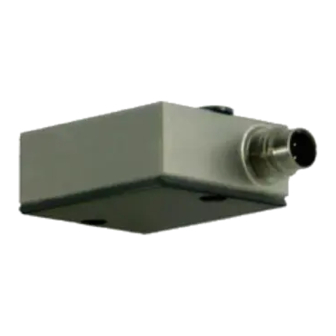

- Page 1 Instruction Manual K-Beam Accelerometers Types 8316A..., 8396A... ä 002-811e-10.21...
- Page 3 Information in this document is subject to change without notice. Kistler reserves the right to change or improve its products and make changes to the content without obligation to notify any person or organization of such changes or improvements.
-
Page 4: Table Of Contents
K-Beam Accelerometers Content 1. Introduction ............................4 2. Important information ........................5 2.1 For your safety ........................5 2.2 Precautions ..........................5 2.3 Disposal of electronic equipment ...................6 2.4 Accelerometers - Types ......................6 3. Product description ..........................8 3.1 Supplied Items........................9 4. Principles of operation........................9 4.1 Power and output configurations ..................11 4.2 Single-ended, unipolar output ....................11 4.3 Single-ended, bipolar output ....................12... - Page 5 Content 7. Operation............................29 7.1 Noise considerations ......................29 7.2 Accessory cables........................29 8. Calibration and maintenance ......................31 8.1 General..........................31 8.2 Care and cleaning ........................31 8.3 Calibration ..........................31 8.3.1 Calibration policy and requirements ...............32 9. Storage and transit considerations ....................33 10. Warranty ............................34 11.
-
Page 6: Introduction
To the extent permitted by law Kistler accepts no liability if this instruction manual is not followed or products other than those listed under Accessories are used. -
Page 7: Important Information
Important Information 2. Important information It is essential for you to review the following information, which is intended to ensure your personal safety when working with the K-Beam Accelerometers and contribute toward a long-fault-free service life. 2.1 For your safety This product has been manufactured in compliance with current valid safety regulations. -
Page 8: Disposal Of Electronic Equipment
Do not discard old electronic equipment in municipal trash. For disposal at end of life, please return this product to the nearest authorized electronic waste disposal service or contact your Kistler sales office for disposal instructions. 2.4 Accelerometers - Types This instruction manual summarizes the Kistler K-Beam Accelerometer product line, which includes the Type 8316A…... - Page 9 Important Information Type 8316A...TA Type 8316A...TB Type 8316A...AC Type 8396A... Fig. 1: K-Beam product line 002-811e-10.21 Page 7...
-
Page 10: Product Description
K-Beam Accelerometers 3. Product description All K-Beam accelerometers have integrated signal conditio- ning electronics. ƒ Types 8316A…TA and 8316A…TB feature a welded tita- nium housing with either an industry standard 4 pin, ¼–28 connector (TA) or integral PTFE jacketed cable (TB). The maximum temperature range is +125 °C (+260 °F) and the available output signal formats are bipolar 0±4 V (with temperature output), single-ended 2.5±2 V (with tempera-... -
Page 11: Supplied Items
Section 8 of this manual. 4. Principles of operation Most Kistler K-Beam accelerometer sensing elements consist of a very small inertial mass and flexure elements chemically etched from a single piece of silicon. The seismic mass is supported by flexure elements between two plates, which act as electrodes. - Page 12 K-Beam Accelerometers All K-Beam accelerometers provide an output signal similar to that produced by a piezoelectric accelerometer. Unlike a piezoelectric accelerometer, K-Beams are sensitive to static acceleration. Therefore, earth's gravity is a factor in the out- put signal and must be taken into account when mounting. As described earlier, K-Beam accelerometers produce an output when forces acting on a moveable element cause the element to change position.
-
Page 13: Power And Output Configurations
Principles of Operation 4.1 Power and output configurations Most K-Beam accelerometers are available with various power and output configurations, which are described in Sections 4.1.1 - 4.1.3 and in Table 1. Type Single- Single- Differential Tempera- Power ended, ended, ture output supply unipolar bipolar... -
Page 14: Single-Ended, Bipolar Output
K-Beam Accelerometers Fig. 4: Single-ended, unipolar and bipolar Type 8316A... and Type 8396A… configurations with the signal and power supply referenced to ground. See prod- uct data sheets for applicable pin designations. 4.3 Single-ended, bipolar output This option provides a zero voltage output at zero g input. -
Page 15: Differential Output
Principles of Operation 4.4 Differential output Units supplied with this option are designed for operation from a single polarity power supply. This option provides a differential output (see Fig. 5) where the output signal is provided on two wires. A higher effective sensitivity (X2) and zero volts at zero g input are among the characteristics of this option. -
Page 16: Installation
K-Beam Accelerometers Contact your sales representative or Kistler directly for specific application information. 5. Installation This section is divided into three sub-sections: ƒ Mechanical installation ƒ Mounting techniques ƒ Mechanical and electrical requirements (by Type) K-Beam accelerometers with special mounting requirements are further described in their appropriate sections. -
Page 17: Mounting Techniques
Petro Wax for sufficient moun- ting attachment. The Petro Wax recommended is Kistler Type 8432 (Katt & Associates Type P102, P.O. Box 623, Zoar, Ohio 44697 USA) or an equivalent. Wax can be used if it provides repeatable results after the unit has been removed and remounted. -
Page 18: Stud Mounting: Type 8396A
5.2.1 Stud mounting: Type 8396A... Type 8396A… has a KIAG 10-32 threaded hole for stud mounting. Most Kistler mounting studs are machined from Beryllium Copper for high strength and low modulus of elasti- city, coupled with high elastic limits. The stud is removable allowing both stud and adhesive mounting. -
Page 19: Type 8316Axxxxxacxx
Installation 5.3 Type 8316AxxxxxACxx 5.3.1 Electrical requirements Type 8316AxxxxxACxxx… is supplied in four electrical output versions as described in Section 3. The reader should refer to sensor datasheet if there are any questions regarding the identification of the unit's ordering key. This sensor requires either a regulated power supply or can operate from a 9-Volt battery. -
Page 20: Mechanical Installation
K-Beam Accelerometers Electrical Interface Type 8316A... Function Output Wire Color Type A0, B0 Type C0, D0 power power black return return yellow temp. output + output - white output + output + shield case case Table 2: Pigtail interface connections 5.3.2 Mechanical installation Type 8316AxxxxxACxx comes with a hard coat anodized aluminum outer housing to protect the sensing package and... -
Page 21: Types 8316Axxxxxtaxx, 8316Axxxxxtbxx
Installation Type 8522A is sized at 27 mm [1.06 in] per face and is made of an aluminum alloy with a black hard anodize finish. It is screw mounted. 25,3 [1.00] Fig. 7: Type 8522 mounting cube 5.4 Types 8316AxxxxxTAxx, 8316AxxxxxTBxx 5.4.1 Electrical requirements Types 8316AxxxxxTAxx and 8316AxxxxxTBxx are supplied in four electrical output versions as described in Section 3. -
Page 22: Mechanical Installation
K-Beam Accelerometers For Type 8316AxxxxxTAxx, power and signal connections are made directly to the 4 pin receptacle on the accelero- meter. Pin assignments for the connector and Pigtail wire assignment for the compatible 1592M1 cable are shown in Table 3 below. For Type 8316AxxxxxTBxx, power and signal connections are made directly to the integral cable. - Page 23 Installation The sensitive axis is perpendicular to the mounting surface. Refer to Section 5.1 for general information about proper mounting. For applications requiring measurements in more than a single-axis, a convenient optional accessory is avai- lable. The Type 8522 triaxial mounting cube provides a mounting method for up to three Type 8316A…...
- Page 24 K-Beam Accelerometers Fig. 9: Type 8316AxxxxxTBxx... dimensional drawings (in [mm]) 002-811e-10.21...
-
Page 25: Type 8396A
For Type 8396AxxxTA00, all electrical connections are made through a 9 pin Circular Male connector. Kistler supplies Type 1792AxxK01 mating cable (9 pin circular female connector to 9 pin sub connector, pos, L = 2 m) to be powered by the Type 5146A15 K-Beam power supply (see Section 6). -
Page 26: Mechanical Requirements
K-Beam Accelerometers Sensor Function Output Cable Type Cable Type Connector 1792A...K00 1792A...K01 Mini 9 pin AT, BT CT, DT pigtail 9 pin connector versions versions (wire color) D-Sub power power ground ground black X DC output white X DC output + Y DC output Y DC output + yellow... - Page 27 Installation Outline dimensions (in [mm]) AT, BT versions CT, DT versions 0.85 [21,6] 0.85 [21,6] 1.22 [31] 1.36 [34,5] 0.87 [22,1] 0.87 [22,1] 0.85 [21,6] 0.85 [21,6] 002-811e-10.21 Page 25...
- Page 28 K-Beam Accelerometers Fig. 10: Type 8396A... dimensional data (in [mm]) Fig. 11: Center of sensing element (in [mm]) 002-811e-10.21...
-
Page 29: K-Beam Power Supply
Maximum cable lengths, maximum cable load capacitances and minimum load resistances vary widely from application to application. Contact your local Kistler representative for details. For more information, please reference the Type 5210 data sheet or instruction manual. -
Page 30: Type 5146A15 15-Channel K-Beam Power Supply
K-Beam Accelerometers 6.2 Type 5146A15 15-channel K-Beam power supply Type 5146A15 is a convenient, easy-to-use power supply that provides an interface between single-ended, differential, single-axis or triaxial output capacitive accelerometers and measuring instruments. This 15-channel unit is powered from an external AC-DC adapter that provides +12 VDC to the chassis, and operates with a power input over 100-240 VAC or from another +12 VDC power source, such as a vehicle. -
Page 31: Operation
An aid in determining cable depending on measuring chain considerations is detailed in Appendix A. The most popular cables are listed in Table 6. Kistler uses a cable designation that indicates length by suffix coding. The cable designation 1592A2 is 2 meters long, for example. - Page 32 K-Beam Accelerometers Cable Designation Description 1578A2 Optional extension cable, 4 pin Microtech neg. to 4 pin Microtech positive, 2 m long 1578Asp Optional extension cable, 4 pin Microtech neg. to 4 pin Microtech positive, custom length 1592A2 Cable, 4 pin Microtech negative to 4 pin Microtech neg., 2 m long 1592A4 Cable, 4 pin Microtech negative to 4 pin...
-
Page 33: Calibration And Maintenance
8.3 Calibration All Kistler transducers are calibrated against standards that are traceable to the National Institute of Standards and Tech- nology (NIST). The sensitivity of a K-Beam system is stan- dardized to ±5 % of the stated nominal sensitivity. -
Page 34: Calibration Policy And Requirements
K-Beam Accelerometers Large mechanical shocks or other abuse may create a sensi- tivity shift or unit failure. It is recommended that the unit be recalibrated after exposure to environmental conditions beyond the specified limits. When the accelerometer is damaged, the output of the system will not move smoothly when exposed to acceleration changes and will exhibit discontinuities in the signal level. -
Page 35: Storage And Transit Considerations
Storage & Transit Considerations 9. Storage and transit considerations If the instrument is to be stored or transported for an extended period of time, please follow these safety precautions: ƒ The temperature should be maintained between –0 °C and 60 °C (–4 °F and 140 °F). ƒ... -
Page 36: Warranty
K-Beam Accelerometers 10. Warranty Please reference the Kistler Instrument Standard Product Warranty under Terms and Conditions for Sales and Service. 002-811e-10.21... -
Page 37: Declaration Of Conformity
Declaration of Conformity 11. Declaration of conformity 002-811e-10.21 Page 35... - Page 38 K-Beam Accelerometers 002-811e-10.21...
-
Page 39: Appendix
Appendix 12. Appendix Measuring chains Measure Connect Amplify Output Analyze Type 8316A … AC Type 8316A … TB Integral cable Integral pigtail customer supplied Read-out Type Type 8316A … TA 1592M1/1534A… 4 pin pos. 4 pin neg. Read-out pigtails customer supplied Type 8316A …... -
Page 40: Total Pages
K-Beam Accelerometers Measure Connect Connect Analyze Type 8396A... MEMS Type 1792A...K01 Type 1794, not supplied 9 pin neg. circular 9 pin neg. D-Sub 9 pin pos. D-Sub (3) BNC pos. | (2) banana jacks for output AT and BT only Type 8396A...
