HP 1820 Switch Series Quick Start Guide
The switch drawings in this document are for illustration only and may not match your particular switch model.
For more detailed instructions and information to set up your switch, view or download the Installation and Getting Started
Guide for your switch at www.hp.com/support/manuals.
1.
Unpack and check included parts.
2.
Prepare for installation. To avoid personal injury or product damage, review the "Safety Precautions" on
page 4.
3
. Power on and verify that Self-Test completes normally. For the 1820-24G,1820-24G-POE+,1820-48G, and 1820-48G-
POE+ switches, connect the power cord to the power connector at the back of the switch, and then into an electrical outlet.
For the 1820-8G and 1820-8G-POE+ switches, connect the AC/DC adapter power cord to the power connector at the back
of the switch, and then plug the AC/DC power adapter into an electrical outlet.

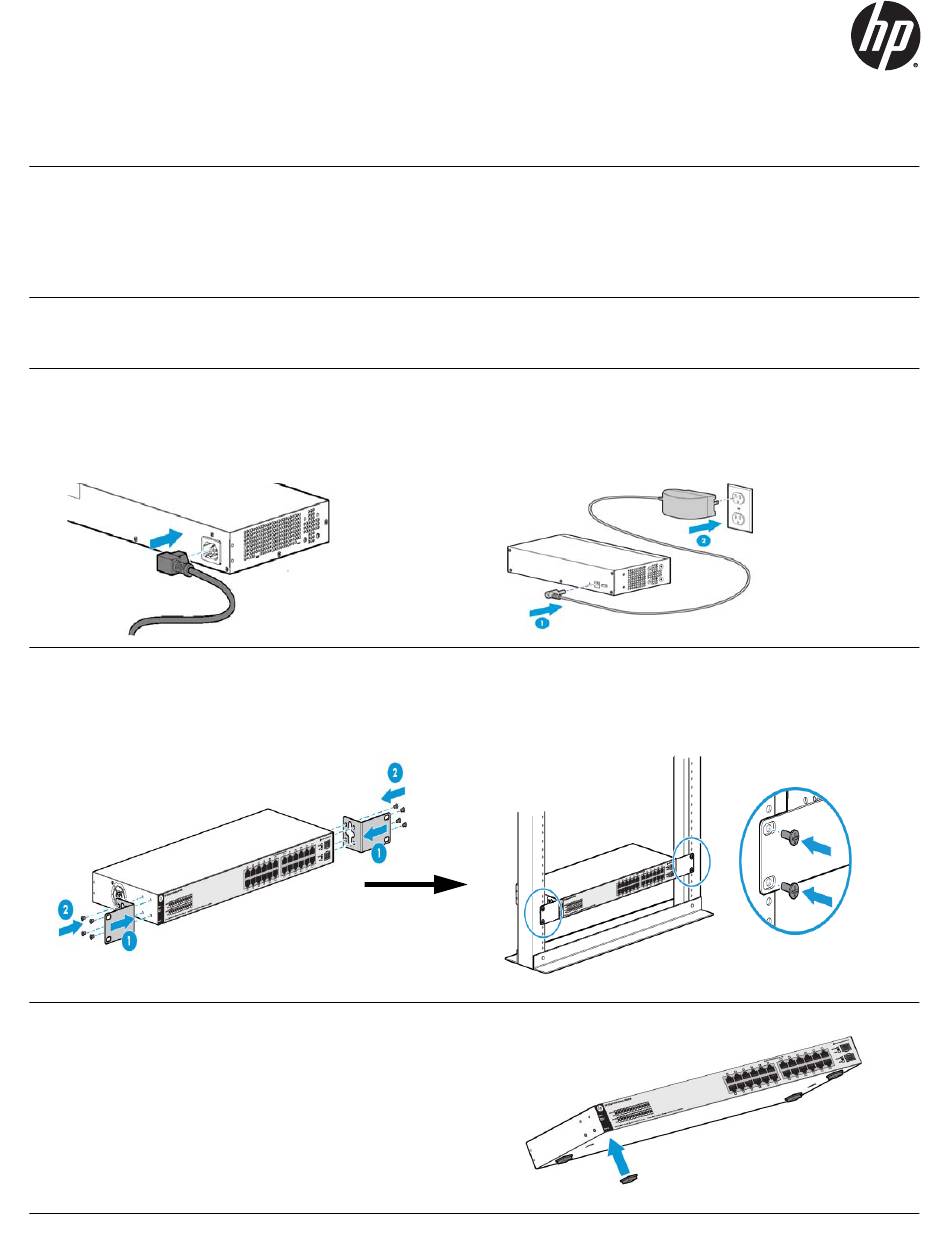

4. Mount the switch. Unplug the AC or DC power from the switch before mounting it.
Rack Mounting: Use a #1 Phillips (cross-head) screwdriver to attach the accessory kit brackets to the switch using the
eight 8-mm M4 screws. Then use the four number 12-24 screws to secure the brackets to the rack.
Table or Desktop Mounting: Attach the four self-
adhesive pads (included in the accessory kit) to the
bottom corners of the switch.
Documentation kit
Switch
Accessory kit (installation hardware)
AC power cord for 1820-24G,1820-24G-POE+,1820-48G
and 1820-48G-POE+ switch models or DC external power
adapter for 1820-8G and 1820-8G-POE+ switch models
1
