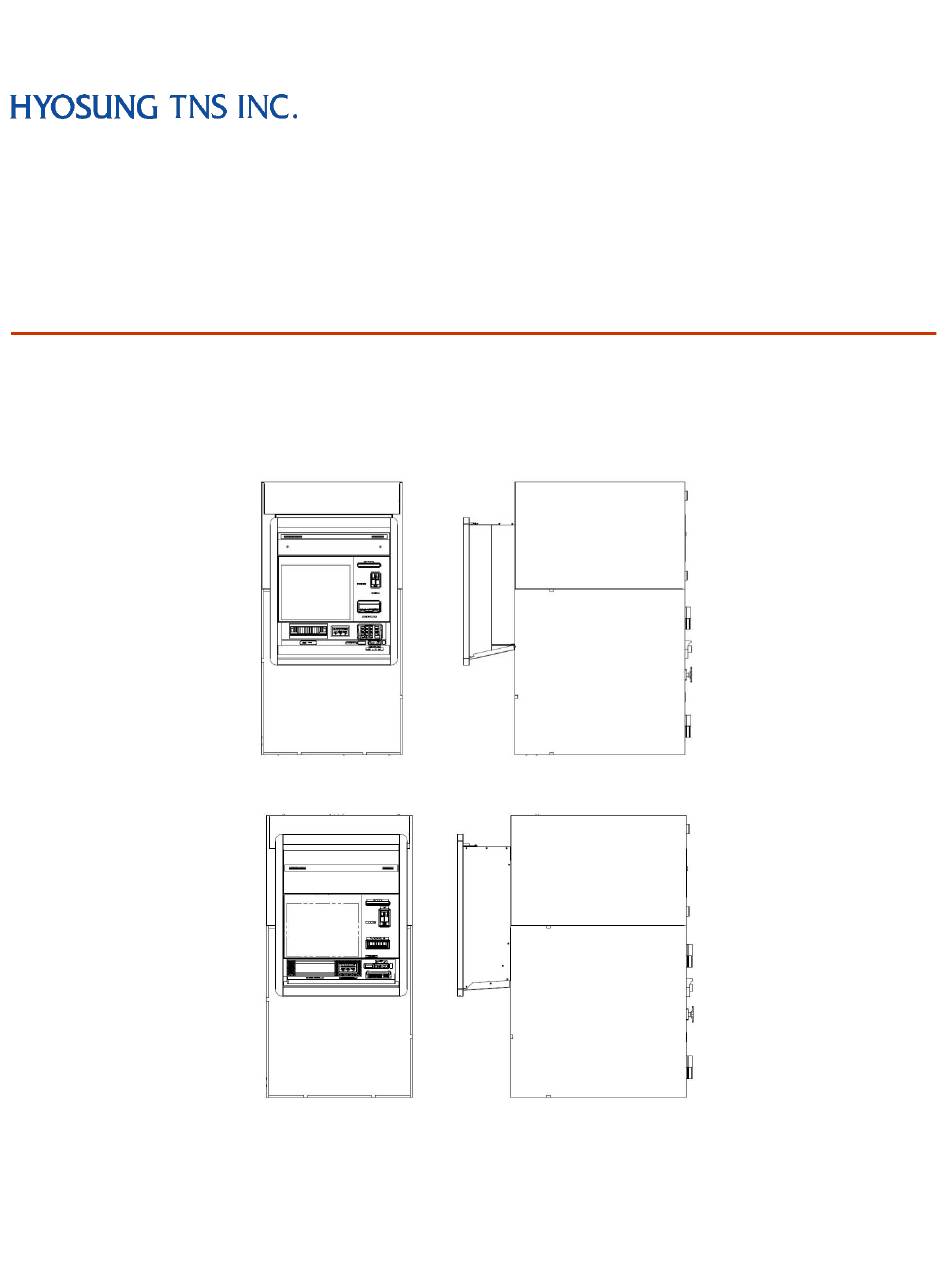

- Page 1 Installation Manual MONiMAX7800DR / 7800TR System V01.00.01 (2019.06.27) © Hyosung TNS Inc. All Rights Reserved.
-
Page 2: Revision History
Modified the ‘Depth’ values of MX7800TR in ‘Access For V01.00.01 2019/06/27 Device’ section. © Hyosung TNS All Rights Reserved. The content of this specification is protected by copyright laws. 2019. 06. 27. 2nd Release © Hyosung TNS Inc. All Rights Reserved. -
Page 3: Table Of Contents
Installation Condition and Space ........................3-1 Exterior ................................3-2 Access for Device ............................3-8 Service Area ..............................3-11 Chapter4. System Installation ....................... 4-1 Unpacking the ATM ............................4-1 Installation Frame............................4-2 Power Requirements ............................ 4-6 Notes ............................Notes-1 © Hyosung TNS, Inc. All Rights Reserved. -
Page 4: Chapter1. Preface
Hyosung TNS. It is the policy of Hyosung TNS to improve products as new technology, components, software, and firmware become available. Therefore Hyosung TNS reserves the right to change specifications without notice. -
Page 5: Terminologies
Tape Escrow Utility Cassette BATT S/W Battery Switch Camera Unit Control Electronics CCIM Cash & Check In Module Contactless Card Reader Cash Dispenser Unit Earphone Jack Voice Converter for Visually Disabled Persons (ADA) © Hyosung TNS, Inc. All Rights Reserved. - Page 6 On Screen Display Board Power Supply Personal Identification Number Panel Control Board Printer (mainly Receipt Printer) Switch Sensor and Indications Unit Service Provider Slip Printer (Receipt Printer) Text Terminal Unit (OPL or SPL) Vacuum Fluorescent Display © Hyosung TNS Inc. All Rights Reserved.
-
Page 7: Safety Precautions (English)
▪ Do not touch the equipment when it is running. ▪ The equipment can get extremely hot and may cause a burn. ▪ Make sure to close the cover before running the equipment. © Hyosung TNS, Inc. All Rights Reserved. - Page 8 DISPOSED OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS 3. FOR PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AN SHALL BE EASILY ACCESSIBLE 4. THE EQUIPMENT IS TO BE SECURED TO THE BUILDING STRUCTURE BEFORE OPERATION © Hyosung TNS Inc. All Rights Reserved.
-
Page 9: Précautions Pour La Sécurité (French)
• Ne pas retirer le couvercle. Seul le technicien d'entretien est autorisé à ouvrir le couvercle. • Ne pas toucher. Vous pouvez avoir un choc électrique. • Assurez-vous d'éteindre l'appareil lors de l'entretien de l'équipement. © Hyosung TNS, Inc. All Rights Reserved. - Page 10 INCORRECT. DISPOSER POUR UTILISATION DES BATTRIES SELON LES INSTRUCTIONS. 3. POUR LES APPAREILS RACCORDES, LA PRISE DOIT ETRE INSTALLEE PRES D’EQUIPEMENT POUR ÊTRE FACILEMENT ACCESSIBLE. 4. L’EQUIPEMENT DOIT ETRE SECURISE A LA STRUCTURE DU BATIMENT AVANT D'UTILISER. © Hyosung TNS Inc. All Rights Reserved.
-
Page 11: Related Document
► The related documents are listed as follows. If needed, please contact staffs of our technical support team and maintenance team. ▪ Operator Manual ▪ Service Manual ▪ OP Function Manual ▪ Error Code Manual ▪ VDM Manual © Hyosung TNS, Inc. All Rights Reserved. -
Page 12: Chapter2. Introduction
Allows tellers to calculate and close amount faster than the existing manual calculation. Allows easy and quick installation and maintenance. <Note!> The figures/photos/diagrams in this manual are for well understanding therefore they may be different from real machines. © Hyosung TNS Inc. All Rights Reserved. -
Page 13: Chapter3. Installation Information
3. The ATM should be mounted on concrete or other nonflammable surface only. 4. The floor must allow easy wheelchair access from the front or the side. 5. Space required for servicing the machine should be considered before installation. © Hyosung TNS, Inc. All Rights Reserved. -
Page 14: Exterior
Chapter3. Installation Information Installation Manual Exterior ► Front Elevation - MX7800DR - MX7800TR © Hyosung TNS, Inc. All Rights Reserved. - Page 15 Installation Manual Chapter3.Installation Information ► Side Elevation - MX7800DR Wall 10” type - MX7800TR 1) Wall 10” type © Hyosung TNS, Inc. All Rights Reserved.
- Page 16 Chapter3. Installation Information Installation Manual 2) Wall 13” type 3) Wall 15” type © Hyosung TNS, Inc. All Rights Reserved.
- Page 17 Installation Manual Chapter3.Installation Information ► Plan View - MX7800DR Wall 10” type Weight: 1,851.883lbs (840Kg) - MX7800TR 1) Wall 10” type Weight: 1,851.883lbs (840Kg) © Hyosung TNS, Inc. All Rights Reserved.
- Page 18 Chapter3. Installation Information Installation Manual 2) Wall 13” type 3) Wall 15” type © Hyosung TNS, Inc. All Rights Reserved.
- Page 19 Installation Manual Chapter3.Installation Information ► ISO View - MX7800DR - MX7800TR © Hyosung TNS, Inc. All Rights Reserved.
-
Page 20: Access For Device
Chapter3. Installation Information Installation Manual Access for Device ► Access For Device - MX7800DR Wall 10” type © Hyosung TNS, Inc. All Rights Reserved. - Page 21 Installation Manual Chapter3.Installation Information - MX7800TR 1) Wall 10” type © Hyosung TNS, Inc. All Rights Reserved.
- Page 22 Chapter3. Installation Information Installation Manual 2) Wall 13” type 3) Wall 15” type 3-10 © Hyosung TNS, Inc. All Rights Reserved.
-
Page 23: Service Area
Installation Manual Chapter3.Installation Information Service Area ► Side Elevation - MX7800DR 10” Wall: 6.7 inch (171.0mm) plinth available © Hyosung TNS, Inc. All Rights Reserved. 3-11... - Page 24 Chapter3. Installation Information Installation Manual - MX7800TR 1) 10” Wall: 7.3 inch (184.2mm) plinth available 2) 13” Wall: 5.3 inch (134.2mm) plinth available / 15” Wall: 5.3 inch (134.2mm) plinth available 3-12 © Hyosung TNS, Inc. All Rights Reserved.
- Page 25 Installation Manual Chapter3.Installation Information ► Minimum Installation - MX7800DR - MX7800TR 1) Wall 10” type © Hyosung TNS, Inc. All Rights Reserved. 3-13...
- Page 26 Chapter3. Installation Information Installation Manual 2) Wall 13” type 3) Wall 15” type 3-14 © Hyosung TNS, Inc. All Rights Reserved.
- Page 27 Installation Manual Chapter3.Installation Information ► Recommendation Installation - MX7800DR - MX7800TR 1) Wall 10” type © Hyosung TNS, Inc. All Rights Reserved. 3-15...
- Page 28 Chapter3. Installation Information Installation Manual 2) Wall 13” type 3) Wall 15” type 3-16 © Hyosung TNS, Inc. All Rights Reserved.
-
Page 29: Chapter4. System Installation
▪ Firmly close the vault door and lock the door by turning the knob completely. ▪ Only experienced staff members should move the heavy machine. ▪ Do not tilt the ATM when moving. © Hyosung TNS, Inc. All Rights Reserved. -
Page 30: Installation Frame
Chapter4. System Installation Installation Manual Installation Frame ► Bottom of ATM - MX7800DR © Hyosung TNS, Inc. All Rights Reserved. - Page 31 Installation Manual Chapter4.System Installation - MX7800TR © Hyosung TNS, Inc. All Rights Reserved.
- Page 32 Chapter4. System Installation Installation Manual ► Anchor Point - MX7800DR - MX7800TR © Hyosung TNS, Inc. All Rights Reserved.
- Page 33 ▪ Strength-high tensile (minimum ISO property class 8.8) Washers ▪ Type-flat, steel (as per DIN7349 or equivalent) ▪ Size-5/8 in. (M16) ▪ Outer diameter-no greater than 1.58 in. (40mm) ▪ Minimum thickness-0.2 in. (6mm) © Hyosung TNS, Inc. All Rights Reserved.
-
Page 34: Power Requirements
Installation Manual Power Requirements ► The power for the site ▪ 100~127Vac (±10%), Max 12A at 50/60(±3)Hz, Single-phase Note 1: Dedicated 20A Service ‐The HYOSUNG MX7800TR/DR ATM must have a dedicated 20A service. ► Power Consumption ▪ Idle (Min) HEATER OFF: 204W HEATER ON: 496W ▪... -
Page 35: Notes
Installation Manual Notes Notes © Hyosung TNS, Inc. All Rights Reserved. Notes-1...
