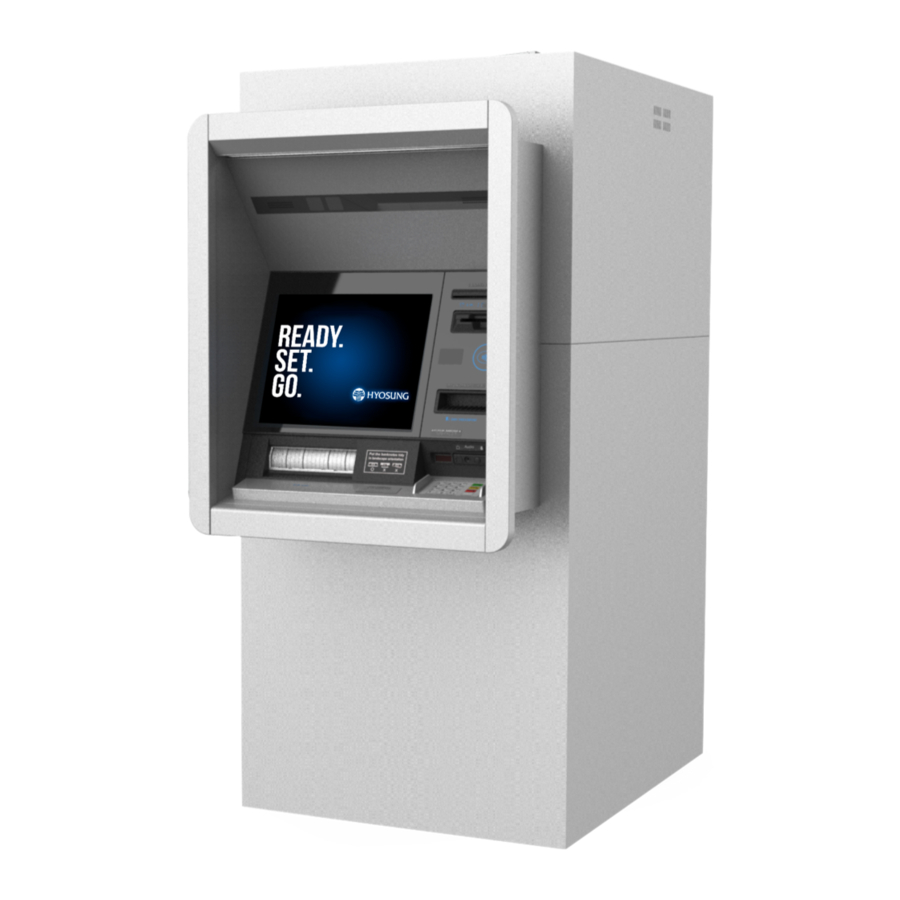

Installation Manual
MONiMAX8300D / 8300T System (BRM ver.)
V01.00.00 (2019.12.04)
© Hyosung TNS Inc. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MONiMAX8300D and is the answer not in the manual?

Questions and answers

Terry Eulenfeld
January 29, 2025

how do you install wall exxtensions

0

Subscribe to Our Youtube Channel

Related Manuals for HYOSUNG MONiMAX8300D

Summary of Contents for HYOSUNG MONiMAX8300D

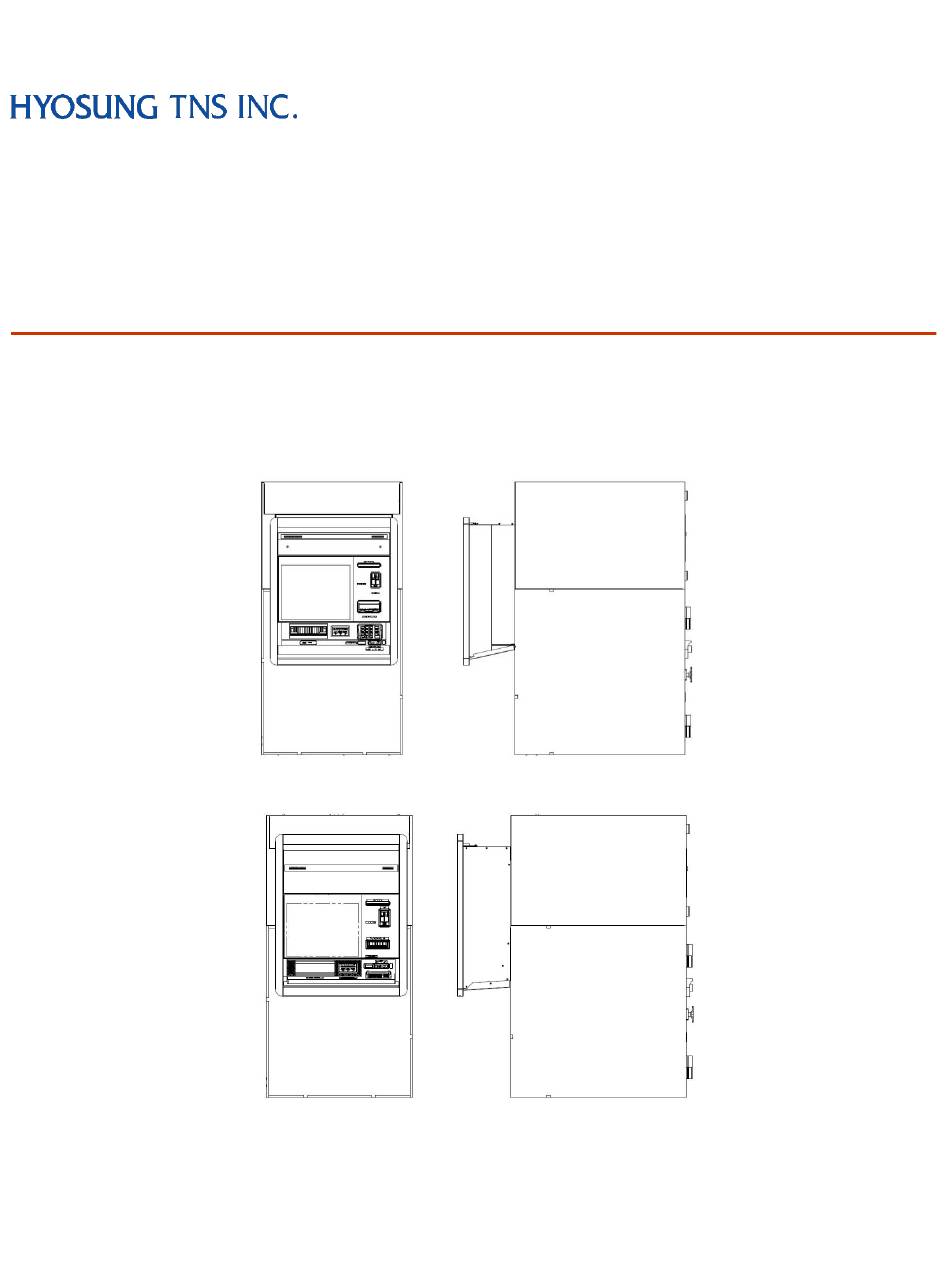

  • Page 1 Installation Manual MONiMAX8300D / 8300T System (BRM ver.) V01.00.00 (2019.12.04) © Hyosung TNS Inc. All Rights Reserved.
  • Page 2 Installation Manual – MX8300D / 8300T System (BRM ver.) Version Date Description of Change Chapter V01.00.00 2019/12/04 New Publication © Hyosung TNS All Rights Reserved. The content of this specification is protected by copyright laws. 2019. 12. 04. 1st Release © Hyosung TNS Inc. All Rights Reserved.

  • Page 3: Table Of Contents

    Installation Condition and Space ........................3-1 Exterior ................................3-2 Access for Device ............................3-10 Service Area ..............................3-15 Chapter4. System Installation ....................... 4-1 Unpacking the ATM ............................4-1 Installation Frame............................4-2 Power Requirements ............................ 4-6 Notes ............................Notes-1 © Hyosung TNS, Inc. All Rights Reserved.

  • Page 4: Chapter1. Preface

    Hyosung TNS. It is the policy of Hyosung TNS to improve products as new technology, components, software, and firmware become available. Therefore Hyosung TNS reserves the right to change specifications without notice.

  • Page 5: Terminologies

    Tape Escrow Utility Cassette BATT S/W Battery Switch Camera Unit Control Electronics CCIM Cash & Check In Module Contactless Card Reader Cash Dispenser Unit Earphone Jack Voice Converter for Visually Disabled Persons (ADA) © Hyosung TNS, Inc. All Rights Reserved.
  • Page 6 On Screen Display Board Power Supply Personal Identification Number Panel Control Board Printer (mainly Receipt Printer) Switch Sensor and Indications Unit Service Provider Slip Printer (Receipt Printer) Text Terminal Unit (OPL or SPL) Vacuum Fluorescent Display © Hyosung TNS Inc. All Rights Reserved.

  • Page 7: Safety Precautions (English)

    ▪ Do not touch the equipment when it is running. ▪ The equipment can get extremely hot and may cause a burn. ▪ Make sure to close the cover before running the equipment. © Hyosung TNS, Inc. All Rights Reserved.
  • Page 8 DISPOSED OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS 3. FOR PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AN SHALL BE EASILY ACCESSIBLE 4. THE EQUIPMENT IS TO BE SECURED TO THE BUILDING STRUCTURE BEFORE OPERATION © Hyosung TNS Inc. All Rights Reserved.

  • Page 9: Précautions Pour La Sécurité (French)

    • Ne pas retirer le couvercle. Seul le technicien d'entretien est autorisé à ouvrir le couvercle. • Ne pas toucher. Vous pouvez avoir un choc électrique. • Assurez-vous d'éteindre l'appareil lors de l'entretien de l'équipement. © Hyosung TNS, Inc. All Rights Reserved.
  • Page 10 INCORRECT. DISPOSER POUR UTILISATION DES BATTRIES SELON LES INSTRUCTIONS. 3. POUR LES APPAREILS RACCORDES, LA PRISE DOIT ETRE INSTALLEE PRES D’EQUIPEMENT POUR ÊTRE FACILEMENT ACCESSIBLE. 4. L’EQUIPEMENT DOIT ETRE SECURISE A LA STRUCTURE DU BATIMENT AVANT D'UTILISER. © Hyosung TNS Inc. All Rights Reserved.

  • Page 11: Related Document

    ► The related documents are listed as follows. If needed, please contact staffs of our technical support team and maintenance team. ▪ Operator Manual ▪ Service Manual ▪ OP Function Manual ▪ Error Code Manual ▪ VDM Manual © Hyosung TNS, Inc. All Rights Reserved.

  • Page 12: Chapter2. Introduction

    Allows tellers to calculate and close amount faster than the existing manual calculation. Allows easy and quick installation and maintenance. <Note!> The figures/photos/diagrams in this manual are for well understanding therefore they may be different from real machines. © Hyosung TNS Inc. All Rights Reserved.

  • Page 13: Chapter3. Installation Information

    3. The ATM should be mounted on concrete or other nonflammable surface only. 4. The floor must allow easy wheelchair access from the front or the side. 5. Space required for servicing the machine should be considered before installation. © Hyosung TNS, Inc. All Rights Reserved.

  • Page 14: Exterior

    Chapter3. Installation Information Installation Manual Exterior ► Front Elevation - MX8300D - MX8300T © Hyosung TNS, Inc. All Rights Reserved.
  • Page 15 Installation Manual Chapter3.Installation Information ► Side Elevation - MX8300D 1) Wall 10” type 2) Wall 13” type © Hyosung TNS, Inc. All Rights Reserved.
  • Page 16 Chapter3. Installation Information Installation Manual 3) Wall 15” type - MX8300T 1) Wall 10” type © Hyosung TNS, Inc. All Rights Reserved.
  • Page 17 Installation Manual Chapter3.Installation Information 2) Wall 13” type 3) Wall 15” type © Hyosung TNS, Inc. All Rights Reserved.
  • Page 18 Chapter3. Installation Information Installation Manual ► Plan View - MX8300D 1) Wall 10” type Weight: 1,851.883lbs (840Kg) 2) Wall 13” type © Hyosung TNS, Inc. All Rights Reserved.
  • Page 19 Installation Manual Chapter3.Installation Information 3) Wall 15” type - MX8300T 1) Wall 10” type Weight: 1,851.883lbs (840Kg) © Hyosung TNS, Inc. All Rights Reserved.
  • Page 20 Chapter3. Installation Information Installation Manual 2) Wall 13” type 3) Wall 15” type © Hyosung TNS, Inc. All Rights Reserved.
  • Page 21 Installation Manual Chapter3.Installation Information ► ISO View - MX8300D - MX8300T © Hyosung TNS, Inc. All Rights Reserved.

  • Page 22: Access For Device

    Chapter3. Installation Information Installation Manual Access for Device ► Access For Device - MX8300D 1) Wall 10” type 3-10 © Hyosung TNS, Inc. All Rights Reserved.
  • Page 23 Installation Manual Chapter3.Installation Information 2) Wall 13” type © Hyosung TNS, Inc. All Rights Reserved. 3-11...
  • Page 24 Chapter3. Installation Information Installation Manual 3) Wall 15” type 3-12 © Hyosung TNS, Inc. All Rights Reserved.
  • Page 25 Installation Manual Chapter3.Installation Information - MX8300T 1) Wall 10” type © Hyosung TNS, Inc. All Rights Reserved. 3-13...
  • Page 26 Chapter3. Installation Information Installation Manual 2) Wall 13” type 3) Wall 15” type 3-14 © Hyosung TNS, Inc. All Rights Reserved.

  • Page 27: Service Area

    Installation Manual Chapter3.Installation Information Service Area ► Side Elevation - MX8300D 10” Wall: 6.7 inch (171.0mm) plinth available © Hyosung TNS, Inc. All Rights Reserved. 3-15...
  • Page 28 Chapter3. Installation Information Installation Manual - MX8300T 1) 10” Wall: 7.3 inch (184.2mm) plinth available 2) 13” Wall: 5.3 inch (134.2mm) plinth available / 15” Wall: 5.3 inch (134.2mm) plinth available 3-16 © Hyosung TNS, Inc. All Rights Reserved.
  • Page 29 Installation Manual Chapter3.Installation Information ► Minimum Installation - MX8300D 1) Wall 10” type 2) Wall 13” type © Hyosung TNS, Inc. All Rights Reserved. 3-17...
  • Page 30 Chapter3. Installation Information Installation Manual 3) Wall 15” type - MX8300T 1) Wall 10” type 3-18 © Hyosung TNS, Inc. All Rights Reserved.
  • Page 31 Installation Manual Chapter3.Installation Information 2) Wall 13” type 3) Wall 15” type © Hyosung TNS, Inc. All Rights Reserved. 3-19...
  • Page 32 Chapter3. Installation Information Installation Manual ► Recommendation Installation - MX8300D 1) Wall 10” type 2) Wall 13” type 3-20 © Hyosung TNS, Inc. All Rights Reserved.
  • Page 33 Installation Manual Chapter3.Installation Information 3) Wall 15” type - MX8300T 1) Wall 10” type © Hyosung TNS, Inc. All Rights Reserved. 3-21...
  • Page 34 Chapter3. Installation Information Installation Manual 2) Wall 13” type 3) Wall 15” type 3-22 © Hyosung TNS, Inc. All Rights Reserved.

  • Page 35: Chapter4. System Installation

    ▪ Firmly close the vault door and lock the door by turning the knob completely. ▪ Only experienced staff members should move the heavy machine. ▪ Do not tilt the ATM when moving. © Hyosung TNS, Inc. All Rights Reserved.

  • Page 36: Installation Frame

    Chapter4. System Installation Installation Manual Installation Frame ► Bottom of ATM - MX8300D © Hyosung TNS, Inc. All Rights Reserved.
  • Page 37 Installation Manual Chapter4.System Installation - MX8300T © Hyosung TNS, Inc. All Rights Reserved.
  • Page 38 Chapter4. System Installation Installation Manual ► Anchor Point - MX8300D - MX8300T © Hyosung TNS, Inc. All Rights Reserved.
  • Page 39 ▪ Strength-high tensile (minimum ISO property class 8.8) Washers ▪ Type-flat, steel (as per DIN7349 or equivalent) ▪ Size-5/8 in. (M16) ▪ Outer diameter-no greater than 1.58 in. (40mm) ▪ Minimum thickness-0.2 in. (6mm) © Hyosung TNS, Inc. All Rights Reserved.

  • Page 40: Power Requirements

    Installation Manual Power Requirements ► The power for the site ▪ 100~127Vac (±10%), Max 12A at 50/60(±3)Hz, Single-phase Note 1: Dedicated 20A Service ‐The HYOSUNG MX8300D/8300T ATM must have a dedicated 20A service. ► Power Consumption ▪ Idle (Min) HEATER OFF: 204W HEATER ON: 496W ▪...

  • Page 41: Notes

    Installation Manual Notes Notes © Hyosung TNS, Inc. All Rights Reserved. Notes-1...

This manual is also suitable for:

Monimax8300t
