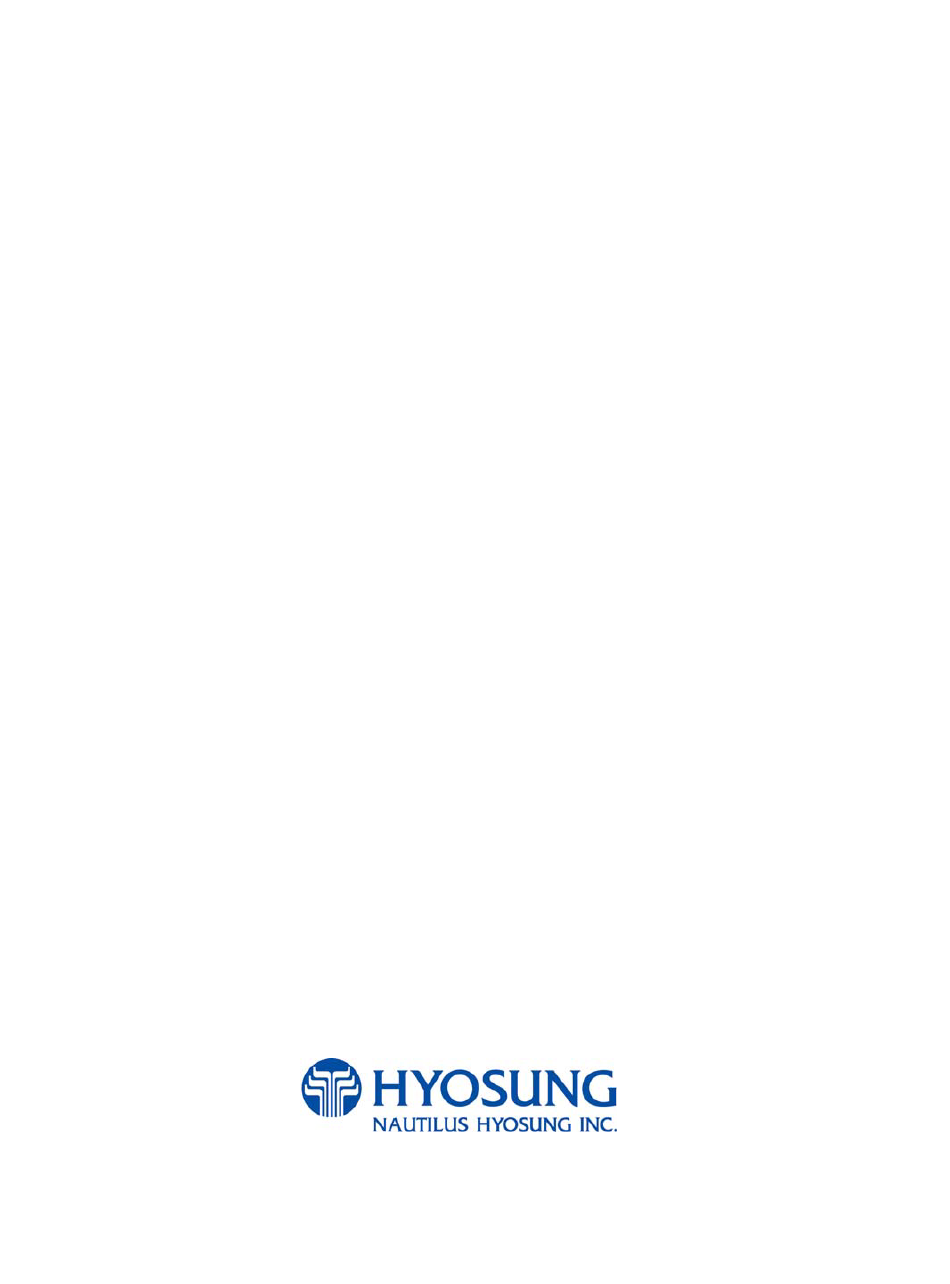

- Page 1 MoniMax7600 (Rear Load) Installation Manual Copyrightⓒ 2010 Nautilus Hyosung Inc. All right reserved...
-
Page 2: Table Of Contents
MoniMax7600 Installation Manual Table of Contents Warning Signs Common precautions for safety ····················································································· 3 Description of Warning signs ························································································· 4 Packing Dimensions On-Site Packing Dimensions ···························································································· 5 Installation Information Installation Condition and Space ···················································································· 6 Tools required for installation ························································································· 6... -
Page 3: Warning Signs
MoniMax7600 Installation Manual Warning Signs Common precautions for safety Noncompliance with safety precautions mentioned in this manual can result in bodily injury and/or product damage. This warning symbol is used along with appropriate warning messages. And it is also used to denote that the written text is related to safety. -
Page 4: Description Of Warning Signs
MoniMax7600 Installation Manual Description of Warning Signs Sign Description Risk Of Electric Shock • Do not remove cover. Only a maintenance engineer should open the cover. • To avoid risk of electric shock, do not touch. • Make sure to turn off the power before servicing the equipment. -
Page 5: Packing Dimensions
MoniMax7600 Installation Manual Packing Dimensions On-Site Packaging Dimensions The design of packing used on below picture is structured for shipping of MX7600 by load or air/sea freight. The dimension of the out box is ‘H 1780mm / W925mm / D1335mm’. -
Page 6: Installation Information
MoniMax7600 Installation Manual Installation Information Installation condition and space Following conditions should be met before installing equipment. ● Temperature should be between 41~104°F (operating), 14~140°F (storage). ● Relative humidity should be between 25~85% (operating) / 10~90% (storage) ● Avoid locations where intense direct light is reflected off the LCD screen. -
Page 7: System Installation
MoniMax7600 Installation Manual System Installation Unpacking the System Unpack the machine on top of the palette. ● Cut the straps that are fastened around the box with a knife. (refer to Fig.2) (Be careful when cutting the straps.) ● Use an appropriate tool to remove the nails from the palette. (refer to Fig.3) ●... - Page 8 MoniMax7600 Installation Manual Fig.4...
-
Page 9: Adjusting The System Height
MoniMax7600 Installation Manual Adjusting the System Height System heights can be adjusted by adjustor bolt ● Lower the height as much as possible while making it as level as possible. ●.Adjust the height of the adjustor while keeping the distance from the bottom of the safe between 98~113 mm [3.86 ~ 4.45 inch]. - Page 10 MoniMax7600 Installation Manual BNA Caster can be adjusted in proportion to the height of the adjustor. ● Unfasten 4 bolts marked in below picture and adjust the BNA caster. (Distance of the holes is 3mm [0.12]) ● Adjust the BNA caster in proportion to the height of the adjustor and it should be lower by 3~5mm [0.12 ~ 0.20] than the height of the adjuster.
-
Page 11: Clearance Information Terminal Dimensions
MoniMax7600 Installation Manual Clearance Information Terminal Dimensions The following diagrams show the dimensions of MX7600. Fig.5 Dimension of MX7600 (Front View) - Page 12 MoniMax7600 Installation Manual Fig.6 Dimension of MX7600 (Side View)
-
Page 13: Installation And Service Clearances
MoniMax7600 Installation Manual Installation and Service Clearance ● Following diagram is describing the areas required for installing and servicing the MX7600. Fig.7 Installation space #1 (Plan view) - Page 14 MoniMax7600 Installation Manual Fig.8 Installation space #2 (Side view) NOTE: All the unit in the dimension is millimeter and [ ] is inch scale. Hyousng recommends it is more convenient for your service personnel to have enough maintenance space as described above to service this ATM machine...
-
Page 15: Precautions
MoniMax7600 Installation Manual Precautions MX7600 has system battery back up units as optional itself to grantee customers transaction safety when losing power status. This function will proceeding automatic safe shut down either. But we are recommending to use UPS system for power sourcing to ATM.
