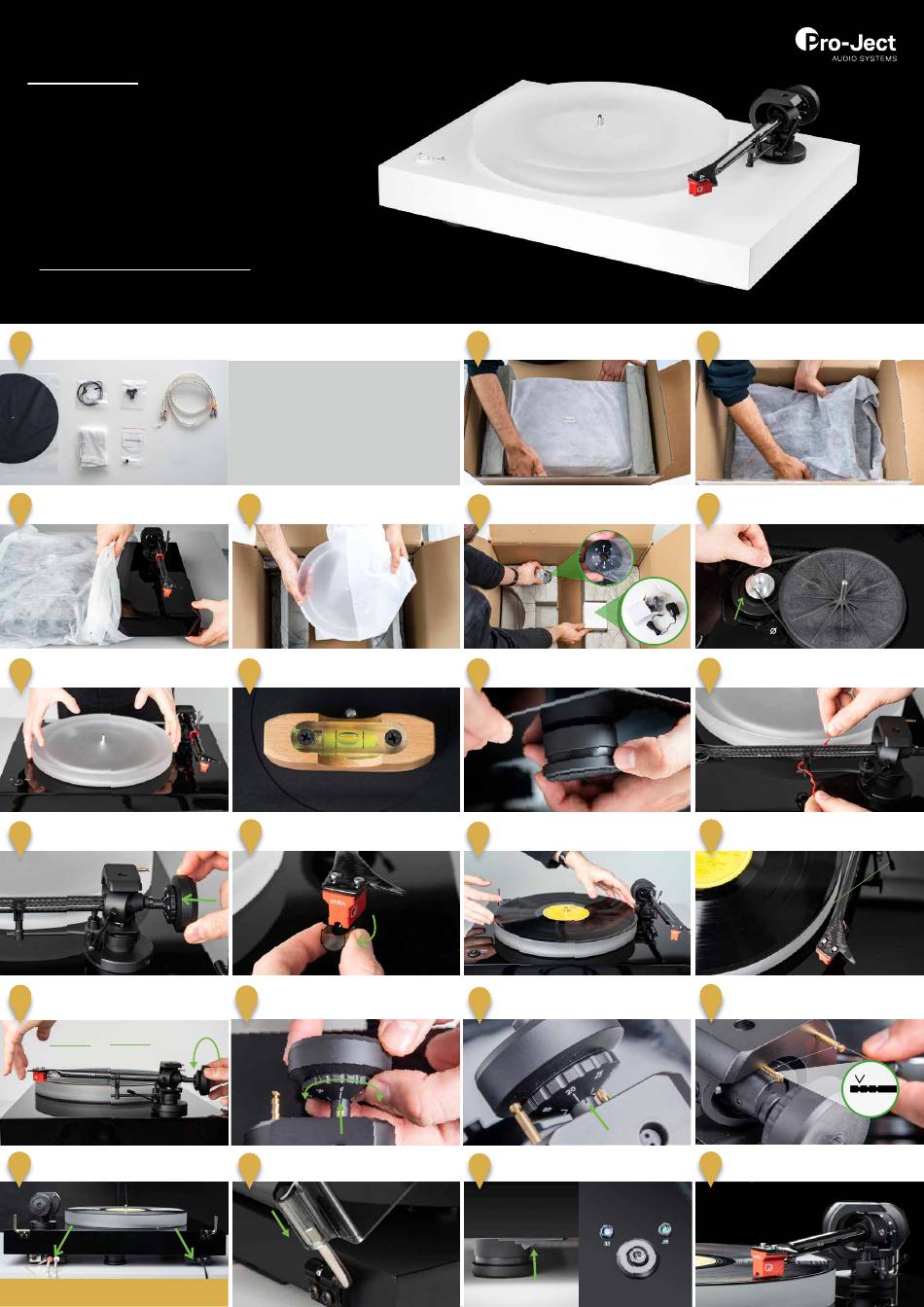

X2 B
Setup Guide
Getting started:
• Make sure to have enough space to unpack your turntable.
• Always unpack and set up in a clean environment.
• Please Do NOT throw away the packaging! If you need
service or want to return your product, please send it
in the original packaging including all inserts. In case of
damage due to alternative packaging your dealer cannot
guarantee a full refund.
• complete manual:
www.project-audio.com/en/product/x2-b
1
Unpack all items from accessory bag:
a) b)
c)
f)
e)
4
Carefully remove the covering.
8
Put the platter on the turntable.
12
Put the counterweight in place.
16
Balance the tonearm by turning the counter-
weight forwards and backwards on the rod.
0°
20
Plug in power supply and Connect it E (d)*.
Yellow cable marks to the amplifier.
* True Balanced Connect it E [Mini-XRL-Cable] available separately.
More information on the back of this setup paper.
a) Felt mat
d)
b) Standard flat belt
(33/45 RPM)
c) Adapter for 7" singles / Allen key
d) Connect it Phono E cable
e) Gloves
f) Anti Skating Weight
5
Unpack the platter.
9 The turntable should always be placed on
a flat surface. Check with a spirit level*.
*a spirit level can be purchased separately
13
Remove the stylus protection cover.
17 Hold the counterweight and set the dial to
'0' by ONLY turning the dial to the marker.
21
Unpack dust cover and install it.
2
Remove dust cover carton from the box.
& round belt
(78 RPM)
6 Unpack the counterweight and
power supply from the buttom inserts.
10 10 If necessary, level the turntable by
adjusting the feet.
14
Put a record on the platter.
18
Turn the WHOLE counterweight
counterclockwise until the scale reads 23.
22
Turn the motor on/off [under the chassis]
Select your playback speed with the selector.
3
Lift the wrapped turntable out of the box.
7
Put the flat drive belt (b) on the pulley
and sub-platter.
Large pulley
11
Remove tonearm twist tie.
15
Carefully place the tonearm between
platter and armrest and lower the tonearm lift.
Lower the tonearm with the lift.
19
Put the loop of the Antiskating
weight (f) in the outer groove.
23
Connect to your hifi-system and
have fun with music!
45/78
33
for round belt (78 RPM)
