EZ-SERV® Shelf-Mounted Multi-System Dispenser (DS101)
SETTING UP YOUR PRODUCT
1.
ITEM # DSL001
ITEM # DSP001-s
2.
ITEM # DSM001
3.
ITEM # DSM007
4.
5.
SCREWS
6.
Before setting up, consult your contractor on what to use based on your
shelf material. Also, make sure that the total weight of all dispensers
and products contained is within the shelf's capacity.
Carefully remove all parts from packaging and poly bags. Before
assembling, make sure you have all the parts listed below. If any piece
is missing, please call +1 (847) 763 1215.
a.
Lid
b. 1.5 oz. Portion Wheel
c. False Chamber
d.
Container
e. Label Holder
f. Handle
g.
Knob
If the false chamber (c) is installed in the container, gently pull it out
and set aside.
Refer to Figure A. Drop the portion wheel (b) into the allotted space at
the front of the container (d). Align all the holes (on container and
wheel).
Push the handle (f) through the front, all the way to the back hole.
At the tip of the handle is a hole for the R clip. Insert the straight side
of the R clip (i) through this hole. See Figure B. A portion of the metal
handle will rest under the middle ridge.

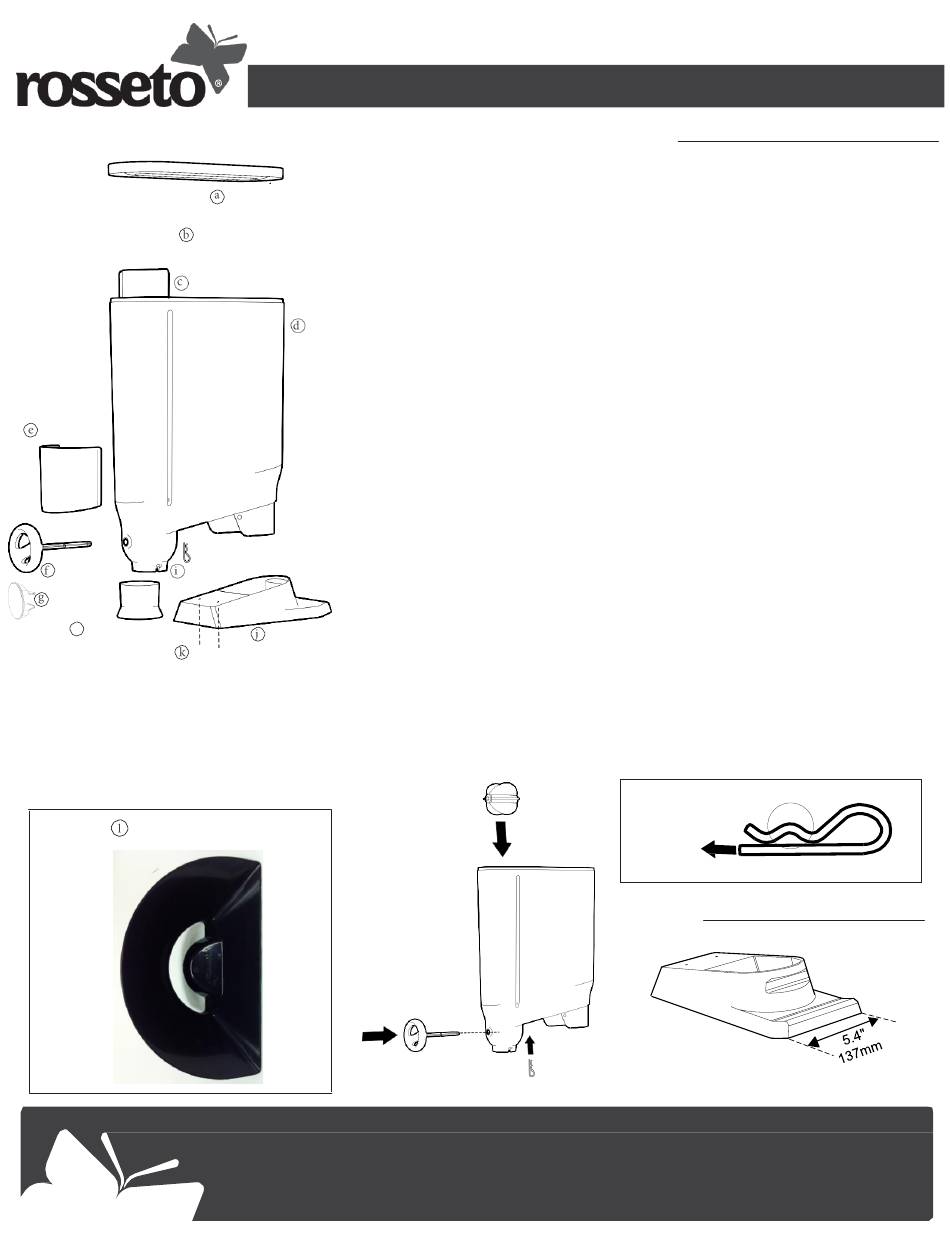

Figure A
Please contact customer support at (847)763-1215 and we'll be
happy to assist with any assembly questions, comments or concerns.
