rosseto EZ-SERV EZ333 Manual

EZ333: X3, 0.65 Gal | EZ534: X5, 0.65 | Gal EZ523: X1, 1.3 Gal | EZ524: X2, 1.3 Gal | EZ525: X3, 1.3 Gal | EZ527: X5, 1.3 Gal

SETTING UP YOUR PRODUCT

1. Carefully remove all parts from packaging and poly bags.
2. Make sure you have all parts listed before discarding packaging.
• 1 Metal Bracket
• Depending on your model, 1-5 Containers each one with:
a. Lid
b. 1, 2, 3 & 4 tsp. Portioned Scoops and Funnel
c. PRO-6W Silicon Portion Wheel (1 oz.)
d. PRO-6SM Portion Wheel (1 tbsp.)
e. Container
f. Label Holder
g. Handle
3. Consult your contractor about what mounting hardware (not included) to use,
depending on the type of wall you have. See Page 2 for bracket dimensions.
4. Mount EZ-SERV® metal bracket where desired, making sure it is affixed
securely to the wall.
5. Fill containers with desired dry product and seal with the lid.
6. Hold the container above the stand with the handle facing you. Carefully lower
the container down to the metal opening, tilted at an angle that allows the
handle to clear through first. The back of the container has a small notch that
aligns with an indent on the bracket to prevent movement from side to side.
7. Once the handle is cleared through the metal opening, you may tilt the
container carefully back to a full upright position. Then, gently set the container
down directly on the stand.
8. Repeat Steps 5 through 7 for the remaining containers.
9. Attach label holder (d) to bracket as shown in FIGURE (A).
10. Dispense as you please!
NEED ASSISTANCE?

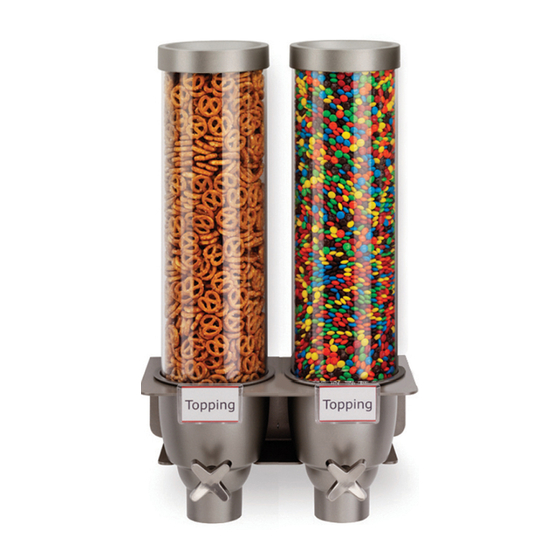

EZ-SERV® Wall Mount Dispenser
EZ538: X1, 2 Gal | EZ540: X1, 3.5 Gal | EZ574: X5, 2.5 Gal
METAL BRACKET
Please contact our customer service support at (847) 763-1215
and we'll be happy to assist with any assembly questions,
comments, or concerns.
ROSSETO
Visit our website at www.rosseto.com
a. LID:
ITEM # EZL015
b. ITEM #:
EZP028
e. CONTAINER SHELL
ITEM # EZC015
Disclaimer: Acrylic container
will come with transparent
plastic film wrap. Please
remove before use.
f. LABEL HOLDER
ITEM # EZM036
g. HANDLE
ITEM # EZH010
FIGURE A
NOTE: Recommended label size is 2.35x1.4 IN
® 3714 Jarvis Avenue, Skokie, IL 60076
d. ITEM #:
c. ITEM #:
EZP022
EZP021
