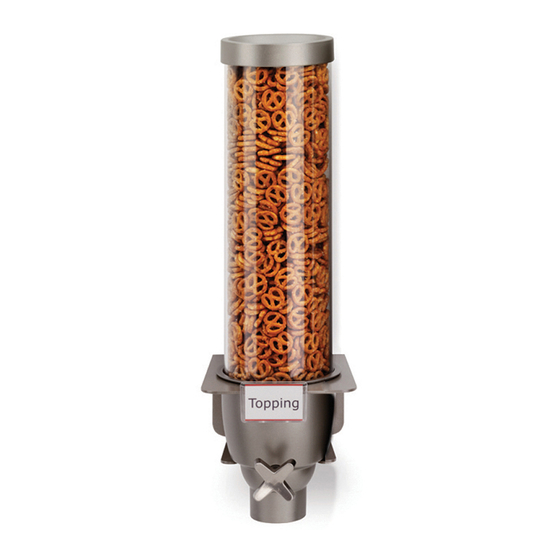

rosseto EZ-SERV 1W Quick Start Manual

SERVING SOLUTIONS

SETTING UP YOUR PRODUCT

1. Carefully remove all parts from packaging and poly bags.
• 1 Metal Bracket
• Depending on your model, you will have 1, 2, 3, 4 or 5 EZ-SERV® containers, each with
a. Lid
b. EZP004 1 Oz Portion Wheel
PRO6SM 1 Tsp Portion Wheel
c.
d. EZP012 1 Tsp Portion Wheel
2. Make sure you have all parts before discarding packaging.
3.
Consult your contractor about what mounting hardware (not included) to use,
depending on the type of wall you have.
Mount EZ-SERV®
4.
securely to the wall.
6mm / 0.25"
5.
Fill container with desired product and seal with the lid.
Hold container above the stand with the handle facing you. Carefully lower the
6.
container down to the metal opening, tilted at an angle that allows the handle to
clear through first. Note: The back of the container has a small key that aligns with a
bracket notch.
Once the handle is cleared through the metal opening, you may tilt the container
7.
carefully back to a full upright position. Then, gently set the container down directly on
the stand.
8. Place handle clip on the back end of the handle shaft. Make sure it fits snugly into place.
9. Repeat steps 5 thru 8 for the remaining containers
10.
Attach the label holders (f) as shown in Figure A.
11.
Dispense as you please!
1
NEED ASSISTANCE?
EZ-SERV
metal bracket where
60mm
2.4"
6mm / 0.25"
Figure A
1. Hold label holder horizontally beneath the bracket., above the steel handle.
2. Slide the label holder forward into the slot alloted. There are 2 small wings on the back
portion that will glide over the metal until you can lock it into position.
2
®
1W/2W/3W/3SW/4W/5W/5SW
e. Container
f. Label Holder
c
g. Handle Clip
h. Handle
desired, making sure it is affixed
6mm / 0.25"
3. Hold the bottom portion of the label holder
and pull gently until it clicks into place.
4. Insert the desired label.
3
NOTE:
Recommended label size is 60 x 35 mm / 2.35" x 1.4"
Please contact our customer support at (847)763-1215 and we'll be
happy to assist with any assembly questions, comments or concerns.
ROSSETO 3600 W. Pratt Avenue. Lincolnwood, IL 60712
®
a
b
e
d
g
ITEM # EZM056
60mm
2.4"
6mm / 0.25"
Visit our website at: www.rosseto.com
ITEM # EZL015
ITEM #
EZP004 / PRO6-SM / EZP012
ITEM # EZC014
f
ITEM # EZM036
h
ITEM # EZH012
60mm
2.4"
6mm / 0.25"
