EZ-SERV

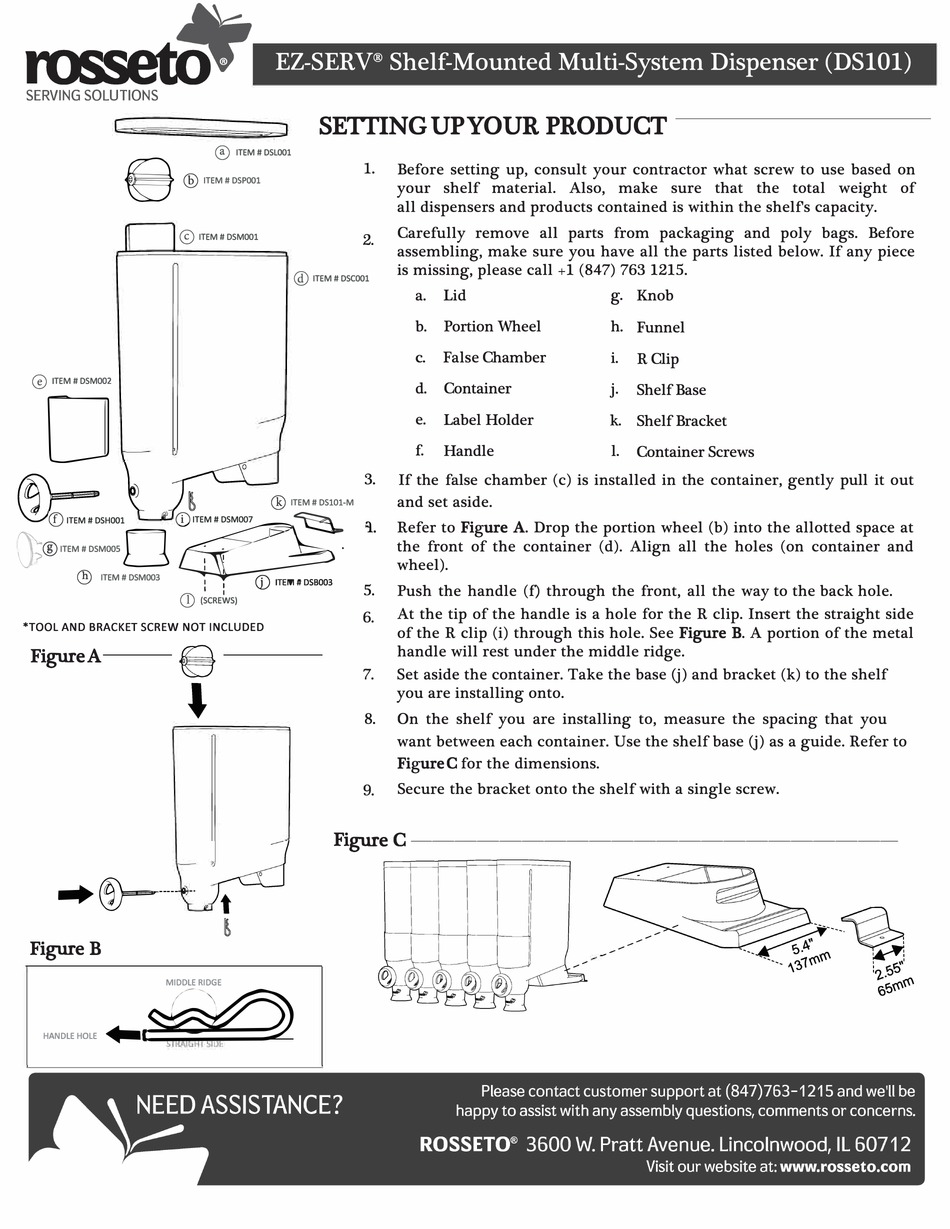

SETIING UPYOUR PRODUCT
®
ITEM # DSLOOl
1.
ITEM# DSPOOl
ITEM# DSMOOl
2.
ITEM# DSCOOl
@
3.
® ITEM# DS101-M
�
:i.
5.
(SCREWS)
I :
6.
7.
8.
9.
Fi gur e C----------------------

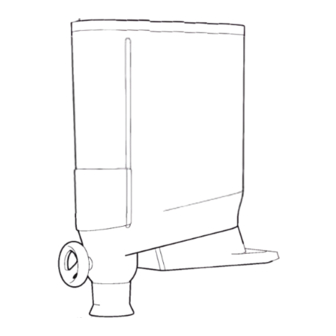

Shelf-Mounted Multi-System Dispenser (DSIOI)
Before setting up, consult your contractor what screw to use based on
your shelf material. Also, make sure that the total weight of
all dispensers and products contained is within the shelfs capacity.
Carefully remove all parts from packaging and poly bags. Before
assembling, make sure you have all the parts listed below. If any piece
is missing, please call +1 (847) 763 1215.
a. Lid
b. Portion Wheel
C. False Chamber
d. Container
e. Label Holder
£
Handle
If the false chamber (c) is installed in the container, gently pull it out
and set aside.
Refer to Figure A. Drop the portion wheel (b) into the allotted space at
the front of the container (d). Align all the holes (on container and
wheel).
Push the handle (f) through the front, all the way to the back hole.
At the tip of the handle is a hole for the R clip. Insert the straight side
of the R clip (i) through this hole. See Figure B. A portion of the metal
handle will rest under the middle ridge.
Set aside the container. Take the base
you are installing onto.
On the shelf you are installing to, measure the spacing that you
want between each container. Use the shelf base
FigureC for the dimensions.
Secure the bracket onto the shelf with a single screw.
g. Knob
h. Funnel
i.
RClip
j .
Shelf Base
k.
Shelf Bracket
1. Container Screws
(j)
and bracket (k) to the shelf
(j)
as a guide. Refer to
