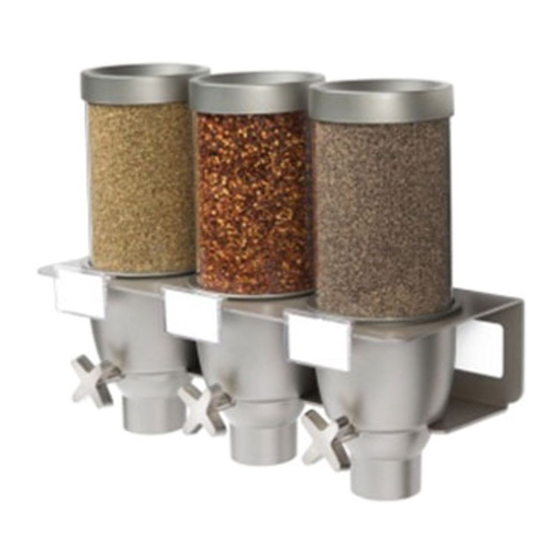

rosseto EZ-SERV 3SW Quick Start Manual

SETTING UP YOUR PRODUCT

1.
SERVING SOLUTIONS
Carefully remove all parts from packaging and poly bags.
• 1 Metal Bracket for mall mounting
• Depending on your model, you will have 1, 2, 3, 4 or 5 EZ-SERV
with:
a. Lid
b. EZP02 l 1 Oz Portion Wheel
EZP022 1 Tbsp Portion Wheel
C.
1
d. EZP028 funnel
2. Make sure you have all parts before discarding packaging.
3. Consult your contractor about what mounting hardware (not included) to use,
depending on the type of wall you have.
Mount the EZ-SERV
4.
securely to the wall.
5.
Fill contamer with desired product and seal with the lid.
6. Hold container above the stand with the handle facing you. Carefully lower the
container down to the metal opening, tilted at an angle that allows the handle to
clear through first. Note: The back of the container has a small key that aligns with a
bracket notch.
Once the handle is cleared through the metal opening, you may tilt the container
7 .
carefully back to a full upright position. Then, gently set the container down directly on
the stand
Repeat steps 5 thru 7 for the remaining containers
8.
g . Attach the label holders (f) as shown in Figure A.
10. Dispense as you please!
FIGUREA
'1"' I ·i --.....
&' 1"1
EZ-SERV
+
4 scoop wheels
® metal bracket where desired, making sure it is affixed
K
10Jmm/4•'
60mm
2.41. - - - ·
6mm/0.25 n
1. Hold Label Holder horizontally against the metal bracket.
2. Holding on to the back of the bracket with one hand, push the Label Holder into the
bracket. Label holder will lock in.
® 3SW/5SW
___________________ G>
® containers, each
Container Shell
e.
£
Label Holder
G
9
Handle
g.
ITEM#
EZP022
NOTE:
Recommended label size is 60 x 35 mm / 2.35" x 1.4"
Please contact our customer support at (847)763-1215 and we'll be
happy to assist with any assembly questions, comments or concerns.
® 3714 Jarvis Avenue, Skokie, IL 60076
ROSSETO
@J
�
@ij
ITEM#
EZP028
HANDLE�
(g)
ITEM # EZH0l0
6mm/0.25"
Visit our website at: www.rosseto.com
6-WING I OZ PORTION WHEEL
FULL CONTAINER
CONTAINER SHELL
LABEL HOLDER
LID
, n Mmw"
ITEM# EZP021
ITEM # EZC018
ITEM# EZC017
CJ r7:\
\.Y ITEM # EZM036
�
