Summary of Contents for Topdon ArtiDiag SU

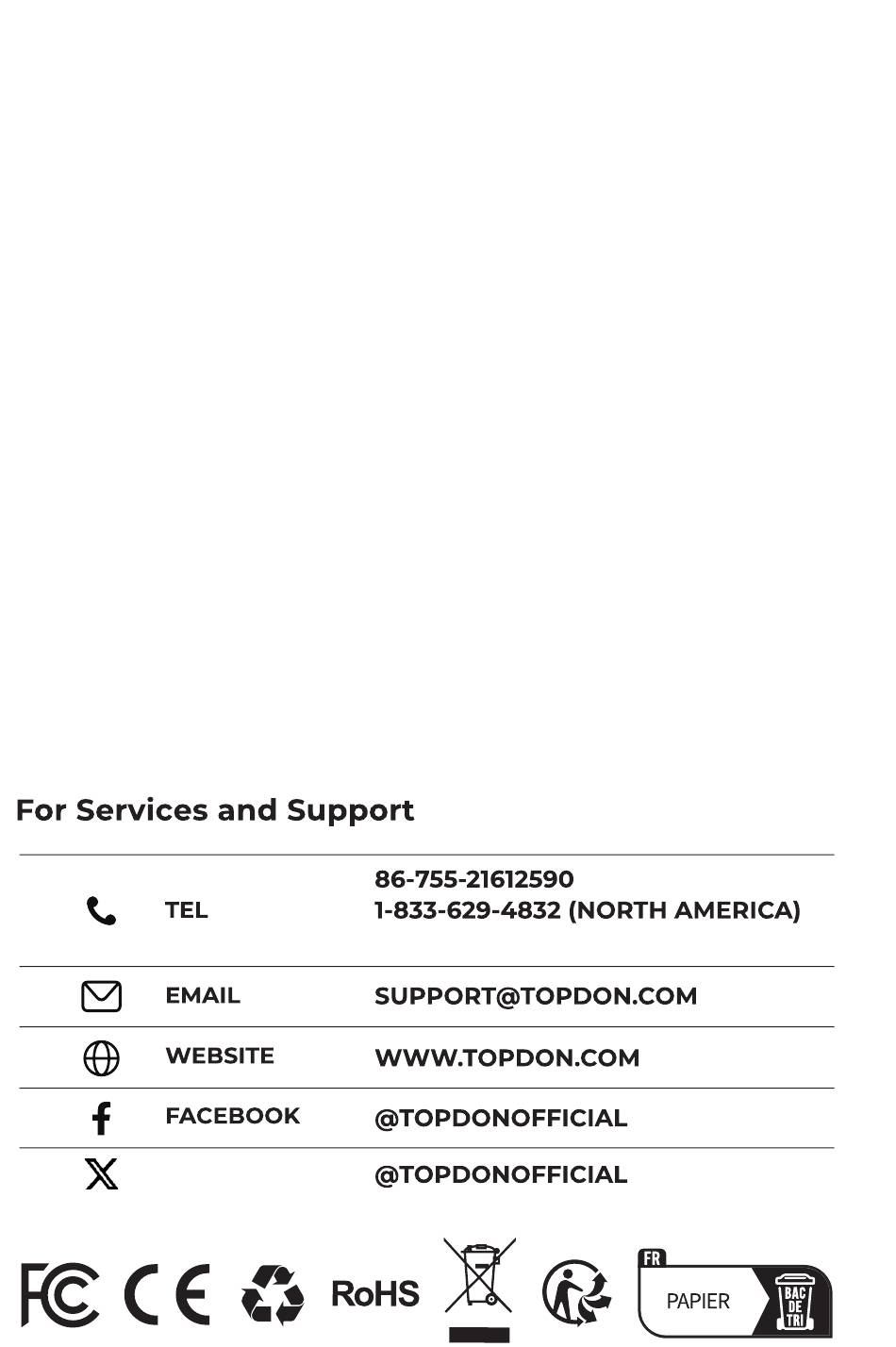

- Page 1 34-930-038094 (EUROPE)
- Page 2 ArtiDiag SU Professional Diagnostic Tool USER MANUAL...
-
Page 3: Table Of Contents
CONTENTS Welcome ......................1 About ......................... 1 What's Included ..................1 Compatibility ....................1 Technical Specification ................ 2 Notice ....................... 2 General Information of OBD II ............3 Diagnostic Trouble Codes (DTCs) ..........3 Product Overview ..................4 Preparation & Connection..............5 Operation Introduction ................9 Warnings ..................... -
Page 4: Welcome
WELCOME Thank you for purchasing the Product, an automotive diagnostic tool. Please read manual prior to operation. ABOUT The Product is an ideal diagnostic tablet designed to work on all available electronic systems. Beyond OBD II diagnostics, the user can expect AutoVIN technology to accelerate diagnostic work, without needing to executing menu-driven commands step by step. -
Page 5: Technical Specification
TECHNICAL SPECIFICATION Display: 4-inch 800*480 Touchable Screen RAM: 2G ROM: 32GB OBD II Input Voltage Range: 9~18V Charging: Type-C charging port, or through connection to vehicle’s Working Temperature: 32°F to 113°F (0°C to 45°C) Storage Temperature: -4°F to 158°F (-20°C to 70°C) NOTICE Product may automatically reset while being disturbed by strong static electricity. -
Page 6: General Information Of Obd Ii
GENERAL INFORMATION OF OBD II The OBD II system is designed to monitor emission control systems and key engine components by performing either continuous or periodic tests of specific components and vehicle conditions, which will relay the following information: • Whether the Malfunction Indicator Light (MIL) is commanded “on”... -
Page 7: Product Overview
PRODUCT OVERVIEW Name Descriptions Charging Port To charge the tablet. DB-15 Diagnostic To connect to the diagnostic cable. Connector • Hold the button for 3 seconds to turn the tablet on or off. Power/Screen • Hold the button for 8 seconds for a forced Lock Button shutdown. -
Page 8: Preparation & Connection
PREPARATION & CONNECTION 1. Turn the ignition off. 2. Locate the vehicle’s DLC socket. 3. Connect one end of the diagnostic cable to the DB-15 port on the Product and tighten the captive screws. 4. Plug the adaptor to vehicle's DLC connector. 5. - Page 9 *Note: Don’t connect or disconnect any test equipment with the ignition on or engine running. 7. Language Setting Select the tool language in the following interface: 8. Choose Time Zone Choose the time zone of your current location. The system will automatically configure the time according to the time zone you selected.
- Page 10 9. Connect Wi-Fi The system will automatically search for all available Wi-Fi networks. You can choose the Wi-Fi needed. *Note: Upon first use, the tablet requires data interaction with the server for activation, necessitating Wi-Fi connectivity. Without this initial activation, the diagnostic software will not be accessible. However, once activated, the diagnostic function can be utilized offline.
- Page 11 11. User Agreement Please read all the terms and conditions of the user agreement carefully. Check “Agree to all the above terms” and tap “Next” to complete the registration process. It will automatically jump to the Home Menu.
-
Page 12: Operation Introduction
OPERATION INTRODUCTION Product has 5 major modules, including Diagnostics, OBD II, Upgrade, Feedback and Settings. 1. Diagnostics Product supports Smart Diagnosis and Manual Diagnosis covering full system diagnosis. A diagnostic report will be automatically generated after the diagnosis. 1.1 Smart Diagnosis (Auto-Detect) Power on the Product. - Page 13 Input the VIN and tap “OK”; the system will automatically identify the vehicle model. If the VIN is successfully decoded, it will perform Smart Diagnosis until a diagnostic report is automatically generated. Otherwise it will enter the Manual Diagnosis mode. *Note: •...
- Page 14 Select “Diagnostics” Select Vehicle Make Select Vehicle Model Select Scan Mode Automatic System Manual System Detection Detection (System Scan) (System Selection) Select Test Function Read Version Read Fault Clear Fault Read Data Actuation Special Information Code Code Stream Test Function *Note: •...
- Page 15 Take “Demo V15.55” as an example to demonstrate how to manually diagnose a vehicle. Tap “OK” to continue. Select desired vehicle make and model to enter the following screen. 1.2.1 Health Report (Quick Test) This function enables you to quickly access all electronic control units of the vehicle and generate a detailed report about vehicle health.
- Page 16 The system with fault codes will be displayed in red ( ). The system with no fault codes will be displayed in green ( *Explanation of terms: • Tap to display the details of DTCs existing in the current system. to hide it.
- Page 17 “ENGINE” for example). The following screen will appear: a. Read Fault Code This function displays the detailed information of DTC records retrieved from the vehicle’s control system. The following screen will appear: *Explanation of terms: • Help: To view the help information. •...
- Page 18 c. Read Data Stream This option retrieves and displays live data and parameters from the vehicle’s ECU. The following screen will appear: After selecting the desired items, tap “OK” to enter the data stream reading page. The system will display the selected data streams in 3 modes available: 1) Value (default): Shows parameters with numbers and lists.
- Page 19 Tap “Combine” to merge values in waveform for easier comparisons. Maximum 4 values can be selected at the same time. Tap “Report” to save the current data as a diagnostic report or share it with others. All diagnostic reports can be accessed from “Settings” -> “Data”...
- Page 20 During the actuation test, the display tablet outputs commands to the ECU in order to drive the actuators, and then determines the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators, such as switching an injector between two operating states.
- Page 21 1.3 Diagnostic History The tablet will record every details of a diagnostic session. The History function provides direct access to the previously tested vehicles. You can resume from the last operation without the necessity of starting from scratch. Tap “History” in the “Diagnostics” module. All diagnostic records will be listed on the screen in a date sequence.
- Page 22 2.1 Read I/M Readiness This function checks whether or not the various emissions-related systems on the vehicle are operating properly, and are ready for Inspection and Maintenance testing. It can also be used to check the Monitor Run Status, and to confirm if the repair of a car fault has been performed correctly.
- Page 23 2.7 Control Operation of On-Board Component/System This option is used to access vehicle-specific subsystem and component tests. Available tests vary by vehicle manufacturer, year, and model. 2.8 Read Vehicle Information This function retrieves a list of information (provided by the vehicle manufacturer) from the vehicle’s on-board computer.
- Page 24 establishes a stable network connection. Our technical support will handle your feedback as quickly as possible. 5. Settings 5.1 Units of measurement This option allows you to set the measurement unit. Metric System and Imperial System are available. 5.2 Screen capture This option allows you to set the Screen Capture icon to be shown or not on the screen.
- Page 25 5.8 Language The tool supports multiple languages. You can use this option to set the preferred language. *Note: After switching the language, please re-download all diagnostic software, otherwise the system will use the English software by default. 5.9 Workshop Information This option allows you to set up the default email address for receiving the diagnostic reports or screenshots, and workshop information.
- Page 26 *Explanation of terms: • Graph: Display parameters in waveform graphs. • Combine: Merge graphs for data comparison. Items will be displayed in different colors. • Value (default): Display the parameters as text in a list format. • Auto Playback: Automatic playback of the selected data stream items.
- Page 27 5.14 Version This option allows you to check whether the current system version is the latest one.
-
Page 28: Warnings
WARNINGS • Always perform automotive testing in a safe environment. • DO NOT smoke near the vehicle during testing. • DO NOT place the diagnostic tool near the engine or exhaust pipe to avoid damage from high temperatures. • DO NOT wear loose clothing or jewelry when working on an engine. •... -
Page 29: Faq
Q: System halts when reading the data stream. What is the reason? A: It may be caused by a slackened connector. Please turn off the tablet, firmly connect the connector, and switch it on again. Q: Screen flashes at engine ignition start. What is the reason? A: Normally caused by an electromagnetic disturbance. -
Page 30: Warranty
TOPDON shall not be liable for any incidental or consequential damages arising from the device's use, misuse, or mounting. If there is any conflict between the TOPDON warranty policy and local laws, the local laws shall prevail. This limited warranty is void under the following conditions: •... - Page 31 Compliance Information FCC ID: 2AVYW-ADEU IC: 32511-ADEU Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s).
- Page 32 This device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS 102 RF exposure users can obtain Canadian information on RF exposure and compliance. Cet appareil respecte l'exemption des limites d'évaluation de routine de la section 2.5 de la norme RSS 102 et la conformité...
