Summary of Contents for Topdon ArtiDiag

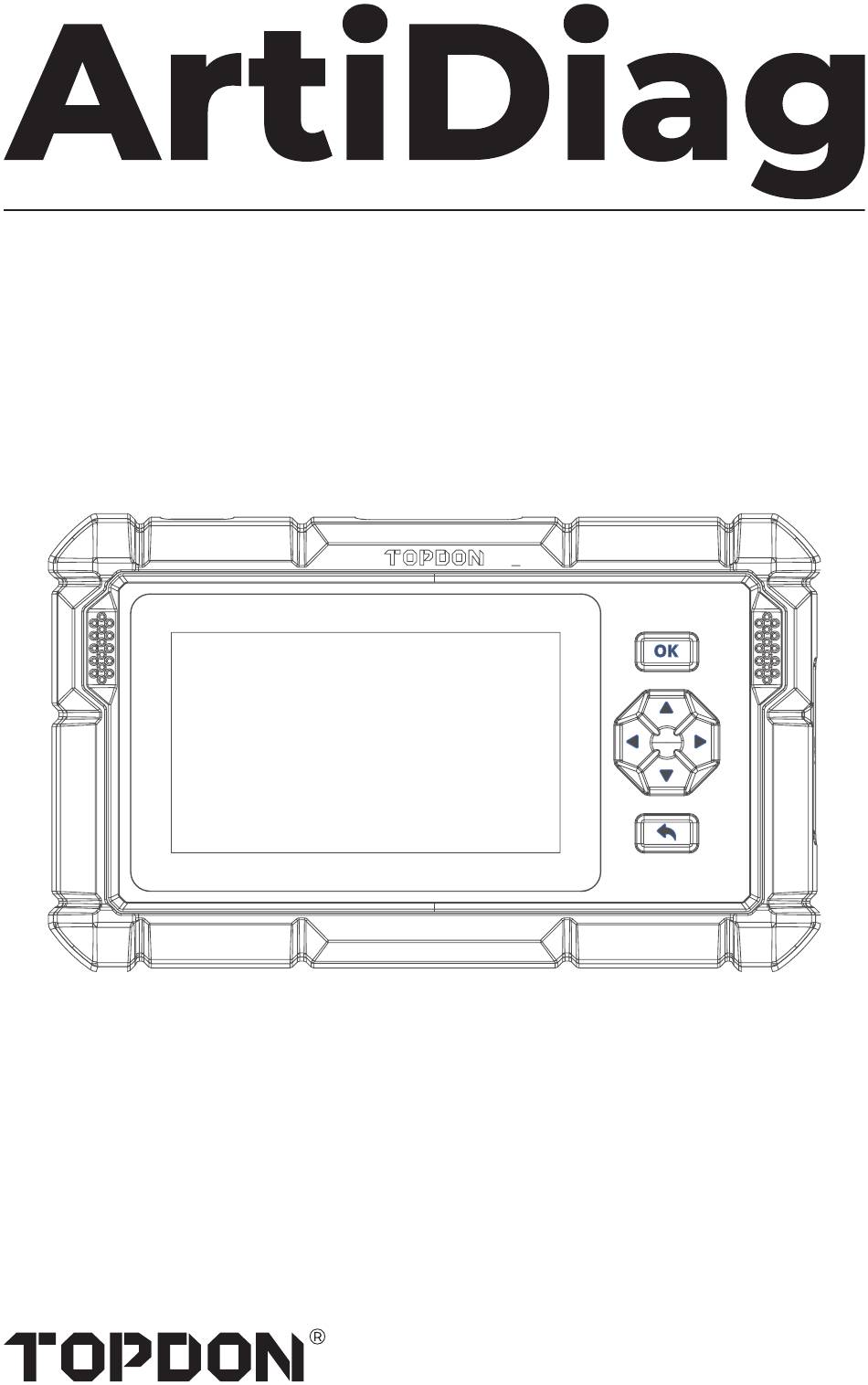

- Page 1 USER MANUAL Professional Diagnostic Tool...
-
Page 3: Table Of Contents
SAFETY IS ALWAYS THE FIRST PRIORITY! ...... SECTION 1 WHAT'S IN THE BOX? ...... SECTION 2 PRODUCT OVERVIEW ...... SECTION 3 GETTING STARTED ...... SECTION 4 USING YOUR ARTIDIAG ...... SECTION 5 SPECIFICATIONS ...... SECTION 6 FAQ ...... SECTION 7 WARRANTY ...... -
Page 4: Safety Is Always The First Priority
SAFETY IS ALWAYS THE FIRST PRIORITY! READ ALL INSTRUCTIONS BEFORE USE For your safety, the safety of others, and to avoid any damage to the product and your vehicle, CAREFULLY READ AND MAKE SURE YOU FULLY UNDERSTAND ALL THE SAFETY INSTRUCTIONS AND MESSAGES IN THIS MANUAL BEFORE OPERATING. -
Page 5: Section 1 What's In The Box
SECTION 1 WHAT'S IN THE BOX? • ArtiDiag500/ArtiDiag600 • OBD-II Diagnostic Cable • USB Cable (Type-A to Type-C) • Quick User Guide • Carrying Case... -
Page 6: Section 2 Product Overview
SECTION 2 PRODUCT OVERVIEW Figure 2-1... - Page 7 Power / Screen Off Button Long press the button to turn on the ArtiDiag500/ArtiDiag600. Long press again to display the Power off / Restart / Cancel toolbar, then tap the desired option. Short press the button to wake up / lock the screen. DB15 Diagnostic Cable Connector Data cable connection used to connect the ArtiDiag500/ ArtiDiag600 to a vehicle data link connector (DLC).
-
Page 8: Section 3 Getting Started
SECTION 3 GETTING STARTED 3.1 Basic Setup Press and hold the power button for 3 seconds to turn on the ArtiDiag500/ArtiDiag600. Follow the steps below to set up the ArtiDiag500/ArtiDiag600. 1. Select the desired system language. Figure 3-1 2. Choose the appropriate region and time zone. Figure 3-2... - Page 9 3. Configure the Wi-Fi connection. Select a Wi-Fi from the scanned list and enter the password. Figure 3-3 4. Log in to your TOPDON account. (If you do not have an account, please register with your email). Figure 3-4...
- Page 10 5. Configure the Wi-Fi connection. Select a Wi-Fi from the scanned list and enter the password. Figure 3-5 Note: It is recommended to update the software for better service if a new version is available on the System Update module. 3.2 Connect the ArtiDiag500/ArtiDiag600 to the Vehicle's DLC Use the supplied OBD-II diagnostic cable to connect the ArtiDiag500/ArtiDiag600 to the vehicle's DLC (see Figure 3-6).
- Page 11 Figure 3-6 Note: Make sure the ignition is always OFF before plugging in the unit. 3.3 Turn the Ignition to the "ON" Position (see Figure 3-7) If your vehicle is equipped with a keyless start system and the ignition switch is an "Engine Start Stop" button (see Figure 3-8), press the "Engine Start Stop"...
-
Page 12: Section 4 Using Your Artidiag
SECTION 4 USING YOUR ARTIDIAG 4.1 Home Screen Figure 4-1 Function Icons Allows you to perform diagnostics functions including reading Diagnostic Trouble Codes (DTCs), clearing DTCs, viewing data stream and reading Electronic Control Unit Diagnostics (ECU) version information. Allows you to perform emission-related diagnostics for your vehicle. - Page 13 Provides quick access to check the status of the emission-related systems. (Inspection and Maintenance) Readiness For ArtiDiag500: Provides 6 maintenance services including Oil Reset, Throttle Adaptation, EPB Reset, Steering Angle Reset, BMS Reset and TPMS Reset. For ArtiDiag600: Provides 8 maintenance services including Oil Maintenance Reset, Throttle Adaptation, EPB Reset,...
- Page 14 Includes OBD-II Generic DTC Repair Guide, Technical Service Bulletins, DTC Location, Warning Light Library, which provides reference information on vehicle inspection, diagnostics, and Library repair. Provides access to My Profile, Firmware Update, Customer Feedback, Shop Info, System Update and Settings. User Info 4.2 Diagnostics The Diagnostics module allows you to scan supported vehicle...
- Page 15 Identifying via VIN VIN allows you to identify the vehicle via Auto VIN or Enter VIN. • Auto VIN - the ArtiDiag500/ArtiDiag600 automatically reads and decodes the Vehicle Identification Number (VIN). Note: Not all vehicles support automatically reading and decoding the VIN via Auto VIN. •...
- Page 16 3. Select Automatic / Manual to identify the vehicle. Automatic Manually enter the VIN or tap Read to acquire the VIN, then tap Confirm. ArtiDiag will automatically decode the VIN to identify the vehicle. Manual Manually select the vehicle information to identify the vehicle.
- Page 17 1. After the vehicle is identified, select the system for which you wish to retrieve DTCs from the system menu. 2. Tap Read Trouble Code in the function menu. ArtiDiag will communicate with the ECU and retrieve and display DTCs for the currently selected system.
- Page 18 3. Tap the icon at the right side to open the option menu of a particular DTC. Figure 4-6 Icon Description When this icon lights up, tap to open a window that allows you to search on Google for more information about the DTC.
- Page 19 Button Description Report - tap to save the DTCs in report format. (To view the saved reports, go to Folder > Reports > Fault Code Report.) Clear DTCs - tap to clear all the DTCs retrieved. Clear Trouble Code 1. After the vehicle is identified, select the system for which you wish to clear DTCs from the system menu.
- Page 20 Icon Description Tap to have the real-time data stream displayed in a wave-pattern graph. Button Description - tap to select the data streams that you want to be displayed. - tap to display up to 6 data streams in graph. - tap to combine up to 4 data streams in one graph for easier comparison and observation.
- Page 21 Read Version Information 1. After the vehicle is identified, select the system for which you wish to view the ECU version information from the system menu. 2. Tap Information in the function menu. Then you can view the ECU version information of the selected system. 4.3 OBDII / EOBD The OBDII / EOBD function allows you to perform emission-related diagnostics for your vehicle.
- Page 22 Figure 4-9 Note: Depending on the vehicle make, some functions may not be available. Typical function options may include: DTC & FFD, I/M Readiness, Live Data, On-Board Monitor, Component Test, Vehicle Information and Vehicle Status. 1. Read DTCs This function displays the DTCs retrieved from the emission-related systems.
- Page 23 I/M Readiness This function checks whether or not the various emission-related systems on the vehicle are operating properly, and are ready for I/M testing. It can also check the monitor running status and to confirm if the repair of a car fault has been performed correctly. Live Data This function displays the real-time live data and parameters from the vehicle’s ECU.
- Page 24 2. Select the type of problem. 3. Write a description of the problem. 4. Tap Submit to send the feedback. Note: The Diagnostic Feedback function is only available with the Diagnostics module. 4.4 I/M Readiness This function checks whether or not the various emission-related systems on the vehicle are operating properly, and are ready for I/M testing.
- Page 25 4.5 Maintenance For ArtiDiag500: This function provides you with 6 maintenance services including Oil Reset, Throttle Adaptation, EPB Reset, Steering Angle Reset, BMS Reset and TPMS Reset. For ArtiDiag600: This function provides you with 8 maintenance services including Oil Reset, Throttle Adaptation, EPB Reset, Steering Angle Reset, BMS Reset, TPMS Reset, DPF Regeneration and Injector Coding.
- Page 26 TPMS Reset After the tire has been reinflated or replaced, the tire pressure information needs to be reset via the tire pressure reset function to resolve the tire pressure fault code. DPF Regeneration (For ArtiDiag600) This function is mainly used for the regeneration of diesel particulate filters.
- Page 27 Figure 4-12 ArtiDiag600 2. Select the function you want to perform. 3. Identify the vehicle via VIN or Make (for more on identification operations, refer to Identifying the Vehicle in Auto Scan and Individual System Diagnostic). Then go to the screen for the selected function displays.
- Page 28 4.7 Update This function allows you to update the vehicle-specific Diagnostics software if there is any new software available. To perform the Updade function: 1. Tap Update from the home screen and the Update screen will display. Figure 4-14 2. Tap Download to update or download the software. Note: You can also tap Select at the top right corner to batch select and update software.
- Page 29 4.8 Folder This function gives access to Reports (All, System Reports, Fault Code Report, and Data Stream Reports), Live Data Rec., Screenshots and Screen Rec.. Figure 4-15 Button Description Tap to search for a particular report Tap to batch select and delete reports 4.8.1 Reports 1.
- Page 30 Tap Folder > Screenshots. to view the screenshots saved during the operation of the ArtiDiag500/ArtiDiag600. 4.8.4 Screen Rec. Tap Folder > Screen Rec. to view the screen recordings saved during the operation of the ArtiDiag500/ArtiDiag600. 4.9 Library 4.9.1 DTC Repair Guide DTC Repair Guide is an experience-based database that provides code-specific information, including popular fixes and repair steps for identifying faults.
- Page 31 You can tap the profile photo in the User Info screen to enter the My Profile page. With this function, you can change your profile photo/ alias, view your TOPDON ID, change the password, and delete your TOPDON account. 4.10.2 Firmware Update Allows you to update the firmware if a new version is available.
-
Page 32: Section 5 Specifications
SECTION 5 SPECIFICATIONS Display Screen 1280 * 720 Touchable Screen Battery 3350 mAh/3.7 V Input Voltage Range 9-18 V Working Temperature -10 °C to 50 °C (14 °F to 122°F) Storage Temperature -20 °C to 70 °C (-4°F to 158°F) Dimension (L x W x H) 8.9*5.3*1.56 in. -
Page 33: Section 6 Faq
A: Follow the steps below to identify the problem: 1) Check if the ignition is ON. 2) Check if the ArtiDiag OBD-II diagnostic cable is securely plugged into the vehicle’s DLC port. 3) Turn the ignition off. Turn it on again after 10 seconds and continue the operation. -
Page 34: Section 7 Warranty
TOPDON shall not be liable for any incidental or consequential damages arising from the device's use, misuse, or mounting. If there is any conflict between the TOPDON warranty policy and local laws, the local laws shall prevail. This limited warranty is void under the following conditions: •... -
Page 35: Section 8 Fcc
SECTION 8 FCC Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
