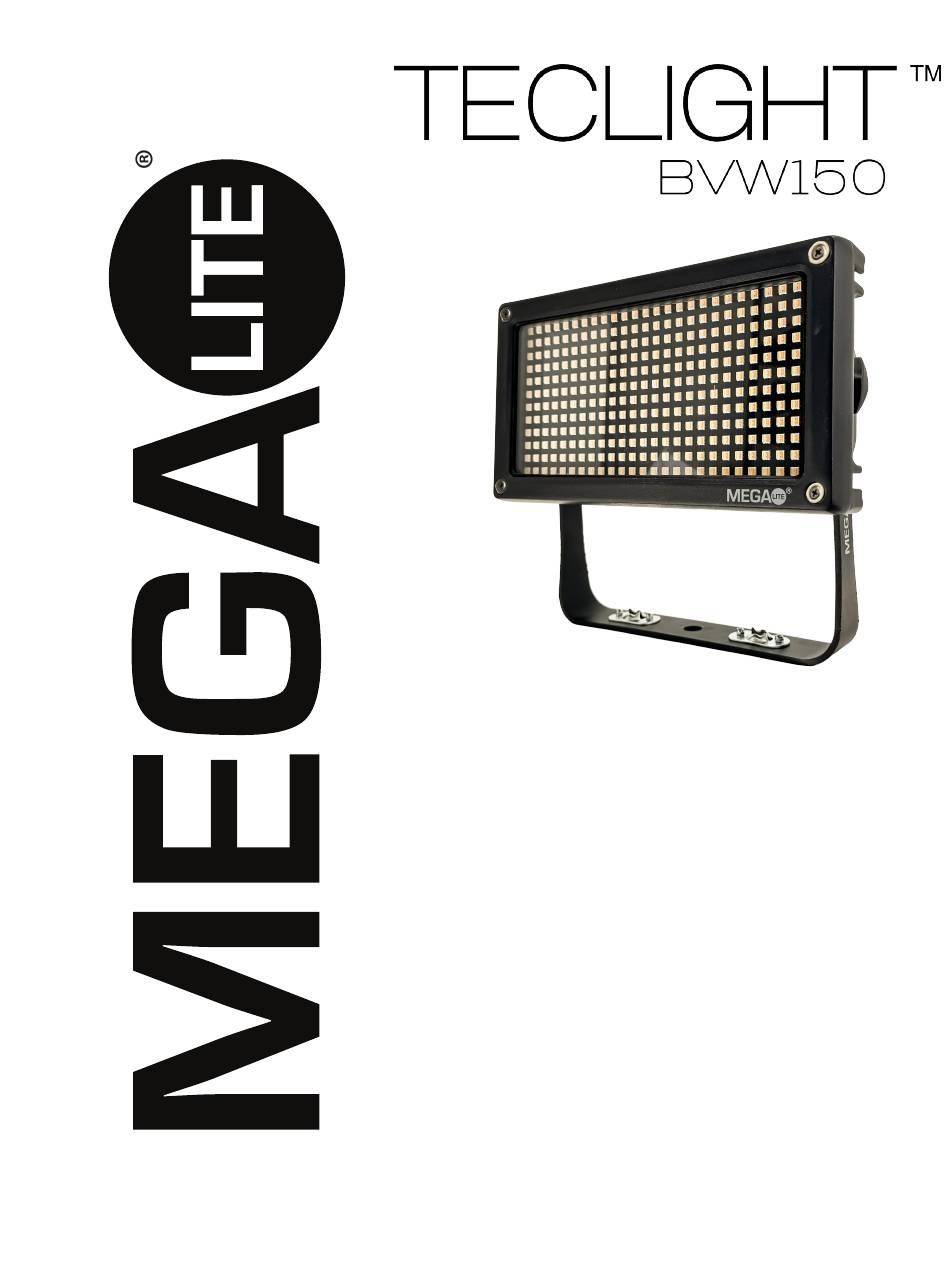

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information What’s Included Specifications Main Power Connection DMX Connection Display Settings DMX Profile Size And Weight Installation Parts and Accessories Warranty Customer Service... - Page 2 What is Included 1pc TechLight BVW150 Fixture 1pc Seetronics SAC3PX-67 to Nema 5-15 Cable 1pc Quick Release Clamp Mount...
-
Page 3: Specifications
Specifications Fixture ID 7080-TECHLIGHT BVW150 Mechanical Specifications Housing: Die-Cast Aluminum Outdoor Rating: IP-65 Mounting System: 1 Quick Release Clamp Mounts, 13mm Center Hole Power Connection: Input: Seetronics SAC3PX-67 Output: Seetronics SAC3FX-67 Signal Connection: Seetronics C5F2C-W-B 5 Pin XLR In and Out Weight: 8.3lb... -
Page 4: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (Electronically grounded) Replace fuse only with the specified type and rating. This device is equipped with auto switching power supply that will allow the fixture to work from 100-240V AC 50/60Hz Power Link max 15 units at 120V Cable USA... -
Page 5: Display Control
Display Control Address The control board on the rear of the fixture is your interface to access and control all the functions on the unit. It’s LCD display gives you a code view of the options [ 004 ] and functions. The following will explain each function. DMX ON DMX Address: Press Enter to select the DMX start channel. - Page 6 Main Menu Temperature: This fixture is equipped with internal fan sensors. Once the fixture reaches 96 degrees Fahrenheit or 36 degrees Celsius the fans will engage. Sensors read the temperature of the fixture head >Temperature and body. Settings Main Menu Settings: Preferred user setting options Auto Speed...
-
Page 7: Dmx Profile
DMX Profile Teclight BVW150 Channel Channel Channel Function Decription Value Init Value Mode Mode Mode Dimmer Dimmer Off to Full (front leds) 0-255 LED Intensity Cool White LED Intensity 0-255 LED Intensity Warm White LED Intensity 0-255 LED Intensity Blue LED Intensity 0-255 No Function Strobe... -
Page 8: Size And Weight
Size and Weight 10.75” / 273mm 9.5” 241.3mm 6” 152mm ® 5.39”/ 137mm Dimmer 3” / 76.2mm 100% CW Fixture Size: 10.75” X 5.39” X 6” Fixture Weight: 8.3lb Packaged Size: 13.75” X 12.5” X 8” Packaged Weight: 10lb... -
Page 9: Optional Accessories
Optional Accessories Barn Door Attachment: (7080-ACC-BAR) Diffuser Attachment: Diffuser Holder (7080-ACC-DIF) & Diffuser Filter (7080-ACC-120-DIF) Installation Caution! 1. The Installation must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injuries, if you have doubts concerning the safety do not install. 3. -
Page 10: Parts & Accessories List
Parts & Accessories Rubber For Display Display Yoke Holder Display Board Dimmer Knobs Driver Board DMX Socket Heatsink housing Rubber for Front cover LED PCB Front Glass holder Front Glass Rubber for Front Glass Power Socket Front cover Magnets Di usion Holder Power Box Power Supply Holder of Power Supply... -
Page 11: Warranty
General Terms & Conditions 1. All resellers must have approved and signed Reseller Application on file, including their respective state tax information and W-9. Applications are re-evaluated on a fiscal calendar year basis to assure business integrity and tax status. 2. -
Page 12: Customer Support
Customer Support MEGA-Lite has a customer support line to provide set-up help and to answer any questions should you encounter a problem. Please visit our website for any other related technical documents. For service related issues, please contact our service dept. Monday - Friday 9am to 6pm CST (210)684-2600 Service@mega.lighting...
