USER MANUAL
Safety Information...............................................................2
Specifications.....................................................................3
Main Power Connection........................................................4
DMX-512 Connection...........................................................4
Main Control Menu..............................................................5
Rigging the Fixture..............................................................7
Accessories.......................................................................7
DMX Profile.....................................................................................7
Cleaning & Maintenance...............................................................11
Parts List.......................................................................................11
Advertisement
Table of Contents
Related Manuals for MegaLite Circa

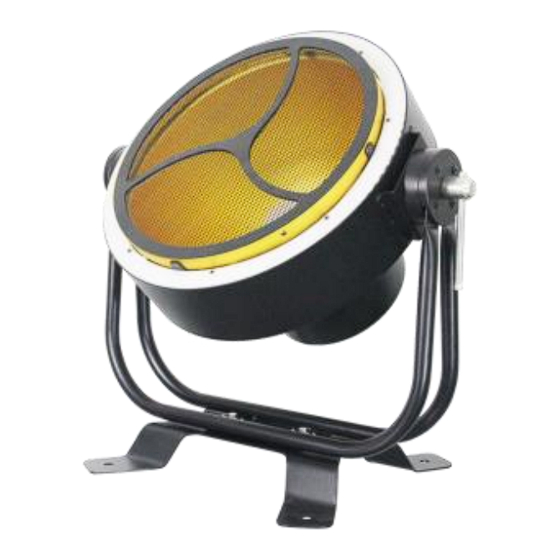

Summary of Contents for MegaLite Circa
-

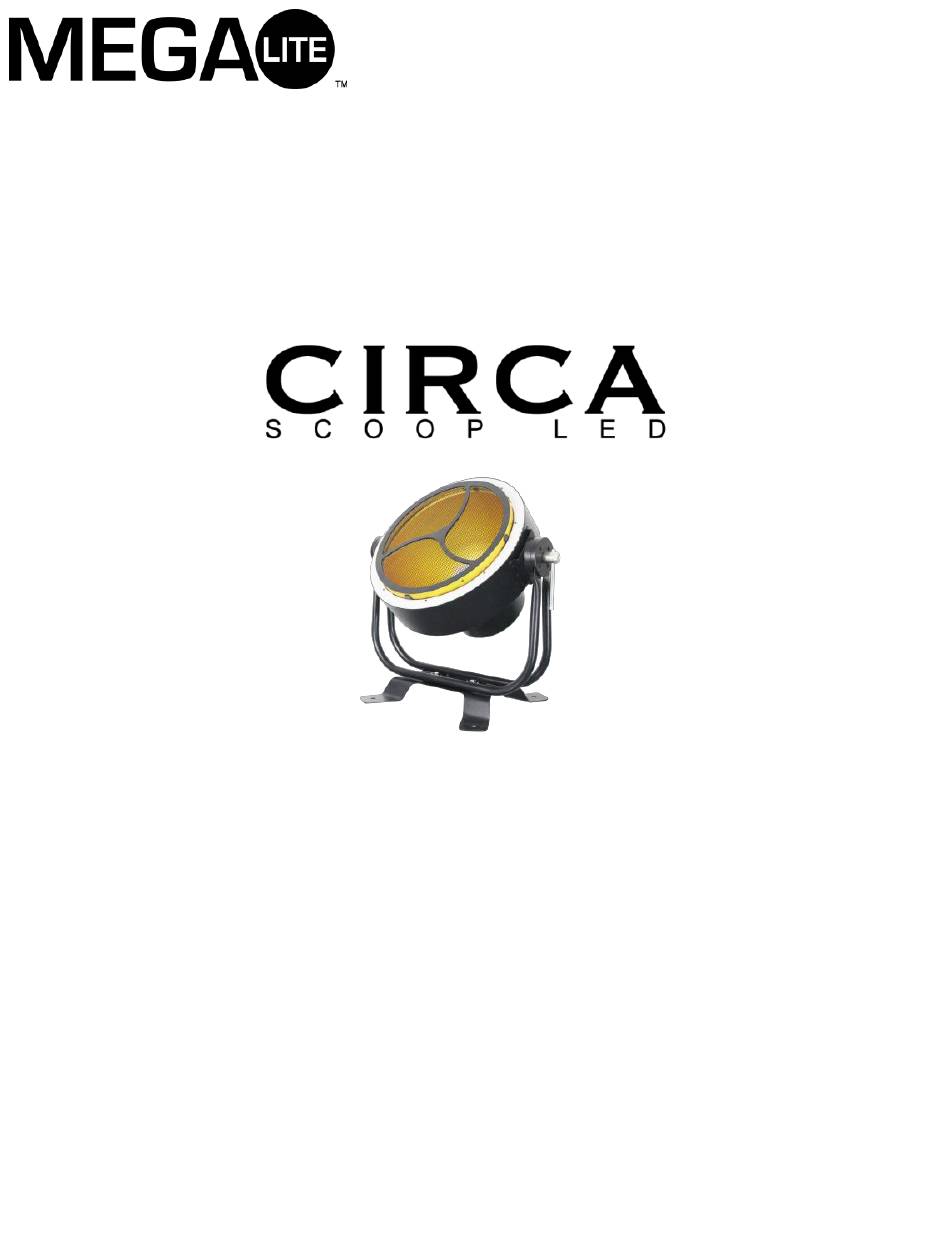

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information……………………………………...………………2 Specifications………………………………………...…………………3 Main Power Connection…………………………...…………………..4 DMX-512 Connection……………………………..…………………...4 Main Control Menu……………………………………………………..5 Rigging the Fixture……………………………….…………………….7 Accessories……………………………………………………………..7 DMX Profile..................7 Cleaning & Maintenance...............11 Parts List..................11... -
Page 3: Table Of Contents Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 4: Specifications
Specifications Part Numbers Fixture Flight Case 5200– Circa Scoop LED CAS-5200-2 Dual Road Case Mechanical Specifications DMX Connectors: 5-pin XLR Connectors Mounting Yoke: Square Yoke (Accessory Circular Yoke Available) 7.5” 15.12” Power Connectors: Power Con Type 3.80” Thermal: Maximum ambient temperature 110° F Maximum surface temperature 140°... -
Page 5: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. Power link maximum 4 units at 110V This device is equipped with a auto switching power supply that will allow you to work from 100V-240V 50/60Hz The occupation of the connection-cable is as follows: Cable (USA) Cable (EU) -
Page 6: Main Control Menu
Display Control Mega Lite Circa Scoop V1.2 ENTER DOWN DMX Address Address Press Enter to select the DMX start channel. Use the up/down keys (001 to 512) , Press Enter to confirm the setting. Press ESC to return to Main Menu. Number in parentheses is (018) the next available DMX Channel. - Page 7 Auto Speed Main Menu Auto Mode Press Enter. Select from 6 modes Press ESC to return to Main Menu. >Auto Speed Temperature (Note: If you want to have fixture remain on Auto Test do not press ESC and just power off and on fixture to return to last setting) Temperature Main Menu...
-
Page 8: Rigging The Fixture
10 times the weight for 1 hour with out any harming. Installation should be checked at least one time a year by a skilled person. Accessories 5200-ACC-BAS Removable Floor Base DMX Profile Circa Scoop LED 2 Ch Mode DMX Channel Function Description Value Init... - Page 9 Circa Scoop LED 17 Ch Mode DMX Channel Function Description Value Init Dimmer Master Dimmer Off to Full 0-255 LED Color Outer Red LED intensity 0-255 LED Color Outer Green LED Intensity 0-255 LED Color Outer Blue LED Intensity 0-255...
- Page 10 Circa Scoop LED 52 Ch Mode DMX Channel Function Description Value Init Dimmer Master Dimmer Off to Full 0-255 LED Color Outer 1 Red LED intensity 0-255 LED Color Outer 1 Green LED intensity 0-255 LED Color Outer 1 Blue LED intensity...
- Page 11 Circa Scoop LED 55 Ch Mode DMX Channel Function Description Value Init Dimmer Master Dimmer Off to Full 0-255 LED Color Outer 1 Red LED intensity 0-255 LED Color Outer 1 Green LED intensity 0-255 LED Color Outer 1 Blue LED intensity...
-
Page 12: Cleaning & Maintenance
Cleaning and Maintenance Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and electronics checked by an expert every 2 years. The following points have to be considered during the inspection: 1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded. -
Page 13: Warranty Information
Warranty Information Warranty Conditions -Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty. -LED’s or Lamp’s are not guaranteed to match in color temperature or output. -It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor. If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
