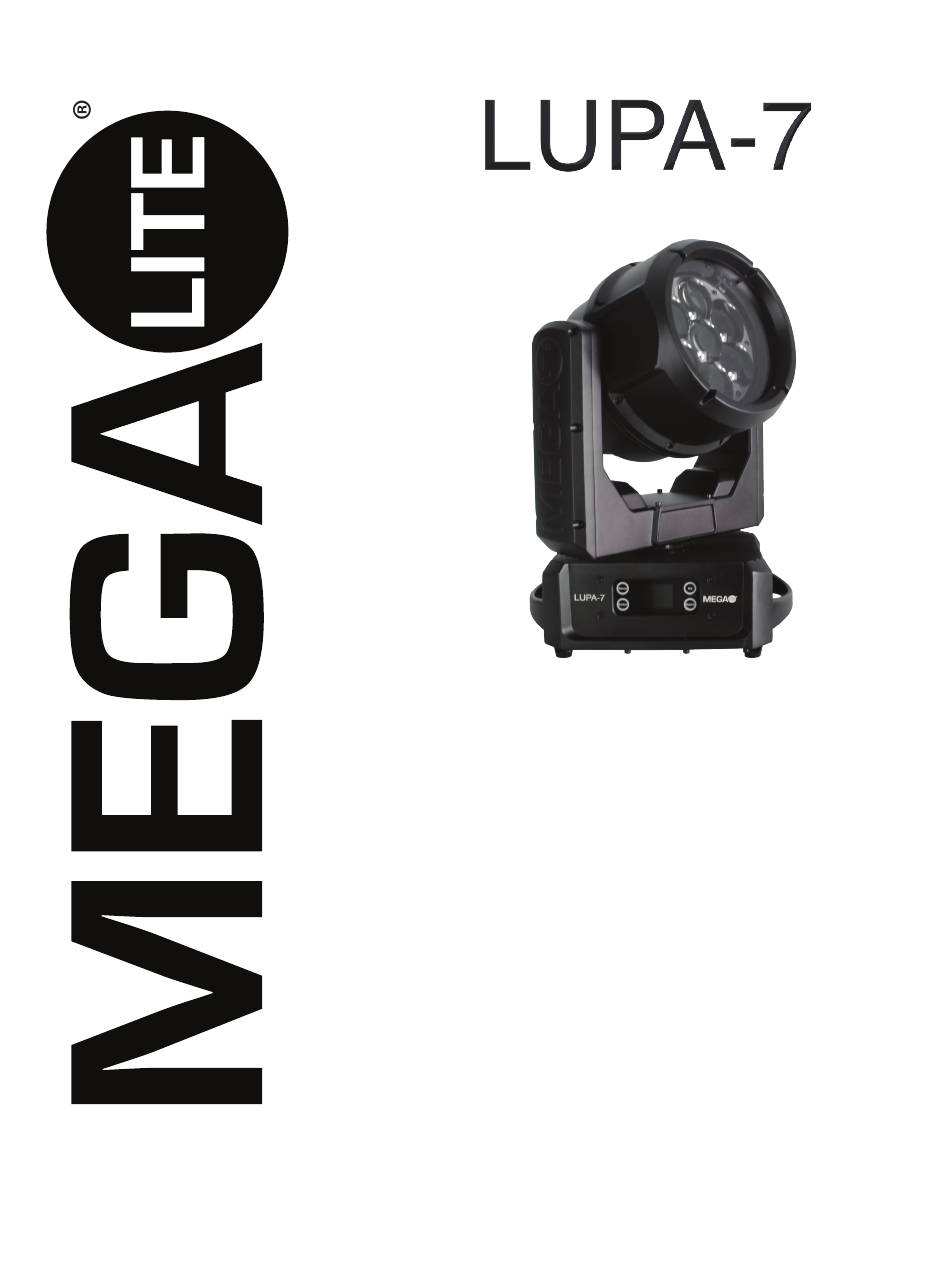

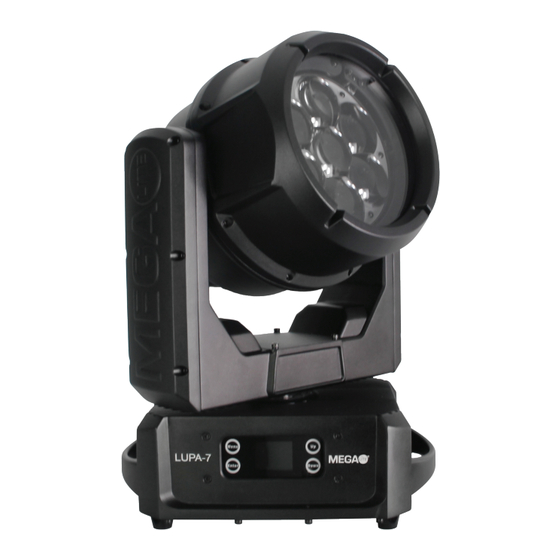

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information What’s Included Specifications Main Power Connection DMX Connection Display Settings DMX Profile Size And Weight Segment Installation Warranty Customer Service... - Page 2 Check that the unit has not been damaged during transport. Protection Against Fire Maintain a minimum of 1 foot distance from any type of flame. Fixture is designed for temporary outdoor use. Do not install the unit too close to a heat source. Make sure cables are properly secured.
-
Page 3: Specifications
Specifications Part Numbers Fixture ID 1315-Lupa 7 Mechanical Specifications Housing: Die-cast Aluminum Mounting System: Quick Release Clamp Mounts Power Connection: Seetronics SAC3FPX Input & SAC3MPX output (Nema 5-15 to SAC3FX-67 cable included) Signal Connection: 5 Pin XLR In and Out (IP Rated) Data Connection: RJ45 (IP Rated) Zoom:... -
Page 4: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit must be earthed. (Electronically grounded) Replace fuse only with the specified type and rating. (F10 250V) This device is equipped with auto switching power supply that will allow the fixture to work from 100-240V AC 50/60Hz Power Link max 3 units at 110V and 6 units at 220V Cable USA... - Page 5 Display Control DMX-512 Mode 23 °C Menu IP:002.000.000.007 The control board on the fixture base is your interface to access and control all the functions on the unit. Channel: 27Ch It’s LCD display gives you a code view of the options and functions.
- Page 6 Control Mode Control Mode The 3 DMX Profiles operation modes can work on DMX,Artnet or aACN by Artnet using the correct signal connection and controller set up. DMX + Artnet Dual Mode Allows for you to control 134 Channel mode to be split between sACN DMX Control and the option of Artnet or aACN.
- Page 7 FAN Mode Fan Mode Auto This function allows you to select from 3 fan setting options Silent Auto= Will engage the fan once needed for LED cooling Silent= Will dim the LED to a safe operating mode Full Full= Fan Calibration Calibration Invert Pan...
- Page 8 Main Menu Network Address Channel Mode Ether: IP and MS: ID Number must match local ether net network from control- Setting ler last fixture must be individually numbered. Network Please refer to DMX Controllers Manual to establish proper network connection Manual Reset Manual Mode...
-
Page 9: Dmx Profile
DMX Profile Lupa 7 DMX Profile 134 Mode 27 Channel 139 Channel 48 DMX Function Description Value Init Value Mode Mode 86 Artnet 0-255 Pan Fine Pan Fine 0-255 Tilt Tilt 0-255 Tilt Fine Tilt Fine 0-255 P/T Speed Pan and Tilt Speed (fast to slow) 0-255 Dimmer Dimmer Off to Full (front leds) - Page 10 Effect Speed Effect Speed (slow to fast) 0-255 8000K to 2000K (front LEDs) 0-255 Back LED Intensity Back Red LED 0-255 Back LED Intensity Back Green LED 0-255 Back LED Intensity Back Blue LED 0-255 No Function Back Macro 1 Back Macro 2 9-16 Back Macro 3...
- Page 11 No Function 0-230 Control All Function Reset (Hold for 5 Seconds) 231-245 No Function 246-255 LED 1 Red 1 0-255 LED 1 Green 1 0-255 LED 1 Blue 1 0-255 LED 1 White 1 0-255 LED 2 Red 2 0-255 LED 2 Green 2 0-255...
-
Page 12: Size And Weight
Size and Weight 12.37” 10.75” 2.75” 10.2” 17.25” 4.3” 12.5” 8.62” 9.5” 24.15” Fixture Size: 12.5” X 9.5” X 17.25” Fixture Weight: 29lb Packaged Size: 16.4” X 13.9” X 24.61” Packaged Weight: 35.27lb... -
Page 13: Segment
Segment Pan , Tilt , Zoom Rot DMX Values: 000 Installation Caution! 1. The Installation must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injuries, if you have doubts concerning the safety do not install. 3. -
Page 14: Warranty
General Terms & Conditions 1. All resellers must have approved and signed Reseller Application on file, including their respective state tax information and W-9. Applications are re-evaluated on a fiscal calendar year basis to assure business integrity and tax status. 2. - Page 15 Customer Support MEGA-Lite has a customer support line to provide set-up help and to answer any questions should you encounter a problem. Please visit our website for any other related technical documents. For service related issues, please contact our service dept. Monday - Friday 9am to 6pm CST (210)684-2600 Service@mega.lighting...
