Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information What Is Included Specifications Main Power Connection DMX-512 Control Deco Driver Info Size & Weight Cleaning & Maintenance Rigging the Fixture Warranty Customer Support... -
Page 3: Safety Information
Check that the unit has not been damaged during transport Check that the unit has not been damaged during transport Protection Against Fire Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 2. Do Not install the unit to close too a heat source. 3. -
Page 4: Specifications

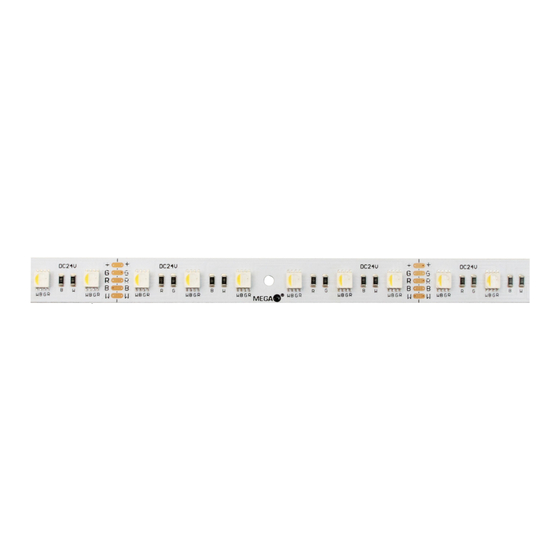

Specifications Part Numbers Fixture 5059– Deco CoveQ18 Mechanical Specifications Fastening System: 10 Mounting Holes Power Connection: 6 Inch 5 Conductor Cable Housing: FR-4 Aluminum PCB Lens Angle: 120° Housing Curving : Limited Curving of 160 degree Connection: Female Pin Head 2.0 5P Size: 40 inch (101.6 cm) long, Cuttable:... -
Page 5: Main Power Connection
White Cable DMX-512 Control When using the Deco Cove Q18 with Deco Drivers the fixture is intended to be used in Ch4 or Ch7 modes. The Deco Driver will be required to be set in Ch4 or Ch7 operating modes... -
Page 6: Size & Weight
Size & Weight 40” 1016mm 3.93” 100mm .59” 15mm Whole Size .12” .64” 3.2mm 16.4mm .27” Fixture Size 40" (1016mm) X .59” (15mm) X .27” (7mm) Fixture Packaged 41" X 2" X .5" Net Weight .1lb Gross Weight .15lb... -
Page 7: Cleaning & Maintenance
Cleaning and Maintenance Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installation and electronics checked by an expert every 2 years. The following points have to be considered during the inspection: 1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded. -
Page 9: Customer Support
Customer Support Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob- lem. Please visit our website for any other related technical documents. For service related issue please contact our service dept.
