Connection

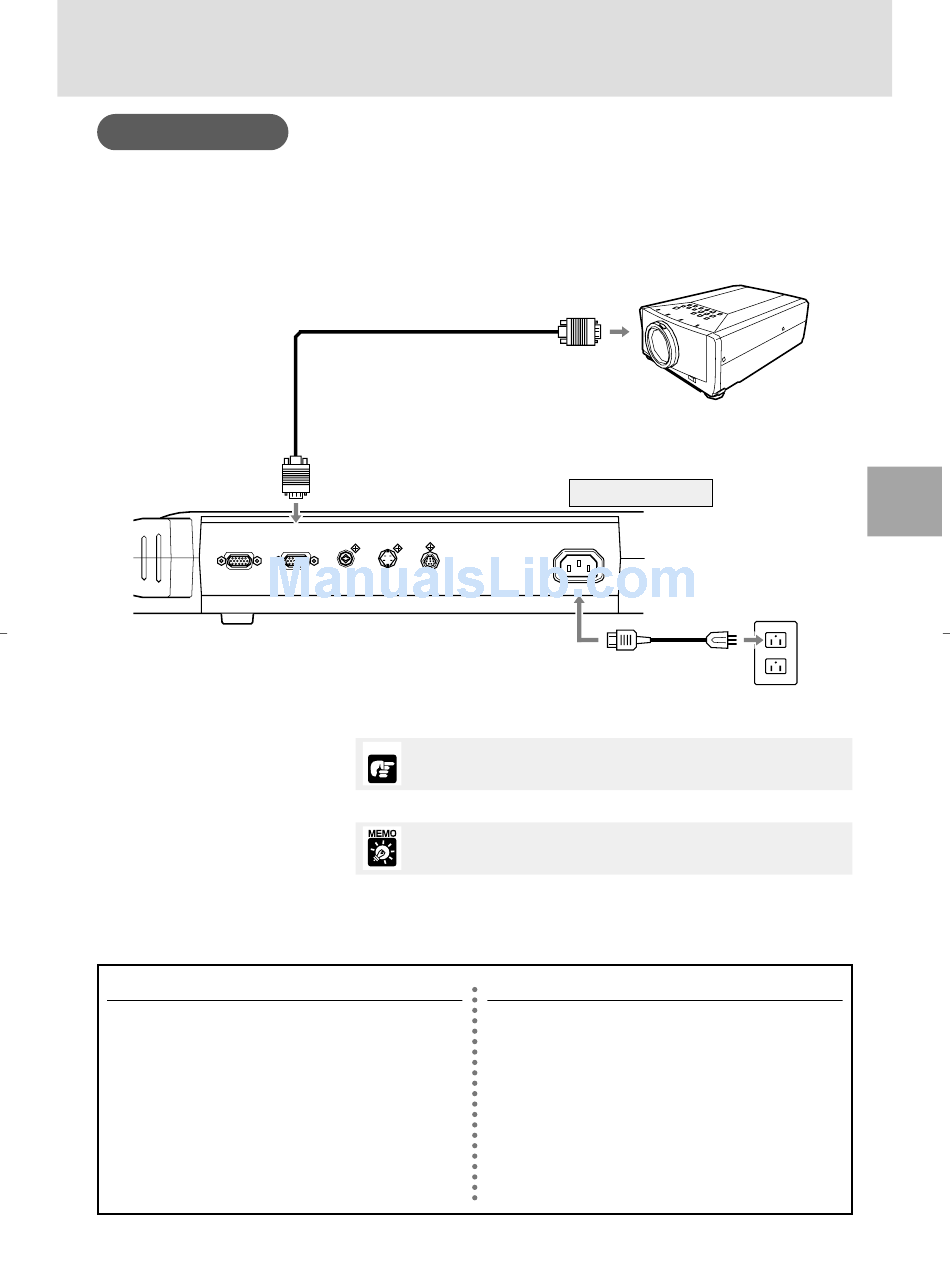

To connect the RE-450X to a liquid-crystal projector, use the RGB cable included in the package. Use the
power cable included in the package.
To RGB OUT
RGB IN
NTSC
I Installation Site and Environment
1. Connect the RE-450X to a correct
electronic source.
Source voltage: 120VAC ± 10%
Source frequency: 60 Hz
2. Install the RE-450X in a proper
environment.
Temperature: 41°F – 95° F (5°C –35°C)
Humidity: 85% max (without condensation)
RGB cable
VIDEO S VIDEO RS-232C
OUT OUT
RGB OUT
To protect the RE-450X as well as other equipment in use, make sure all the
NOTICE
equipment (if any) is OFF before connecting cables. Always hold onto the plug
section whenever connecting/disconnecting the cables.
See page 15 for connecting various equipment. For details of operation, refer to
the instruction manual of the equipment to be used.
To RGB input terminal
Liquid-crystal projector
Rear panel
AC INLET
Power cord
PAL
I Installation Site and Environment
1. Connect the RE-450X to a correct
electronic source.
Source voltage: 220 – 240VAC ± 10%
Source frequency: 50 Hz
2. Install the RE-450X in a proper
environment.
Temperature: 5°C –35°C (41°F – 95° F)
Humidity: 85% max (without condensation)
E
To AC
power outlet
