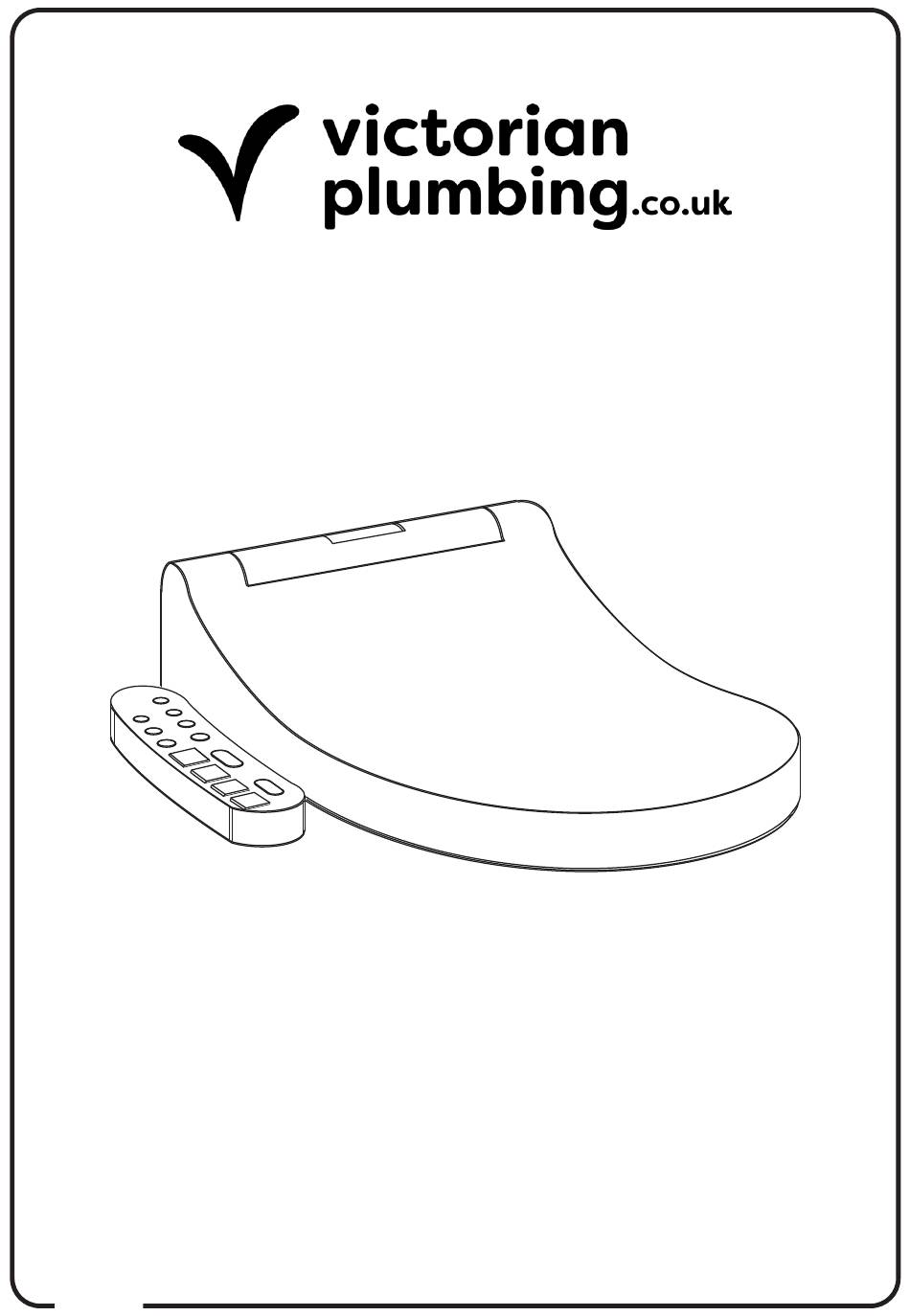

- Page 1 Smart Bidet Toilet Seat Fitting Instructions Please follow them carefully and leave this manual with end user V1.03.25...
- Page 2 Important Information Before installation, please read this guide carefully. We recommend that this product is installed by a qualified tradesperson, Victorian Plumbing Ltd. accept no liability for products incorrectly installed, or where the correct testing procedures have not been adhered to, thus resulting in the escape of water and consequential damage.Observe all local building codes &...
-
Page 3: Recycling And Disposal
ELECTRICAL SAFETY INFORMATION Please carefully follow the electrical safety information when installing/operating the product. Failure to adhere to the guidelines below may result in a fire, short circuit, electrical shock, injury or water leakage. Do not use a smart toilet seat that shows any signs of wire damage. This installation should only be installed by a qualified tradesperson in accordance with the applicable regulations regarding safety and all other regulations. - Page 4 Diagram: Toilet Lid 2. Water Inlet 3. Control Panel 4. Heated Seat 5. Cushion Pad 6. Damper 7. Dryer Outlet 8. Nozzle 9. Sensing Area 10. Electrical Wiring **Diagrams are for illustration purposes only, your smart toilet seat may superficially di er from these drawings however the installation steps still apply.** Fitting List:...
-
Page 5: Function Introductions
Tool required for installation (Not Included): *Ensure the appropriate PPE is used during installation* Adjustable Wrench Power Drill Screwdriver Function introductions: Function Introduction Provides rear cleaning Rear Wash Rear Oscillating Wash Moves the nozzle back and fourth for rear cleansing Provides cleansing with front cleansing nozzle with a gentle Front Wash spray... -
Page 6: Installation
Installation: Step 1: • (If applicable: remove the existing toilet seat from the pan.) Apply a small amount of lubricant to the rubber threads, then insert the two rubber threads to the mounting holes in the toilet bowl. • Place the fixing plate over the mounting holes, the plate should be positioned up against the front of the cistern. - Page 7 Step 3: • Ensure the isolation valve for the water supply is in the off position and that the pan the pan is drained of water. Unscrew the inlet pipe from the isolation valve, then connect the T-Valve to the isolation valve and inlet pipe. Tighten all the connections with a wrench.
-
Page 8: Electrical Connection
Step 5: • Prepare the wall ready for the electrical connection by carefully drilling a hole in the wall using an appropriate sized drill bit, then feed the power cable through the hole to the fused spur switch. Warning: Check the chosen wall space for any pipes/cables prior to drilling! Cable Hole Electrical Connection:... -
Page 9: Operation
Operation: Sitting on the seat: • The sensor on the seat responds to the pressure as you sit down. This is indicated by the ‘Clean’ indicator lighting up. • If the automatic deodorization function is on, the deodorization will start to work. Wash and Pressure Functions: Front Wash Rear Wash... -
Page 10: Nozzle Cleaning
Nozzle Cleaning: • Press to enter nozzle cleaning mode, the nozzle will come out and automatically start to wash, afterwards you can manually clean the nozzle if necessary. Press the stop button to end the cleaning mode and the nozzle will retract. •... - Page 11 Automatic Cleaning Operations: Lady Care Strong Wash Reminder Press this button to enter Press this button to enter ‘Lady Care’ mode. The ‘Powerful Washing’ mode. While in ‘Auto’ mode the nozzle extends out and The nozzle extends out front wash, rear wash, water temp is set to red and water pressure is set flush, etc.
-
Page 12: Extra Features
Extra Features: Night Light Power Press this button to turn on the Press this button to enter standby indicator lights and night lights. Press mode (all the lights are o ). Press this button again to turn o the lights. again to turn on the toilet seat (Power light is on). -
Page 13: Troubleshooting
Buzzer: Buzz once Sitting on the seat; all functions are available. Standing up from the seat; parts of the functions are Buzz twice available. Buzz three times or more Fault on the toilet seat. UV Sterilization: Once you leave the toilet seat for 15 seconds, the UV sterilization function will automatically turn on and sterilizes the nozzle for 3 minutes. -
Page 14: Cleaning And Maintenance
Cleaning & Maintenance: Toilet Seat Cleaning: Before you begin ensure the power is turned off at the switch. To maintain the surface finish of your product, wipe the toilet seat regularly using a clean damp cloth, a mild detergent mixture can be used. Do not use abrasive cleaning agents or materials which can strip and scratch the surface. - Page 15 Cleaning the Valve Filter: • Turn off the isolation valve and ensure the cistern and pan is drained of water, then remove the T-Valve from the inlet pipe and filter. Carefully remove the two valve filters from the T-Valve (as shown in the diagram below). Wash away any debris and carefully clean the filters using a soft bristle brush.
-
Page 16: Product Specification
Product Specification: Ambient temp range 4°C-40°C Inlet water temp range 4°C-40°C (Inlet water 220V~50Hz 120V~60Hz Rated voltage temp: 15°C+0.5°C) Rated power 1200W 1200W Water pressure range 0.06MPa - 0.75MPa Water pressure adjustment Adjustable in 4 indicator settings Adjustable in 4 indicator settings: Room temp, 33°C, Water temp adjustment 36°C, 39°C...
