Installation Instructions
V2.09.23

Advertisement

loading
Need help?

Need help?

Do you have a question about the Arezzo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Victorian Plumbing Arezzo

Summary of Contents for Victorian Plumbing Arezzo

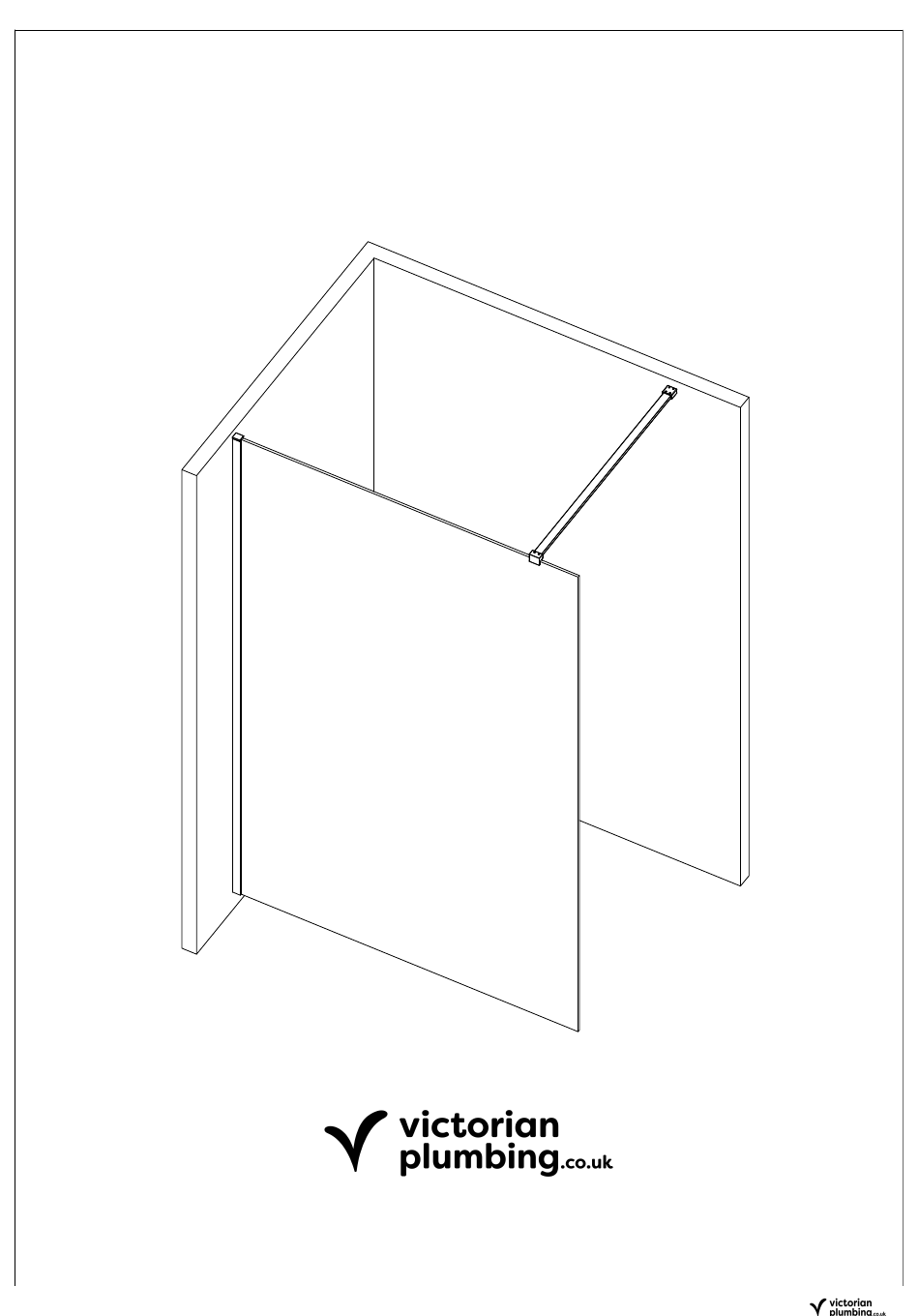

  • Page 1 Installation Instructions V2.09.23...
  • Page 2 Important: Please read the complete instructions before commencing fitting. UNPACK THE BOX AND ENSURE ALL COMPONENTS ARE PRESENT. NO REFUNDS OR REFITTING COST WILL BE GIVEN IF INCOMPLETE OR DAMAGED GOODS ARE FITTED. THE TOUGHENED SAFETY GLASS SHOULD BE HANDLED WITH CARE AS IMPACTS WILL DAMAGE THE GLASS OR ENCLOSURE.

  • Page 3: Tools Required

    Tools Required Power Drill 6mm Masonry Drill Bit Cross Head Screw Driver Tape Measure Pencil Silicone Gun With Sanitary Grade Sealant Spirit Level V2.09.23...
  • Page 4 V2.09.23...
  • Page 5 V2.09.23...
  • Page 6 Size(mm) A(mm) 680-690 780-790 880-890 1000 980-990 1200 1180-1190 1400 1380-1390 V2.09.23...
  • Page 7 V2.09.23...
  • Page 8 V2.09.23...
  • Page 9 EXTERNALLY SILICONE SEAL THE WALL PROFILE WHERE IT MEETS THE WALL AND ALONG THE BOTTOM OF THE GLASS. ALL IN A CONTINUOUS BEAD. DO NOT SILICONE INSIDE THE ENCLOSURE ALLOW THE SILICONE AT LEAST 24 HOURS TO FULLY CURE. AFTERCARE - ENSURE YOU CLEAN YOUR PRODUCT USING A MILD DETERGENT DILUTED IN WATER, REMOVING ANY RESIDUE WITH A SOFT DAMP CLOTH.
  • Page 10 V2.09.23...
  • Page 11 sp01 sp02 V2.09.23...
  • Page 12 V2.09.23...
  • Page 13 Size(mm) A(mm) B(mm) 680-690 780-790 880-890 1000 980-990 1200 1180-1190 1400 1380-1390 V2.09.23...
  • Page 14 sp01 sp02 sp02 sp02 V2.09.23...
  • Page 15 EXTERNALLY SILICONE SEAL THE WALL PROFILE WHERE IT MEETS THE WALL AND ALONG THE BOTTOM OF THE GLASS. ALL IN A CONTINUOUS BEAD. DO NOT SILICONE INSIDE THE ENCLOSURE ALLOW THE SILICONE AT LEAST 24 HOURS TO FULLY CURE. AFTERCARE - ENSURE YOU CLEAN YOUR PRODUCT USING A MILD DETERGENT DILUTED IN WATER, REMOVING ANY RESIDUE WITH A SOFT DAMP CLOTH.
  • Page 16 Safety Information for User & Installer Important information for fitter •It is recommended that only approved/qualified plumbers should install the product. •Incorrect installation of the enclosure will invalidate guarantee. Safety information prior to and during installation Carefully check the product for transport damage prior to installation. Never install damaged panels as there is a risk of spontaneous glass breakage.

  • Page 17: Maintenance Information

    Maintenance Information Service/repair and inspection for safety. After cleaning, check all the moving elements are sufficiently greased, re- grease, if necessary only use acid-free grease. Cleaning Do not use steam cleaners, caustic or aggressive cleaning and scouring agents, cleaners that corrode plastics, or solvents containing acetone or turpentine or neat bleach.
