Victorian Plumbing AREZZO Fitting Instructions Manual
Round concealed manual shower valve with diverter
Hide thumbs
Also See for AREZZO:
- Installation instructions manual (17 pages) ,
- Fitting instructions manual (16 pages) ,
- Installation manual (8 pages)
Related Manuals for Victorian Plumbing AREZZO
Summary of Contents for Victorian Plumbing AREZZO

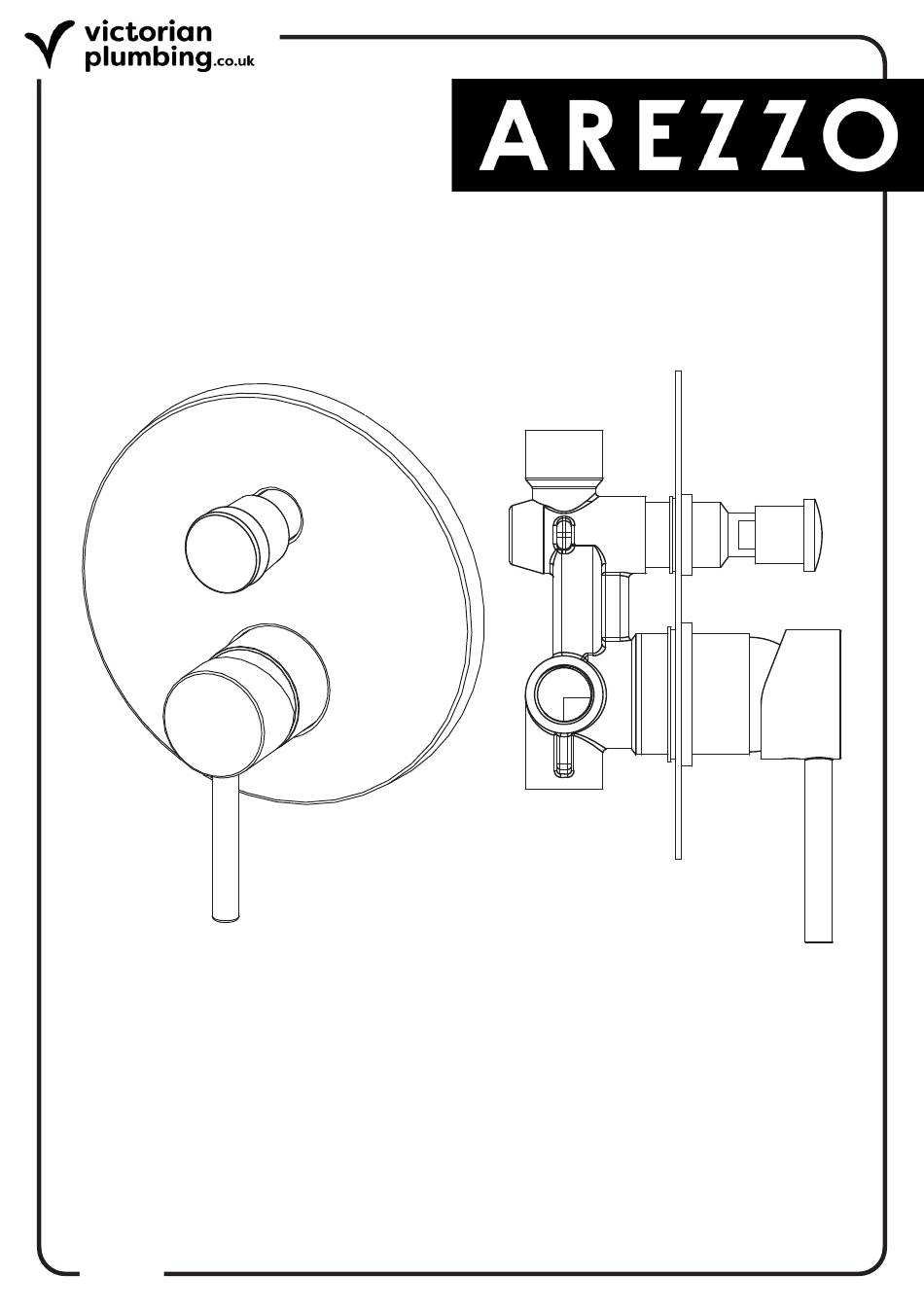

- Page 1 Round Concealed Manual Shower Valve with Diverter Fitting Instructions Please follow them carefully and leave this manual with end user V3.01.25...
-
Page 2: Before You Begin
Before you begin: We recommend that this product is installed by a qualified tradesperson, Victorian Plumbing Ltd. accept no liability for products incorrectly installed, or where the correct testing procedures have not been adhered to, thus resulting in the escape of water and consequential damage. -
Page 3: Installation
Installation: Determine the fixing position for the valve and make a recess in the wall to house the valve. The depth of the recess should be 55mm to 60mm within the finished wall surface to fit the cover plate correctly. Insert the valve into the wall recess, then mark the fixing points with the mounting lugs that are cast on the valve body. - Page 4 Diagram: Outlet Cold Outlet V3.01.25...
- Page 5 Diagrams are for illustration purposes only. Your concealed mixer valve may superficially differ from this drawing however the installation guide steps still apply. V3.01.25...
- Page 6 Operation: Flow Control Cold Diverter Operation Push/Pull Aftercare: Always clean the surface of the valve to keep it bright. Attention: please do not use inappropriate tools such as sharp brushes, rough sponges, scouring pads or corrosive detergent to clean the valve. Please clean the valve by wet cloth and soapy water after each time of usage.
-
Page 7: Troubleshooting
Troubleshooting FAULT POSSIBLE CAUSE Hot and cold supplies have been plumbed the wrong direction. Shower/Tap only runs hot or cold after installation Faulty thermostat. Insufficient water pressure. Check the hot water supply temperature. Shower/Tap does not run hot enough Blockage in the hot supply. Check and clean non-return valves. - Page 8 V3.01.25...
