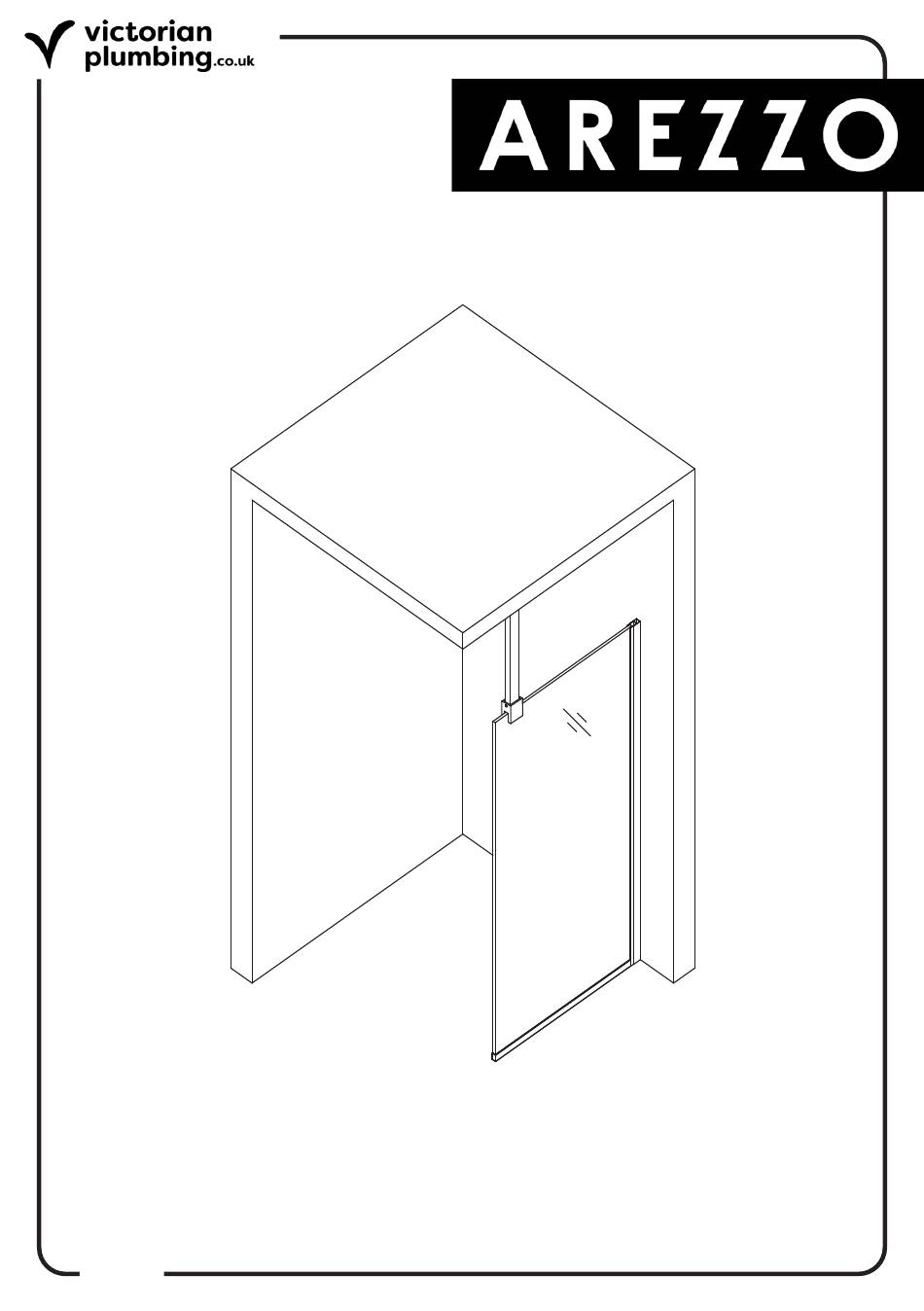

Walk-In Glass Ceiling
Mounted Arm
Fitting Instructions
Please follow them carefully and
leave this manual with end user
V1.12.24

Advertisement

loading
Need help?

Need help?

Do you have a question about the AREZZO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Victorian Plumbing AREZZO

Summary of Contents for Victorian Plumbing AREZZO

  • Page 1 Walk-In Glass Ceiling Mounted Arm Fitting Instructions Please follow them carefully and leave this manual with end user V1.12.24...

  • Page 2: Items Included

    Safety Information for User & Installer Before you begin: We recommend that this product is installed by a qualified tradesperson, Victorian Plumbing Ltd. accept no liability for products incorrectly installed or any damage to the floor, walls, plumbing, glass screen, or personal injury during installation. Incorrect installation of the enclosure will invalidate the guarantee.
  • Page 3 Diagram: Glass Screen *Not Included* Tools Required (Not Included): *Ensure the appropriate PPE is used during installation* Tape Screw Driver Spirit Level Silicone Pencil Drill Measure V1.12.24...
  • Page 4 Step 1: • Measure the height from the top edge of the screen to the ceiling. Then measure the total length of the ceiling mounted arm as shown in the diagram below. Step 2: • Establish the length of the arm required to fit to the ceiling correctly.
  • Page 5 Step 3: • Position the ceiling arm in the desired position on the ceiling, then mark the positions ready for drilling. Ensure the markings are in-line with the glass screen. • Place the arm to one side. Using an appropriate sized drill bit, carefully drill a hole in the ceiling.
  • Page 6 Step 4: • Mount the ceiling arm over the fixing plate and glass screen. Ensure the clear silicone rubber strip is in-between the glass screen and the clamping bracket to avoid damage to the glass. Using the Allen key provided secure the arm bar into position by screwing the grub screws (be careful not to over-tighten).
  • Page 7 Step 5: • Pipe a fine bead of good quality silicone sealant along the upright outer edge of the profile and bottom of the panel (including where the screen and the profile meet.) • Wipe away any excess silicone with a damp cloth and allow 24 hours for the sealant to fully dry.

  • Page 8: Recycling And Disposal

    Cleaning: Always clean the surface of arm to keep it bright. Attention: please do not use inappropriate tools such as sharp brushes, rough sponges, scouring pads or corrosive detergent to clean the arm. Please clean the arm by wet cloth and soapy water. Then rinse the soap out with clean water and dry with a soft cotton cloth.
