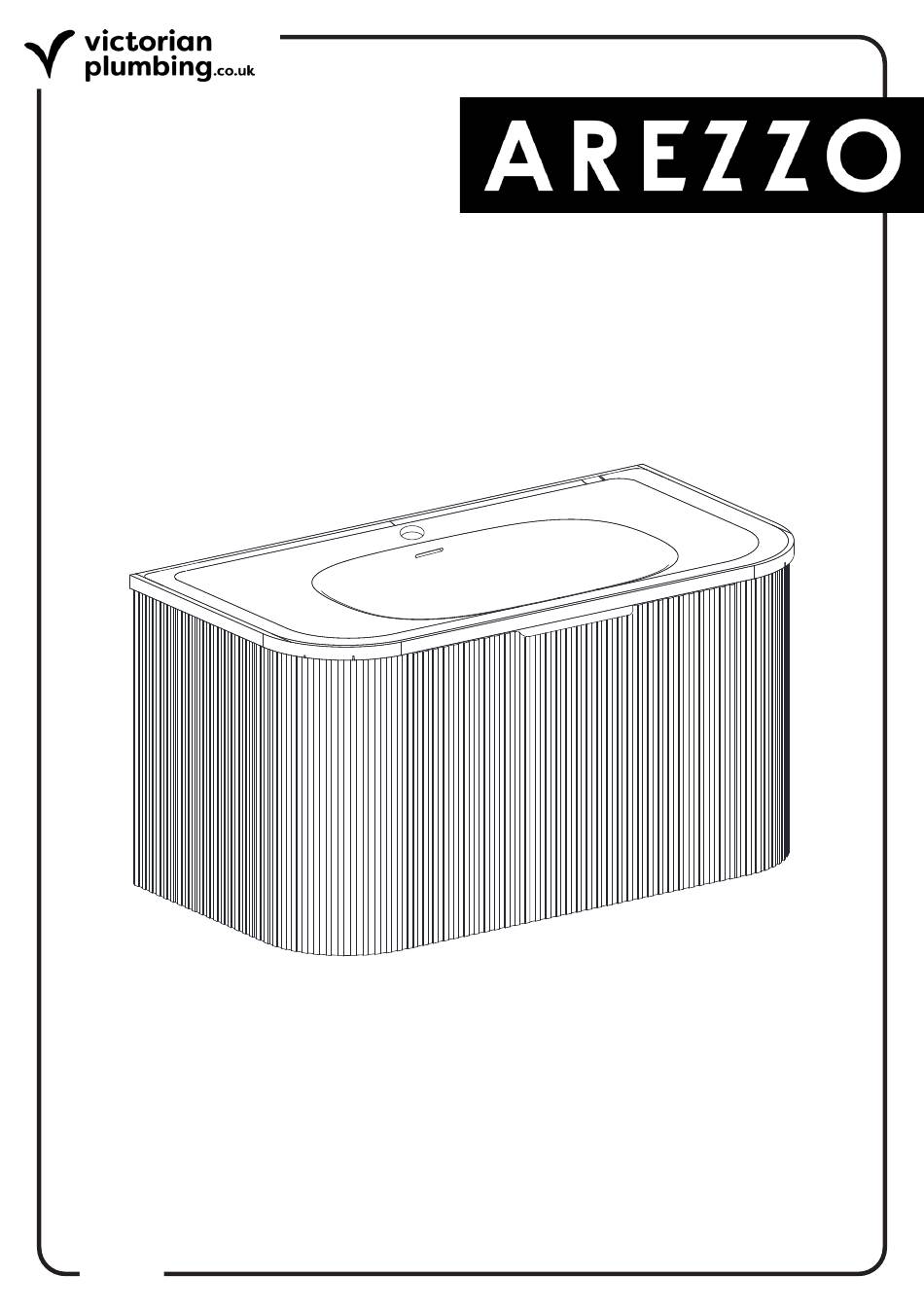

- Page 1 Slatted Curved Vanity Unit with Basin Fitting Instructions Please follow them carefully and leave this manual with end user V1.04.24...
-
Page 2: Before You Begin
Before you begin: We recommend that this product is installed by a qualified tradesperson, Victorian Plumbing Ltd. accept no liability for products incorrectly installed or any damage to the floor, walls, plumbing, vanity cabinet, sink, counter top, or personal injury during installation. - Page 3 Furniture Installation This Instruction covers a variety of topics to help with your installation. Drawer Box Adjustment and Wall Hanging. Diagrams are for illustration purposes only. Your Vanity Unit may superficially differ from these drawings however the installation guide steps still apply. Drawer Box Adjustment: Adjust the height of the...
-
Page 4: Installation
Installation Diagrams are for illustration purposes only. Your Vanity Unit may superficially differ from these drawings however the installation guide steps still apply. Step 1: • Set the ‘Cabinet’ (A) at the desired height, then make a mark across the top of the cabinet to the wall (allowing enough space for the thickness of the ‘sink’.) •... - Page 5 Step 3: • Once the bracket is securely fixed to the wall, mount the ‘Cabinet’ to the ‘Bracket’ ensuring the cabinet is stable. • Mark the pre-drilled holes at the back of the plinth to the wall ready for drilling. Remove the ‘Cabinet’...
- Page 6 Step 5: • Slide the two ‘Drawers’ into the ‘Cabinet’ by slotting the drawers onto the rails (as seen in image below). Refer to the ‘Remove and Re-fit Drawer’ section (Page 3). • To adjust the height of the ‘Drawers’, refer to the ‘Drawer Box Adjustment’ section (Page 3).
-
Page 7: Cleaning And Maintenance
Step 5: Proceed to the installation of the drain trap and water supply lines. Refer to their respective installation instructions for guidance if needed. 24hr Cleaning and Maintenance: Drawers, and Runners: These should be wiped out with a damp soapy cloth and wiped dry with a soft cloth as necessary. - Page 8 www.victorianplumbing.co.uk...
