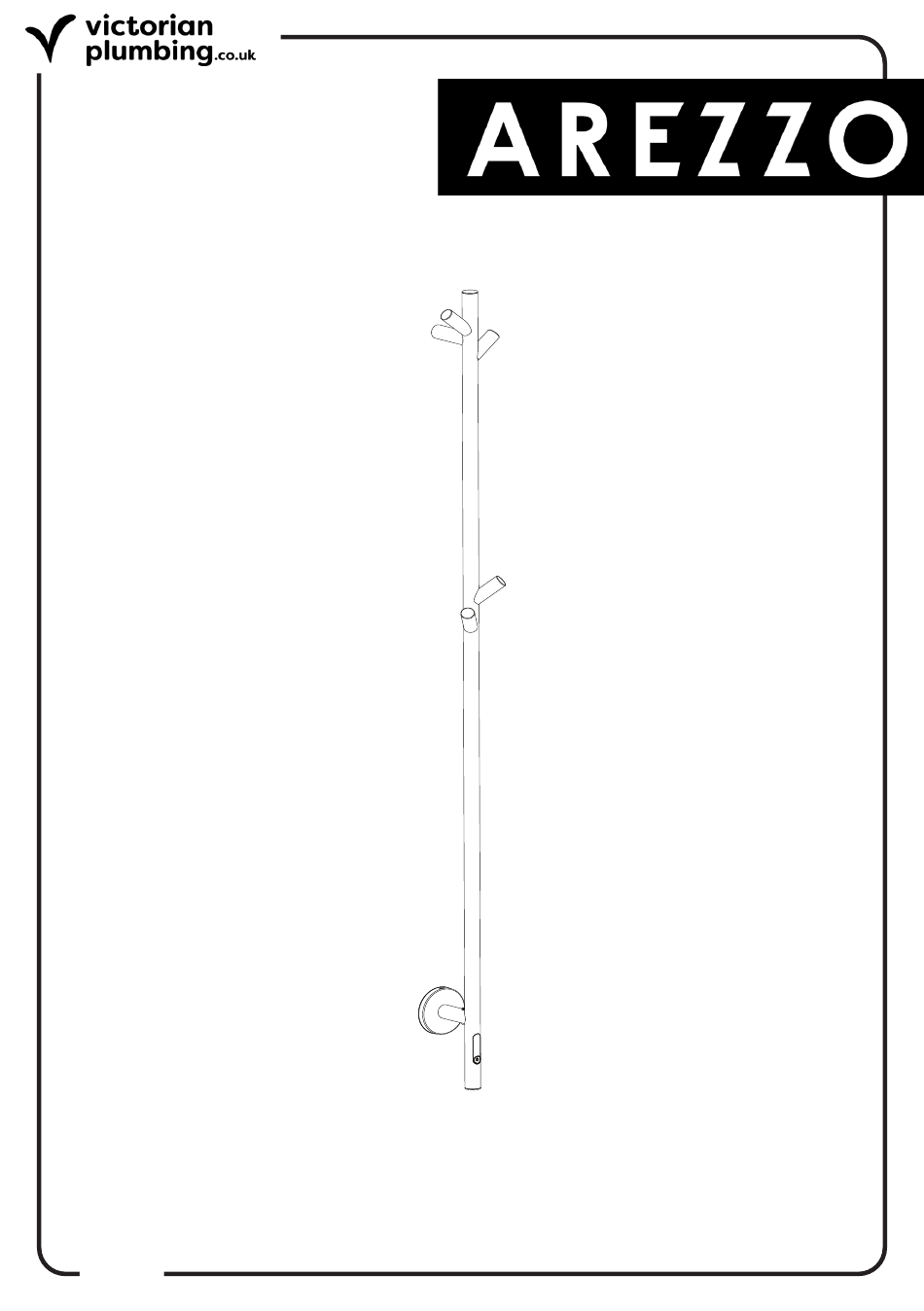

- Page 1 Electric Towel And Robe Hanging Bar Fitting Instructions Please follow them carefully and leave this manual with end user V1.06.24...
- Page 2 Important Information Before installation, please read this guide carefully. We recommend that this product is installed by a qualified tradesperson, Victorian Plumbing Ltd. accept no liability for products incorrectly installed or any damage to the floor, walls, plumbing, heating element, towel heater, or personal injury during installation. Check the chosen wall space for any pipes/cables prior to drilling Observe all local building codes &...
-
Page 3: Technical Information
Technical Information: Electric Supply 230V Heating Output Available Device Protection Class Class I These products are in compliance with 2014/30/EU Electromagnetic Compatibility and 2014/35/EU Low Certification Voltage Directive These products carry CE mark accordingly. Fitting List: A. Bar Heater B. Power Cable C. -
Page 4: Installation
Installation: Diagrams are for illustration purposes only. Your towel heater may superficially differ from this drawing however the installation guide steps still apply. Step 1: • Screw the ‘Bracket’ (C) to the ‘Bar Heater’ (A) using the ‘Bracket Screw’ (D) provided. •... - Page 5 Step 3: • Place the ‘Bracket Mount’ (E) over the centre marking and mark a hole in the wall ready for drilling. Using an appropriate sized drill bit, carefully drill the hole in the wall then insert the ‘Rawl Plug’ (G). •...
-
Page 6: Electrical Connection
Electrical Connection: WARNING: Before you begin, ensure the mains power supply is switched off prior to connection! Connect the bar rail cable and mains supply to a fused spur switch according to the wiring diagram. Ensure that there are no exposed wires upon completed installation. Live is Brown SUPPLY LOAD... -
Page 7: Troubleshooting
Timer for 24-Hours — Pressing the button once will activate the timer function. — Pressing the button to choose the time you want, hold the button for 3 seconds, the indicator light will flash twice. — The towel heater starts heating for the set time and counts down the time. - Page 8 www.victorianplumbing.co.uk V1.06.24...
