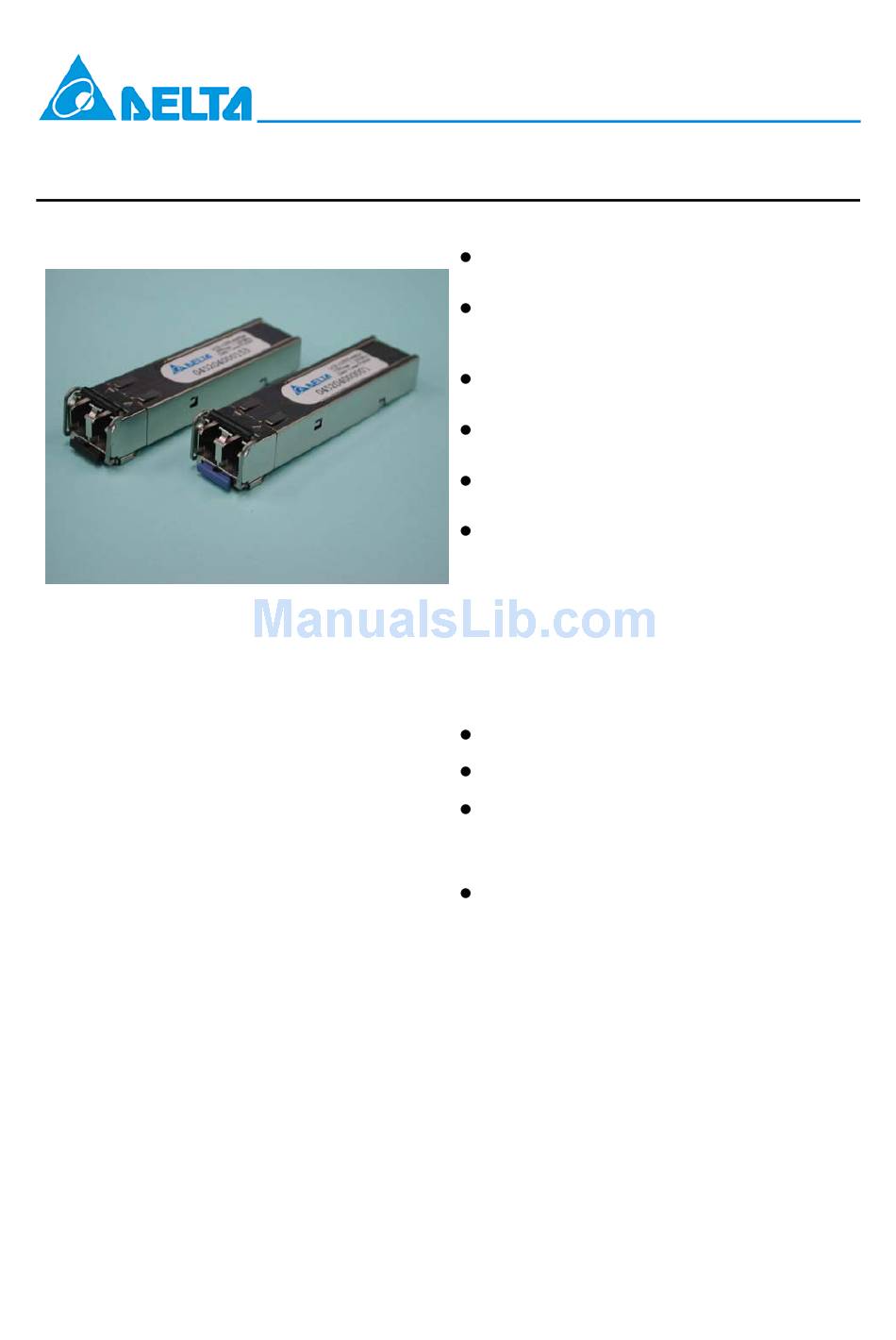

RoHS Compliant Small Form Factor Pluggable Transceiver for Fiber
Channel with Digital Diagnostic Monitoring Function
Description
The LCP-2125 series are hot pluggable 3.3V
Small-Form-Factor transceiver modules designed
expressly
for
applications that require rates up to 2.125Gb/s.
The transceiver is data rate transparent, which
means it can support 2x Fiber channel as well as
GbE (1.25Gb/s) and 1x Fiber channel (1.062Gb/s).
The LCP-2125 series are designed to be
compliant
with
SFF-8472
Agreement (MSA) with digital monitoring functions:
Temperature, V
, TX optical power, TX laser bias
CC
current, and RX received optical power.
The post-amplifier of the LCP-2125 series also
includes a Loss of Signal (LOS) circuit that
provides a TTL logic-high output when the received
optical level is bellow a preset LOS Assert
threshold.
DELTA ELECTRONICS, INC.
high-speed
communication
SFP
Multi-source
FEATURES
Compliant with SFP Transceiver SFF-8472
MSA specification
LCP-2125A4EDR compliant with the
2.125GBd Fiber Channel FC-PI 200-M5-SN-I
Rev.13
Compliant with Specifications for IEEE
802.3z/Gigabit Ethernet
EEPROM with Serial ID and Digital Diagnostic
Functionality
Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Duplex LC Connector interface
Applications
Switch to Switch interface
Switched backplane applications
File server interface
Performance
LCP-2125A4EDR Data Link up to 300m in
50/125μm Multi Mode Fiber
1
Nov., 2006
Rev. 1D
www.deltaww.com
