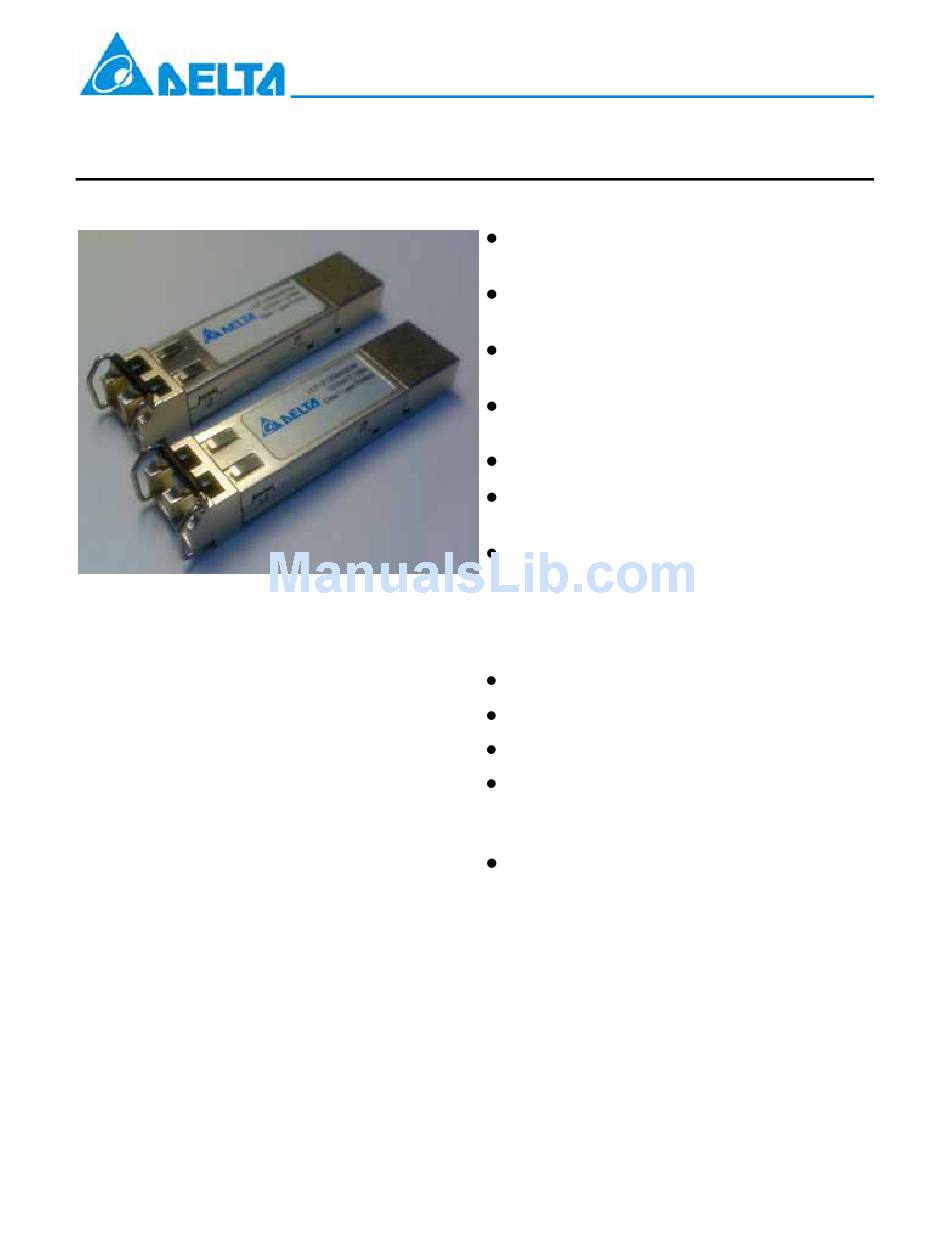

RoHS Compliant Small Form Factor Pluggable Transceiver for Fast
Ethernet and SONET OC-3
Description
The LCP-155A4HSRBx series are hot pluggable
3.3V Small-Form-Factor transceiver module designed
for high-speed communication applications that require
rates of up to 155Mbit/sec. It is compliant with the Fast
Ethernet standards, as well as the SFP Multisource
Agreement (MSA).
The LCP-155A4HSRBx transceivers provide with
the LC receptacle that is compatible with the industry
standard LC connector. The transceiver is also
compatible with industry standard RFT connector and
cage.
The post-amplifier of the LCP-155A4HSRBx also
includes a LOS (Loss Of Signal) circuit that provides a
TTL logic-high output when an unusable optical signal
level is detected.
The LCP-155A4HSRBx transceiver is a Class 1
eye safety product. The optical power levels, under
normal operation, are at eye safe level.
DELTA ELECTRONICS, INC.
FEATURES
Compliant with SFP Transceiver MSA
specification
Compliant with Specifications for IEEE 802.3
100Gase Fast Ethernet
Compliant with Industry Standard RFT
Electrical Connector and Cage
Single + 3.3V Power Supply and TTL Logic
Interface
EEPROM with Serial ID Functionality
Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Duplex LC Connector interface
Applications
100Base Fast Ethernet
Switch to Switch interface
Switched backplane applications
File server interface
Performance
LCP-155A4HSRBx
Data Link up to 2km in 50/125µm Multi Mode Fiber
Data Link up to 1km in 62.5/125µm Multi Mode Fiber
1
2007/11/6
Rev. 0D
www.deltaww.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Delta Electronics LCP-155A4HSRBx Series
Summary of Contents for Delta Electronics LCP-155A4HSRBx Series
- Page 1 LOS (Loss Of Signal) circuit that provides a TTL logic-high output when an unusable optical signal level is detected. The LCP-155A4HSRBx transceiver is a Class 1 eye safety product. The optical power levels, under normal operation, are at eye safe level.
-
Page 2: Absolute Maximum Ratings
3. Pull up to V with a 4.7K – 10K Ohm resistor on host Board 4. Internally AC coupled, but requires a 100 Ohm differential termination at or internal to Serializer/ Deserializer. 5. These are 20%~80% values DELTA ELECTRONICS, INC. Symbol Min. Typ. Max. - Page 3 Optical Characteristics (LCP-155A4HSRBx) =3.135V to 3.465V, Data Rate=125Mbps, PRBS=2 Parameter Transmitter Output Optical Power (Avg.) Optical Extinction Ratio Center Wavelength Spectral Width (RMS) Optical Rise/Fall Time Total Jitter(pk-pk) Transmitter eye mask definition {X1, X2, X3, Y1, Y2, Y3, Y4} Receiver Sensitivity (Avg.)
- Page 4 Transmitter Ground Transmit Data In Inv. Transmit Data In VeeT Transmitter Ground Plug Seq.: Pin engagement sequence during hot plugging. DELTA ELECTRONICS, INC. Function Plug Seq. Note 1 Note 2 Module disables on high or open Note 3, 2 wire serial ID interface...
- Page 5 The inputs will accept differential swings of 500 – 2400 mV (250 – 1200 mV single-ended), though it is recommended that values between 500 and 1200 mV differential (250 – 600 mV single-ended) be used for best EMI performance. DELTA ELECTRONICS, INC. www.deltaww.com 2007/11/6...
- Page 6 Recommend Circuit Schematic Protocol Vcc Tx_Disable Tx_Fault Protocol IC SerDes IC Rx_LOS PLD / PAL DELTA ELECTRONICS, INC. 3.3V RES1 10uF 0.1uF 0.1uF Tx_Disable Tx_Fault TD + TD - VeeT RES1 10uF 0.1uF RD + 100 Ohms* RD - Rx_LOS 3.3V...
- Page 7 Package Outline Drawing for Metal Housing with Bail de-latch Latch Color Identifier Black 2007/11/6 Rev. 0D www.deltaww.com DELTA ELECTRONICS, INC.
- Page 8 TX_DISABLE t_rest reset LOS Assert Time t_loss_on LOS Deassert Time t_loss_off Serial ID Clock Rate f_serial_clock DELTA ELECTRONICS, INC. Min. Max. Unit Time from rising edge of TX_DISABLE to µsec when the optical output falls below 10% of nominal Time from falling edge of TX_DISABLE to...
- Page 9 Example of initialization during hot plugging, TX_DISABLE negated. Detection of transmitter safety fault condition Unsuccessful recovery from safety fault condition DELTA ELECTRONICS, INC. Power on initialization of SFP, TX_DISABLE asserted Initialization during hot plugging of SFP TRANSCEIVER. SFP TX_DISABLE timing during normal operation.
- Page 10 Byte 68-83 (SN): Serial number. Byte 84-91 (DC): Date code. Byte 95 (CS2): Check sum of bytes 64-94. Byte 128-255 had been set hex. 00. DELTA ELECTRONICS, INC. DC Note 3 CS1 Note 1 SN Note 2 CS2 Note 4 2007/11/6 Rev.
-
Page 11: Regulatory Compliance
Ordering information for SFP modules LCP-155A4HSRBx Temperature Blank: -5 to +70 degree C H: -10 to +85 degree C T: -40 to +85 degree C DELTA ELECTRONICS, INC. Reference (1) Satisfied with electrical characteristics of product spec. (2) No physical damage CDRH File # 0321539-00 TUV Certificate No. -
Page 12: Revision History
Oct.16 2007 Modified the Byte6 of A0h from 00h to 20h Add the total jitter specification of TX Oct. 23 2007 Add latch color identifier Modify the Byte5,Byte6,Byte11 and Byte12 of A0h. Nov. 06, 2007 Modify the Byte 12 from 02h to 01h DELTA ELECTRONICS, INC. www.deltaww.com 2007/11/6 Rev. 0D...
