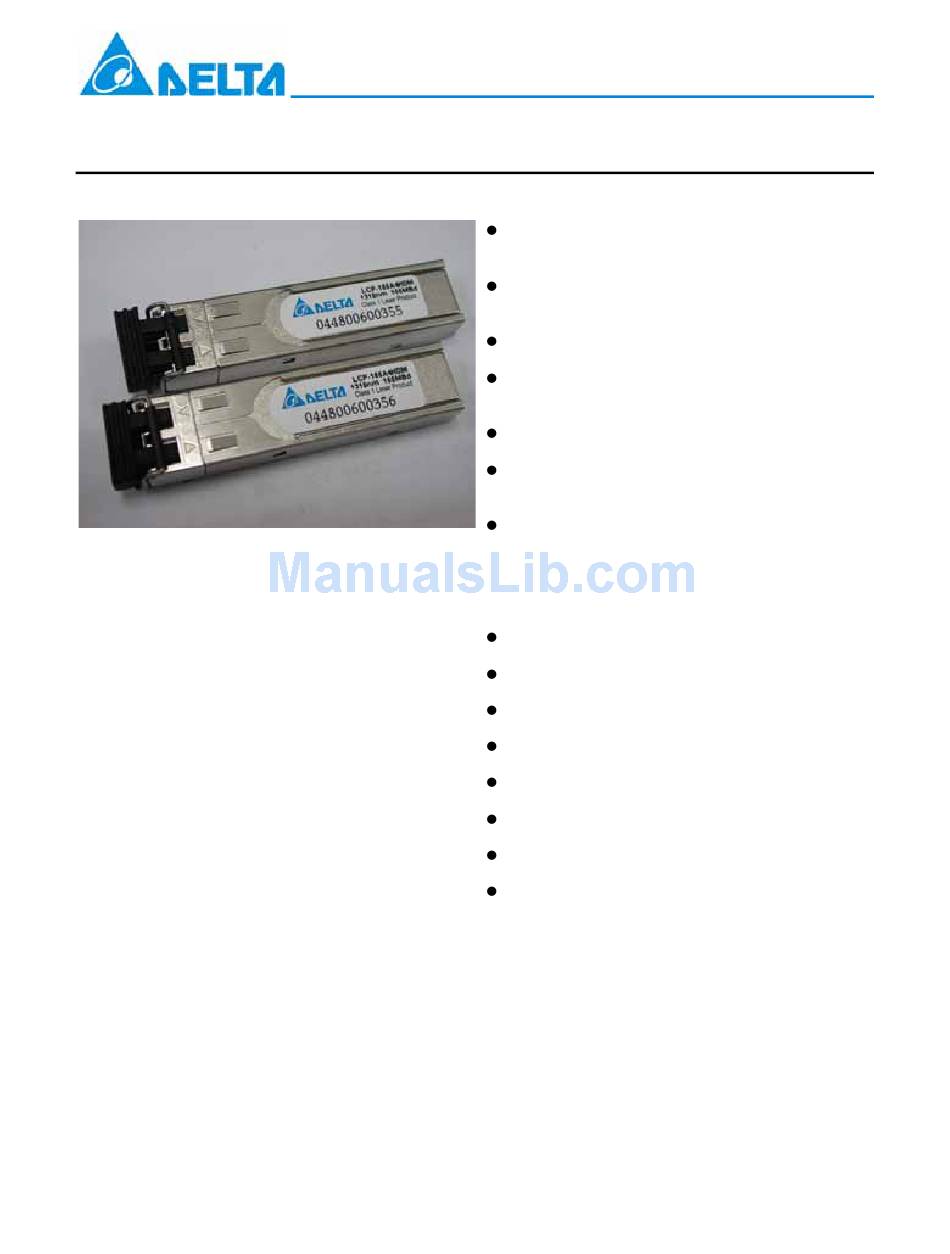

RoHS Compliant Small Form Factor Pluggable Transceiver RoHS
Compliant for ESCON, Fast Ethernet, ATM, SONET OC-3/SDH STM-1
Description
The LCP-200A4HSR is a hot pluggable 3.3V
Small-Form-Factor transceiver module designed
expressly
for
high-speed
applications
that
require
200Mbit/sec. It is compliant with the SFP
Multi-source Agreement.
The LCP-200A4HSR transceivers provide with
the LC receptacle that is compatible with the
industry standard LC connector. The transceiver
is also compatible with industry standard RFT
connector and cage.
The transmitter section consists of a 1310nm
LED in an optical subassembly (OSA) while the
receiver consists of InGaAs PIN photodiode
mounted
together
preamplifier. The post-amplifier also includes a
LOS (Loss Of Signal) circuit that provides a TTL
logic-high output when an unusable optical
signal level is detected.
The LCP-200A4HSR transceiver is a Class 1
eye safety product. The optical power levels,
under normal operation, are at eye safe level.
DELTA ELECTRONICS, INC.
communication
rates
of
up
with
a
trans-impedance
FEATURES
Compliant with SFP Transceiver MSA
specification
Compliant with Industry Standard RFT
Electrical Connector and Cage
1310nm LED Source Technology
Single + 3.3V Power Supply and TTL Logic
Interface
EEPROM with Serial ID Functionality
Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Duplex LC Connector interface
Applications
ESCON
SONET OC-3/SDH STM-1
to
ATM Network
Fast Ethernet
Switch to Switch interface
Switched backplane applications
File server interface
Data Link up to 2km in 62.5/125um Multi Mode
Fiber
1
Aug., 2006
Rev. 0A
www.deltaww.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCP-200A4HSR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Delta Electronics LCP-200A4HSR

Summary of Contents for Delta Electronics LCP-200A4HSR

  • Page 1 RoHS Compliant Small Form Factor Pluggable Transceiver RoHS Compliant for ESCON, Fast Ethernet, ATM, SONET OC-3/SDH STM-1 Description The LCP-200A4HSR is a hot pluggable 3.3V Small-Form-Factor transceiver module designed expressly high-speed applications that require rates 200Mbit/sec. It is compliant with the SFP Multi-source Agreement.

  • Page 2: Absolute Maximum Ratings

    2. Pull up to V with a 4.7K – 10KΩ resistor on host Board 3. Internally AC coupled, but requires a 100 Ohm differential termination at or internal to Serializer/ Deserializer. 4. These are 20%~80% values. DELTA ELECTRONICS, INC. Symbol Min. Typ. Max.

  • Page 3: Optical Characteristics

    LOS-Deasserted (Avg.) LOS-Asserted (Avg.) LOS-Hysteresis Overload Notes: 1. These are unfiltered 10%~90% values 2. The sensitivity is provided at a BER of 1×10 -1 PRBS and ER=9dB. DELTA ELECTRONICS, INC. -1 NRZ, 62.5/125um MMF) Symbol Min. Typ. Max. 1310 λ...
  • Page 4 Transmitter Ground Transmit Data In Inv. Transmit Data In VeeT Transmitter Ground Plug Seq.: Pin engagement sequence during hot plugging. DELTA ELECTRONICS, INC. Function Plug Seq. Note 1 Note 2 Module disables on high or open Note 3, 2 wire serial ID interface...
  • Page 5 The inputs will accept differential swings of 500 – 2400 mV (250 – 1200 mV single-ended), though it is recommended that values between 500 and 1200 mV differential (250 – 600 mV single-ended) be used for best EMI performance. DELTA ELECTRONICS, INC. www.deltaww.com Aug., 2006...
  • Page 6 Recommend Circuit Schematic Protocol Vcc Tx_Disable Protocol IC SerDes IC Rx_LOS PLD / PAL DELTA ELECTRONICS, INC. 3.3V 10uF 0.1uF VccT 0.1uF Tx_Disable Tx_Fault TD + TD - VeeT VccR RES1 10uF 0.1uF RD + 100 Ohms* RD - Rx_LOS 3.3V...
  • Page 7 Package Outline Drawing for Metal Housing with Bail de-latch Aug., 2006 Rev. 0A www.deltaww.com DELTA ELECTRONICS, INC.
  • Page 8 LOS Deassert Time t_loss_off Serial ID Clock Rate f_serial_clock LCP-200A4HSR EEPROM Serial ID Memory Contents (2-Wire Address A0h) Address Hex ASCII Address Hex ASCII Address Hex ASCII Address Hex ASCII Address Hex ASCII Address Hex ASCII Notes: Byte 63(CS1): Check sum of bytes 0-62.

  • Page 9: Regulatory Compliance

    : Fiber A : Multi-mode 1310nm : Power Supply Voltage and SD Level 4 : 3.3V, TTL SD Level : Distance H : 2km DELTA ELECTRONICS, INC. Reference (1) Satisfied with electrical characteristics of product spec. (2) No physical damage CDRH File # 0321539-00 TUV Certificate No.
