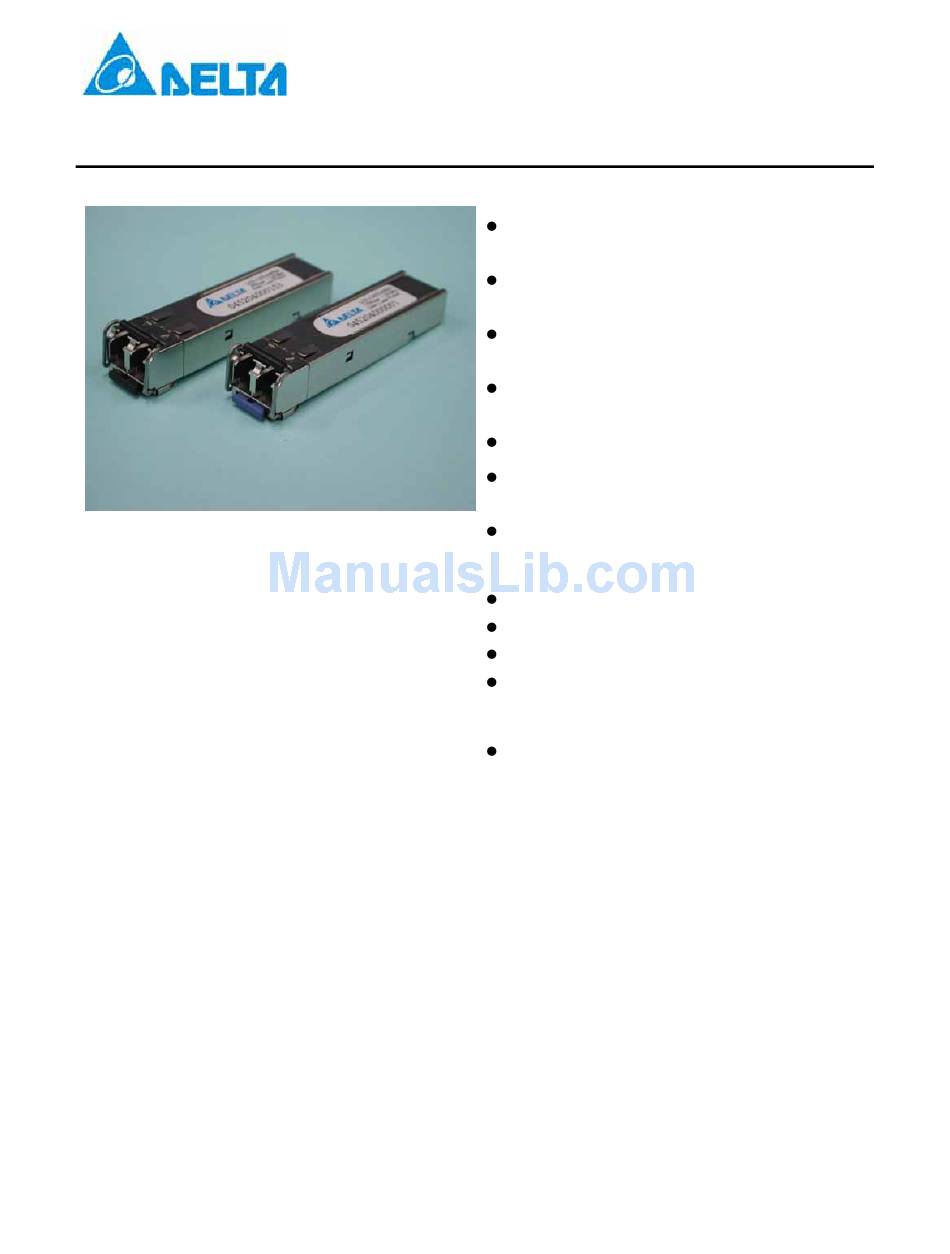

RoHS Compliant Multimode SFP Transceiver for GbE and Fiber
Channel
Description
The
LCP-1250A4FDRx
pluggable 3.3V Small-Form-Factor transceiver
modules designed expressly for high-speed
communication applications that require rates up
to 1.25Gb/s.
The transceiver is data rate
transparent, which means it can support GbE
(1.25Gb/s)
as
well
(1.062Gb/s) operations
The LCP-1250A4FDRx series are designed to
be compliant with SFF-8472 SFP Multi-source
Agreement
(MSA)
monitoring functions: Temperature, V
optical power, TX laser bias current, and RX
received optical power.
The post-amplifier of the LCP-1250A4FDRx
series also includes a Loss of Signal (LOS) circuit
that provides a TTL logic-high output when the
received optical level is below a preset LOS
Assert threshold.
DELTA ELECTRONICS, INC.
series
are
hot
as
1x
Fiber
channel
with
digital
diagnostic
, TX
CC
FEATURES
Compliant with SFP Transceiver SFF-8472
MSA specification with internal calibration
Compliant with Specifications for IEEE
802.3z/Gigabit Ethernet
Compliant with the 1.0625GBd Fiber Channel
FC-PI 100-M5-SN-I Rev.13
Single + 3.3V Power Supply and TTL Logic
Interface
EEPROM with Serial ID Functionality
Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Duplex LC Connector interface
Applications
Gigabit Ethernet
Switch to Switch interface
Switched backplane applications
File server interface
Performance
850nm VCSEL Link up to 550m in 50/125µm
Multi Mode Fiber
1
Oct., 2006
Rev. 6F
www.deltaww.com
Advertisement
Table of Contents
Related Manuals for Delta Electronics Multimode SFP Transceiver LCP-1250A4FDRx
Summary of Contents for Delta Electronics Multimode SFP Transceiver LCP-1250A4FDRx
- Page 1 Loss of Signal (LOS) circuit that provides a TTL logic-high output when the received optical level is below a preset LOS Assert threshold. DELTA ELECTRONICS, INC. FEATURES Compliant with SFP Transceiver SFF-8472 MSA specification with internal calibration Compliant with Specifications for IEEE 802.3z/Gigabit Ethernet...
-
Page 2: Absolute Maximum Ratings
1. Internally AC coupled and terminated to 100Ohm differential load. 2. Pull up to V on host Board 3. Internally AC coupled, but requires a 100Ohm differential termination at or internal to Serializer/ Deserializer. 4. These are 20%~80% values DELTA ELECTRONICS, INC. Symbol Min. Typ. Max. Symbol Min. -
Page 3: Optical Characteristics
Notes: 1. These are unfiltered 20%~80% values 2. The sensitivity is provided at a BER of 1×10 -1 PRBS and ER=9dB. Mask of the eye diagram for the optical transmit signal DELTA ELECTRONICS, INC. -1 NRZ) Symbol Min. Typ. Max. - Page 4 Transmitter Ground Transmit Data In Inv. Transmit Data In VeeT Transmitter Ground Plug Seq.: Pin engagement sequence during hot plugging. DELTA ELECTRONICS, INC. Function Plug Seq. Note 1 Note 2 Module disables on high or open Note 3, 2 wire serial ID interface...
- Page 5 The inputs will accept differential swings of 500 – 2400 mV (250 – 1200 mV single-ended), though it is recommended that values between 500 and 1200 mV differential (250 – 600 mV single-ended) be used for best EMI performance. DELTA ELECTRONICS, INC. www.deltaww.com Oct., 2006...
- Page 6 Recommend Circuit Schematic Protocol Vcc Tx_Disable Tx_Fault Protocol IC SerDes IC Rx_LOS PLD / PAL DELTA ELECTRONICS, INC. 3.3V RES1 10uF 0.1uF 0.1uF Tx_Disable Tx_Fault TD + TD - VeeT RES1 10uF 0.1uF RD + 100 Ohms* RD - Rx_LOS 3.3V...
-
Page 7: Package Outline Drawing
Package Outline Drawing Oct., 2006 Rev. 6F www.deltaww.com DELTA ELECTRONICS, INC. - Page 8 Time from fault to TX fault on. Time TX Disable must be held high to reset TX_Fault 6) Time from LOS state to Rx LOS assert 7) Time from non-LOS state to Rx LOS deassert DELTA ELECTRONICS, INC. Symbol Min. t_off...
- Page 9 1) Write the password (11h, 11h, 11h, 11h) on the bytes of 123-126 of address A2h then the address of bytes 128-255 (User Writable) can be read and written. DELTA ELECTRONICS, INC. 2 wire address 1010001 X (A2h) Alarm and Warning Thresholds...
- Page 10 Byte 60-61: The center wavelength of transmitter Byte 63: Check sum of bytes 0-62. Byte 68-83: Serial number. Byte 84-91: Date code. Byte 95: Check sum of bytes 64-94. DELTA ELECTRONICS, INC. Address ASCII Note 4 Note 4 Note 5...
- Page 11 3) P: Operating optical power of transmitter at room temperature. 4) P : Overload optical power of receiver : Sensitivity optical power of receiver 5) Byte 95 contains the low order 8bits of sum of bytes 0-94 DELTA ELECTRONICS, INC. Name Value (Dec.) (MAX.)+15 (MIN.) (MAX.)+10...
- Page 12 RX Optical Power Notes: Temperature is measured internal to the transceiver 2) Voltage is measured internal to the transceiver DELTA ELECTRONICS, INC. Description Digital state of the Tx disable input pin Read/ Write bit that allow software disable of laser Digital state of the Tx fault output pin Digital state of the LOS output pin.
-
Page 13: Regulatory Compliance
Ordering information for SFP modules LCP-1250A4FX : Digital Diagnostic Function S: without digital diagnostic function D: with digital diagnostic function RoHS compliance R: RoHS Compliant DELTA ELECTRONICS, INC. Reference Qty’ (1) Satisfied with electrical characteristics of product spec. (2) No physical damage : Temperature... -
Page 14: Revision History
Aug., 2006 1. Modify operating temperature range Aug., 2006 1. Update A2h design Oct., 2006 1. Add the description of password for bytes 128-255 (User Writable) of address A2h can be read and written. DELTA ELECTRONICS, INC. www.deltaww.com Oct., 2006 Rev. 6F...
