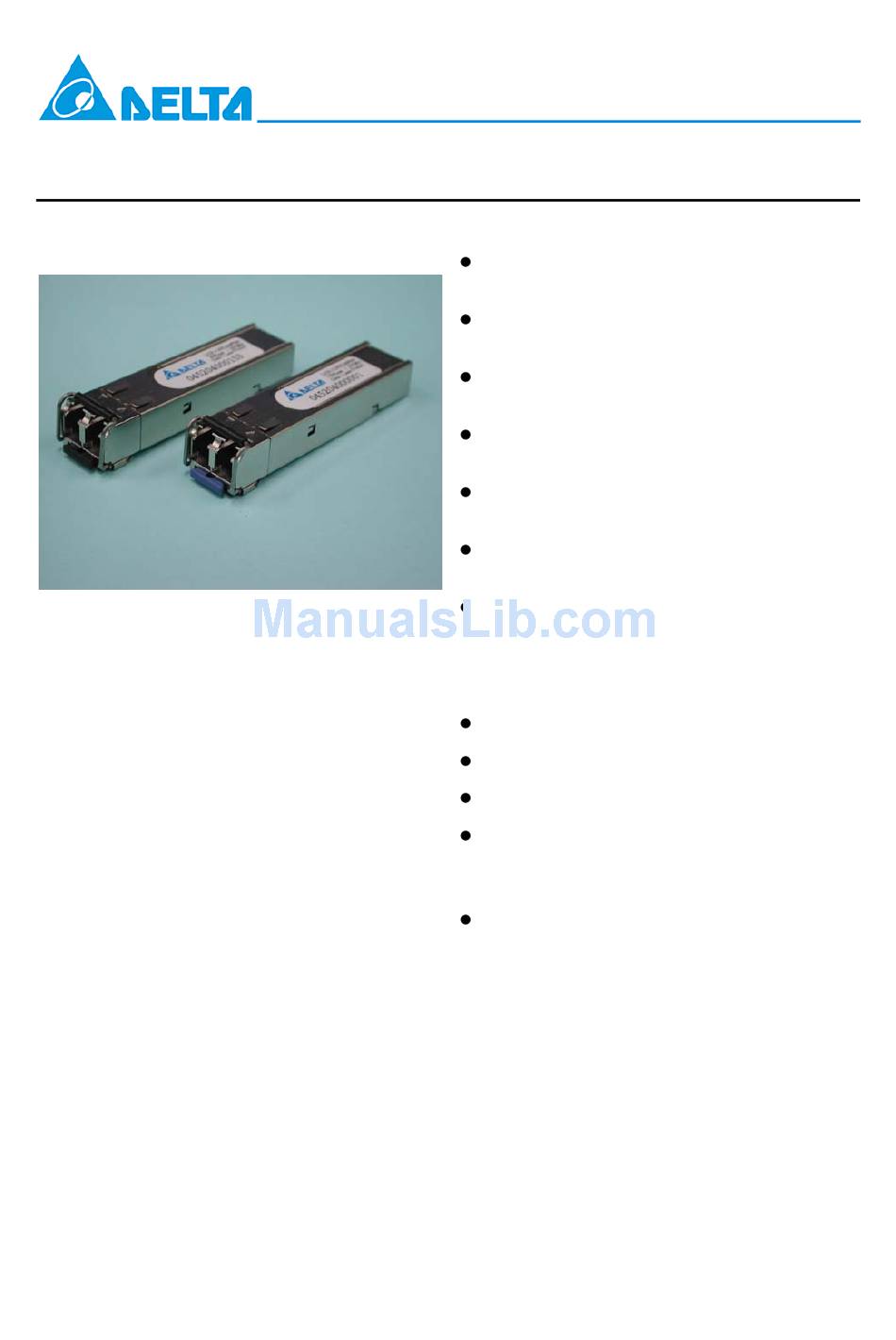

RoHS Compliant Multirate Small Form Factor Pluggable Transceiver
for SONET OC-48/SDH STM-16 with Digital Diagnostic Function
Description
The LCP-2488A4EDRxM is hot pluggable
3.3V
Small-Form-Factor
designed expressly for high-speed communication
applications that require rates up to 2.5Gb/s. The
transceiver is data rate transparent, which means it
can comply with Gigabit Ethernet as specified in
IEEE Std 802.3 and Fibre Channel FC-PI 13.0.
They are compatible with SONET OC-48, SONET
OC-12 and SONET OC-3 standards.
The LCP-2488A4EDRxM is designed to be
compliant
with
SFF-8472
Agreement (MSA) with five digital monitoring
functions: Temperature, V
laser bias current, and RX received optical power.
The post-amplifier of the LCP-2488A4EDRxM
also includes a Loss of Signal (LOS) circuit that
provides a TTL logic-high output when the received
optical level is below a preset LOS Assert
threshold.
DELTA ELECTRONICS, INC.
transceiver
modules
SFP
Multi-source
, TX optical power, TX
CC
FEATURES
Compliant with SFP Transceiver SFF-8472
MSA specification with internal calibration
Compliant with the 2.125GBd Fiber Channel
FC-PI 200-M5-SN-I Rev.13
Compliant with the 1.0625GBd Fiber Channel
FC-PI 100-M5-SN-I Rev.13
Compliant with Specifications for IEEE
802.3z/Gigabit Ethernet
Single +3.3V Power Supply and TTL Logic
Interface
Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Duplex LC Connector interface
Applications
SONET OC-48/STM-1
SONET OC-12/STM-4
SONET OC-3/STM-16
Gigabit Ethernet/ Fibre Channel
Performance
LCP-2488A4EDRxM Data Link up to 300m in
50/125μm Multi-Mode Fiber
1
LCP-2488A4EDRxM
Nov., 2006
Rev. 0A
www.deltaww.com
Advertisement
Table of Contents
Related Manuals for Delta Electronics LCP-2488A4EDRxM
Summary of Contents for Delta Electronics LCP-2488A4EDRxM
- Page 1 IEC 60825-1 and IEC 60825-2 Duplex LC Connector interface Applications SONET OC-48/STM-1 modules SONET OC-12/STM-4 SONET OC-3/STM-16 Gigabit Ethernet/ Fibre Channel Performance LCP-2488A4EDRxM Data Link up to 300m in 50/125μm Multi-Mode Fiber Multi-source LCP-2488A4EDRxM Nov., 2006 Rev. 0A www.deltaww.com...
-
Page 2: Absolute Maximum Ratings
1. Internally AC coupled and terminated to 100Ohm differential load. 2. Pull up to V on host Board 3. Internally AC coupled, but requires a 100 Ohm differential termination at or internal to Serializer/ Deserializer. 4. These are 20%~80% values DELTA ELECTRONICS, INC. Symbol Min. Typ. Symbol Min. -
Page 3: Optical Characteristics
-0.25 -0.25 Optical Pulse Mask with Bessel Filter Specified in ITU-T G.957 Optical Pulse Mask with Bessel Filter Specified in ITU-T G.957 Mask of the eye diagram for the optical transmit signal DELTA ELECTRONICS, INC. -1 NRZ) Symbol Min. Typ. - Page 4 Transmitter Power VeeT Transmitter Ground Transmit Data In Inv. Transmit Data In VeeT Transmitter Ground Plug Seq.: Pin engagement sequence during hot plugging. DELTA ELECTRONICS, INC. Function Plug Seq. LCP-2488A4EDRxM Notes Note 1 Note 2 Module disables on high or open...
- Page 5 The inputs will accept differential swings of 500 – 2400 mV (250 – 1200 mV single-ended), though it is recommended that values between 500 and 1200 mV differential (250 – 600 mV single-ended) be used for best EMI performance. DELTA ELECTRONICS, INC. LCP-2488A4EDRxM www.deltaww.com Nov., 2006...
- Page 6 Recommend Circuit Schematic Protocol Vcc Tx_Disable Tx_Fault Protocol IC SerDes IC Rx_LOS PLD / PAL DELTA ELECTRONICS, INC. 3.3V RES1 10uF 0.1uF Tx_Disable Tx_Fault TD + TD - VeeT RES1 10uF 0.1uF RD + 100 Ohms* RD - Rx_LOS 3.3V...
-
Page 7: Package Outline Drawing
LCP-2488A4EDRxM Package Outline Drawing Nov., 2006 Rev. 0A www.deltaww.com DELTA ELECTRONICS, INC. - Page 8 Time from fault to TX fault on. Time TX Disable must be held high to reset TX_Fault Time from LOS state to Rx LOS assert 7) Time from non-LOS state to Rx LOS deassert DELTA ELECTRONICS, INC. Symbol Min. t_off...
- Page 9 Note: 1) Write the password (11h, 11h, 11h, 11h) on the bytes of 123-126 of address A2h then the address of bytes 128-255 (User Writable) can be read and written. DELTA ELECTRONICS, INC. LCP-2488A4EDRxM 2 wire address 1010001 X (A2h)
- Page 10 3) Byte 17: Link length supported for 62.5/125μm MM fiber, units of 10 m. 4) Byte 40-55: Delta part number 5) Byte 60-61: The center wavelength of transmitter 6) Byte 63: Check sum of bytes 0-62 7) Byte 68-83: Serial number DELTA ELECTRONICS, INC. Address ASCII Note 5 Note 5...
- Page 11 2) I : Operating current at room temperature. The min. setting current is 0 mA. 3) P: Operating optical power of transmitter at room temperature. 4) P : Overload optical power of receiver DELTA ELECTRONICS, INC. Name Value (Dec.) (MAX.)+15 (MAX.)+10 (MIN.)+10...
- Page 12 Power Supply Voltage TX Bias Current TX Optical Power RX Optical Power Notes: DELTA ELECTRONICS, INC. Name Digital state of the Tx disable input pin Read/ Write bit that allow software disable of laser Digital state of the Tx fault output pin Digital state of the LOS output pin.
-
Page 13: Regulatory Compliance
: Power Supply Voltage and SD Level 4: 3.3V, TTL SD Level Distance E: 300m Digital Diagnostic Function D: DDM series, with digital diagnostic function DELTA ELECTRONICS, INC. Reference Qty’ FCC Class B EN 55022 Class B CISPR 22 EN 61000-4-3...
