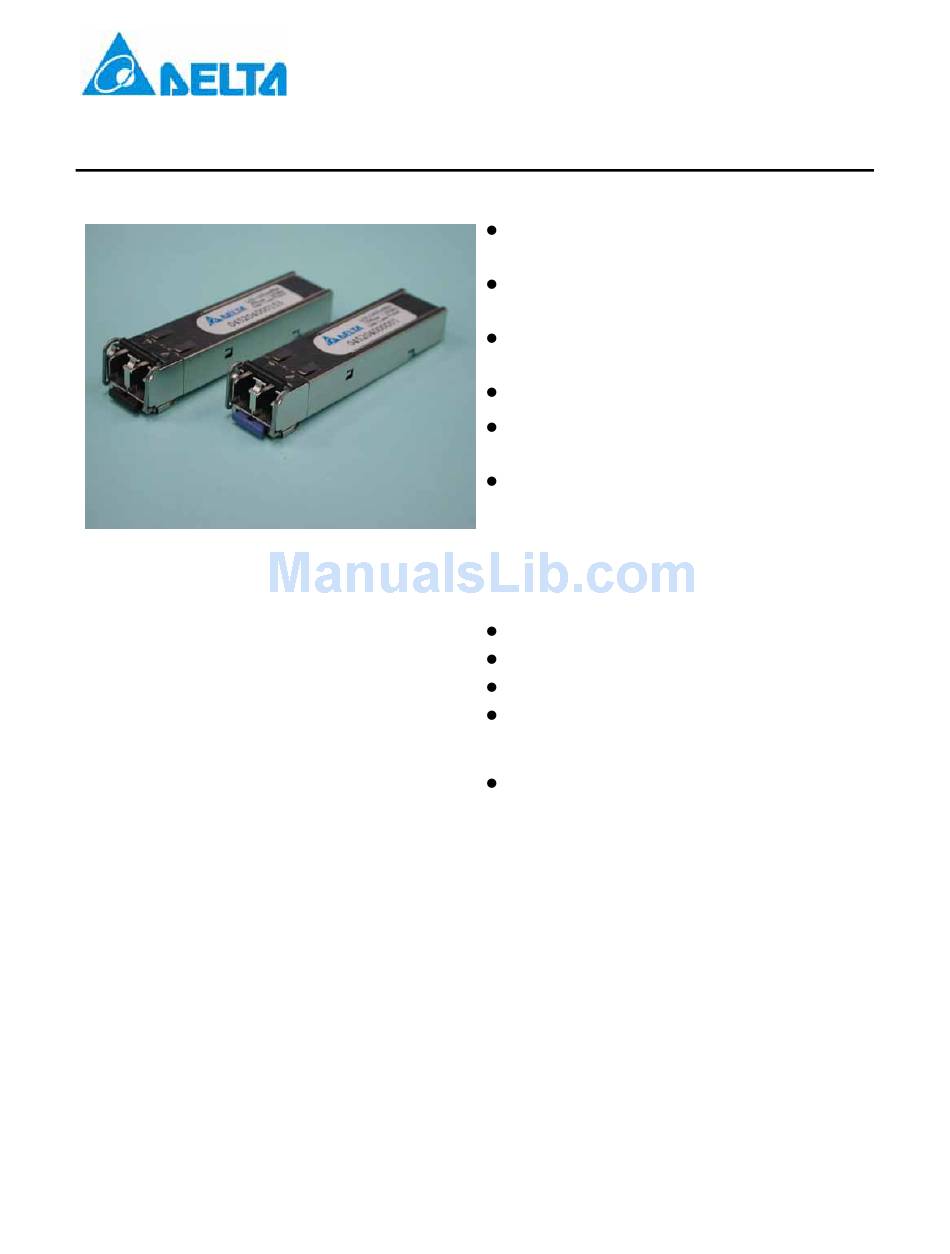

RoHS Compliant Single Mode SFP Transceiver for GbE and Fiber
Channel
Description
The LCP-1250B4MDRx is hot pluggable 3.3V
Small-Form-Factor transceiver modules designed
expressly
for
high-speed
applications that require rates up to 1.25Gb/s.
The transceiver is data rate transparent, which
means it can support GbE (1.25Gb/s) as well as
1x Fiber channel (1.062Gb/s) operations.
The LCP-1250B4MDRx is designed to be
compliant with SFP Multi-source Agreement
(MSA).
Digital diagnostic monitoring functions
(Temperature, V
, TX optical power, TX laser
CC
bias current, and RX received optical power)
compliant with SFF-8472 are also available. See
order information for details.
The post-amplifier of the LCP-1250B4MDRx
also includes a Loss of Signal (LOS) circuit that
provides a TTL logic-high output when the
received optical level is below a preset LOS
Assert threshold.
DELTA ELECTRONICS, INC.
FEATURES
Compliant with SFP Transceiver SFF-8472
MSA specification with internal calibration
Compliant with Specifications for IEEE
802.3z/Gigabit Ethernet
Single + 3.3V Power Supply and TTL Logic
Interface
EEPROM with Serial ID Functionality
Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Duplex LC Connector interface
Applications
Gigabit Ethernet
Switch to Switch interface
communication
Switched backplane applications
File server interface
Performance
LCP-1250B4MDRx: 1310nm DFB laser, 19dB
link budget (40km)
1
2007/11/29
Rev. 0A
www.deltaww.com
Advertisement
Table of Contents
Related Manuals for Delta Electronics Single Mode SFP Transceiver LCP-1250B4MDRx
Summary of Contents for Delta Electronics Single Mode SFP Transceiver LCP-1250B4MDRx
- Page 1 Loss of Signal (LOS) circuit that provides a TTL logic-high output when the received optical level is below a preset LOS Assert threshold. DELTA ELECTRONICS, INC. FEATURES Compliant with SFP Transceiver SFF-8472 MSA specification with internal calibration Compliant with Specifications for IEEE 802.3z/Gigabit Ethernet...
-
Page 2: Absolute Maximum Ratings
1. Internally AC coupled and terminated to 100Ohm differential load. 2. Pull up to V on host Board 3. Internally AC coupled, but requires a 100Ohm differential termination at or internal to Serializer/ Deserializer. 4. These are 20%~80% values DELTA ELECTRONICS, INC. Symbol Min. Typ. Max. Symbol Min. -
Page 3: Optical Characteristics
Notes: 1. These are unfiltered 20%~80% values 2. The sensitivity is provided at a BER of 1×10 -1 PRBS and ER=9dB. Mask of the eye diagram for the optical transmit signal DELTA ELECTRONICS, INC. -1 NRZ) Symbol Min. Typ. Max. - Page 4 Transmitter Ground Transmit Data In Inv. Transmit Data In VeeT Transmitter Ground Plug Seq.: Pin engagement sequence during hot plugging. DELTA ELECTRONICS, INC. Function Plug Seq. Note 1 Note 2 Module disables on high or open Note 3, 2 wire serial ID interface...
- Page 5 The inputs will accept differential swings of 500 – 2400 mV (250 – 1200 mV single-ended), though it is recommended that values between 500 and 1200 mV differential (250 – 600 mV single-ended) be used for best EMI performance. DELTA ELECTRONICS, INC. www.deltaww.com 2007/11/29...
- Page 6 Recommend Circuit Schematic Protocol Vcc Tx_Disable Tx_Fault Protocol IC SerDes IC Rx_LOS PLD / PAL DELTA ELECTRONICS, INC. 3.3V RES1 10uF 0.1uF 0.1uF Tx_Disable Tx_Fault TD + TD - VeeT RES1 10uF 0.1uF RD + 100 Ohms* RD - Rx_LOS 3.3V...
-
Page 7: Package Outline Drawing
Package Outline Drawing 2007/11/29 Rev. 0A www.deltaww.com DELTA ELECTRONICS, INC. - Page 8 Time from fault to TX fault on. Time TX Disable must be held high to reset TX_Fault 6) Time from LOS state to Rx LOS assert 7) Time from non-LOS state to Rx LOS deassert DELTA ELECTRONICS, INC. Symbol Min. t_off...
- Page 9 (96 bytes) Vender Specific (32 bytes) Reserved in SFP MSA (128 bytes) Digital Diagnostic Memory Map Specific Data Field Descriptions DELTA ELECTRONICS, INC. 2 wire address 1010001 X (A2h) Alarm and Warning Thresholds (56 bytes) Cal Constants (40 bytes) Real Time Diagnostic Interface...
- Page 10 Byte 63: Check sum of bytes 0-62. Byte 68-83: Serial number. Byte 84-91: Date code. Byte 95: Check sum of bytes 64-94. Byte 128 to 255 had been set hex 00. DELTA ELECTRONICS, INC. Address ASCII Note 1 Note 2...
- Page 11 3) P: Operating optical power of transmitter at room temperature. 4) P : Overload optical power of receiver : Sensitivity optical power of receiver 5) Byte 95 contains the low order 8bits of sum of bytes 0-94 DELTA ELECTRONICS, INC. Name Value (Dec.) (MAX.)+15 (MIN.) (MAX.)+10...
- Page 12 RX Optical Power Notes: Temperature is measured internal to the transceiver. Voltage is measured internal to the transceiver. DELTA ELECTRONICS, INC. Description Digital state of the Tx disable input pin Read/ Write bit that allow software disable of laser Digital state of the Tx fault output pin Digital state of the LOS output pin.
-
Page 13: Regulatory Compliance
Ordering information for SFP modules LCP-1250B4MDRX : Temperature Blank: -5 to +70 degree C H: -10 to +85 degree C T: -40 to +85 degree C DELTA ELECTRONICS, INC. Reference Qty’ (1) Satisfied with electrical characteristics of product spec. (2) No physical damage... -
Page 14: Revision History
Revision History Date Contents Sep., 2007 First release 2007/11/29 Rev. 0A www.deltaww.com DELTA ELECTRONICS, INC.
