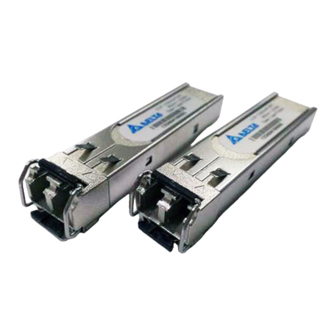

RoHS Compliant 4.25Gb/s Short Wavelength Tri-Rate SFP
Transceiver for Fiber Channel
Description
The LCP-4250A4CDR series are hot pluggable
3.3V Small-Form-Factor transceiver modules
designed
expressly
communication applications that require rates of
up to 4.25Gb/s. It is compliant with the Fiber
Channel standards FC-PI-2, as well as MSA
SFF-8472.
The LCP-4250A4CDR transceivers provide with
the LC receptacle that is compatible with the
industry
standard
transceiver is also compatible with industry
standard RFT connector and cage.
The post-amplifier of the LCP-4250A4CDR also
includes a LOS (Loss Of Signal) circuit that
provides a TTL logic-high output when an
unusable optical signal level is detected.
The LCP-4250A4CDR transceiver is a Class 1
eye safety product. The optical power levels,
under normal operation, are at eye safe level.
DELTA ELECTRONICS, INC.
for
high-speed
TM
LC
connector.
The
FEATURES
Compliant with SFP transceiver SFF-8472
MSA specification and Fiber Channel FC-PI-2
850nm VCSEL laser
Built-in digital diagnostic monitoring function
Compliant with 4.25/2.125/1.0625 Gb/s Fiber
Channel (400/200/100-M5/M5E/M6-SN-I)
Compliant with Industry Standard RFT
Electrical Connector and Cage
Duplex LC connector
Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Applications
Tri-Rate 1.063/2.125/4.25 Gb/s Fiber Channel
Up to 400m link over OM3 MMF for 3.072Gbps
CPRI application
Transmission Distances
Data Rate
OM3 MMF OM2 MMF OM1 MMF
4.25Gb/s
380m
2.125Gb/s
500m
1.0625Gb/s
860m
1
150m
70m
300m
150m
550m
300m
2008/3/18
Rev. 0A
www.deltaww.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Delta Electronics LCP-4250A4CDR Series
Summary of Contents for Delta Electronics LCP-4250A4CDR Series
- Page 1 LOS (Loss Of Signal) circuit that provides a TTL logic-high output when an unusable optical signal level is detected. The LCP-4250A4CDR transceiver is a Class 1 eye safety product. The optical power levels, under normal operation, are at eye safe level.
-
Page 2: Absolute Maximum Ratings
Internally AC coupled and terminated to 100 Ohm differential load. Pull up to V on host Board. Internally AC coupled, but requires a 100 Ohm differential termination at or internal to Serializer/ Deserializer. Unfiltered, 20 – 80%. DELTA ELECTRONICS, INC. Symbol Min. Typ. Max. -
Page 3: Optical Characteristics
Equivalent extinction ratio specification for Fiber Channel. Allows smaller ER at higher average power. Measured at nominal data rate. These are unfiltered 20%~80% values. The sensitivity is tested at a BER of 1×10 Mask of the eye diagram for the optical transmit signal DELTA ELECTRONICS, INC. -1 NRZ, 50/125µm MMF) Symbol Min. - Page 4 Transmitter Ground Transmit Data In Inv. Transmit Data In VeeT Transmitter Ground Plug Seq.: Pin engagement sequence during hot plugging. DELTA ELECTRONICS, INC. Function Plug Seq. Note 1 Note 2 Module disables on high or open Note 3, 2 wire serial ID interface...
- Page 5 The inputs will accept differential swings of 500 – 2400 mV (250 – 1200 mV single-ended), though it is recommended that values between 500 and 1200 mV differential (250 – 600 mV single-ended) be used for best EMI performance. DELTA ELECTRONICS, INC. www.deltaww.com 2008/3/18...
- Page 6 Recommend Circuit Schematic Protocol Vcc Tx_Disable Tx_Fault Protocol IC SerDes IC Rx_LOS Rate Select PLD / PAL DELTA ELECTRONICS, INC. 3.3V 10uF 0.1uF RES1 0.1uF Tx_Disable Tx_Fault TD + TD - VeeT RES1 10uF 0.1uF RD + 100 Ohms* RD -...
- Page 7 Package Outline Drawing for Metal Housing with Bail de-latch 2008/3/18 Rev. 0A www.deltaww.com DELTA ELECTRONICS, INC.
- Page 8 Time from fault to TX fault on. Time TX Disable must be held high to reset TX_Fault. 6) Time from LOS state to Rx LOS assert. 7) Time from non-LOS state to Rx LOS deassert. DELTA ELECTRONICS, INC. Symbol Min. t_off...
- Page 9 1) Write the password (11h, 11h, 11h, 11h) on the bytes of 123-126 of address A2h then the address of bytes 128-255 (User Writable) can be read and written. DELTA ELECTRONICS, INC. 2 wire address 1010001 X (A2h) Alarm and Warning Thresholds...
- Page 10 Byte 60-61: The center wavelength of transmitter Byte 63: Check sum of bytes 0-62. Byte 68-83: Serial number. Byte 84-91: Date code. Byte 95: Check sum of bytes 64-94. DELTA ELECTRONICS, INC. Address ASCII Note 4 Note 4 Note 5...
- Page 11 3) P: Operating optical power of transmitter at room temperature. 4) P : Overload optical power of receiver : Sensitivity optical power of receiver 5) Byte 95 contains the low order 8bits of sum of bytes 0-94 DELTA ELECTRONICS, INC. Name Value (Dec.) (MAX.)+15 (MIN.) (MAX.)+10...
- Page 12 RX Optical Power Notes: Temperature is measured internal to the transceiver Voltage is measured internal to the transceiver DELTA ELECTRONICS, INC. Description Digital state of the Tx disable input pin Read/ Write bit that allow software disable of laser Digital state of the Tx fault output pin Digital state of the LOS output pin.
- Page 13 Ordering information for SFP modules LCP-4250A4CDRX : Temperature Blank: -5 to +70 degree C H: -10 to +85 degree C T: -40 to +85 degree C DELTA ELECTRONICS, INC. Reference Qty’ (1) Satisfied with electrical characteristics of product spec. (2) No physical damage...
