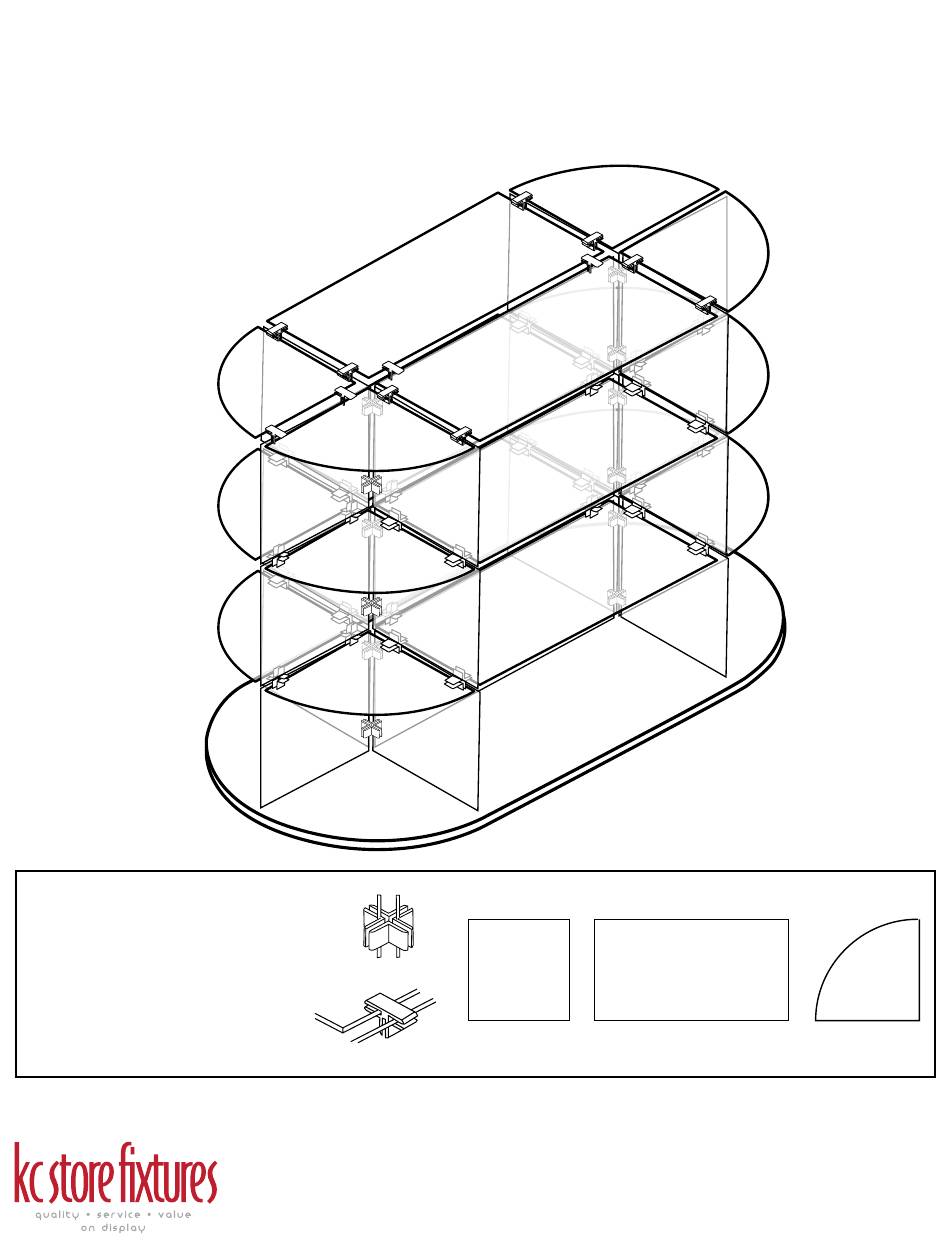

GLASS UNIT - OVAL 36"H x 72"W
ASSEMBLY INSTRUCTIONS
PARTS LIST
(A) 40 - 4-way connector
(B) 14 - 3-way connector
(C) 18 - square glass panels
(D) 9 - rectangular panels
(E) 12 - quarter round glass panels
BASE SOLD SEPARATELY.
#14218C, 14218B, 14218CL
(A)
(B)
www.kc-store-fixtures.com
7400 E. 12th Street, Kansas City, MO 64126 • 1-800-862-0899
(C)
(D)
(E)
PAGE 1 OF 3
Advertisement
Related Manuals for KC STORE FIXTURES 14218C
Summary of Contents for KC STORE FIXTURES 14218C
- Page 1 GLASS UNIT - OVAL 36"H x 72"W ASSEMBLY INSTRUCTIONS #14218C, 14218B, 14218CL PARTS LIST (A) 40 - 4-way connector (B) 14 - 3-way connector (C) 18 - square glass panels (D) 9 - rectangular panels (E) 12 - quarter round glass panels BASE SOLD SEPARATELY.
- Page 2 GLASS UNIT - OVAL 36"H x 72"W ASSEMBLY INSTRUCTIONS #14218C, 14218B, 14218CL STEP 1 Using two 4-Way Connectors (A), fasten 3 square panels (C) forming a letter "T" (Fig. 1). When placing 4-way connectors, locate approximately 2 inches from the top and bottom of glass panel.
- Page 3 GLASS UNIT - OVAL 36"H x 72"W ASSEMBLY INSTRUCTIONS #14218C, 14218B, 14218CL STEP 3 Repeat STEP 1 and STEP 2 to complete level two. Repeat only STEP 1 to begin level three. Level 3 Level 2 Level 1 STEP 4 To comlete level three, place 3-Way Connectors (B) at the top of each square glass panel, use a total of six connectors.
