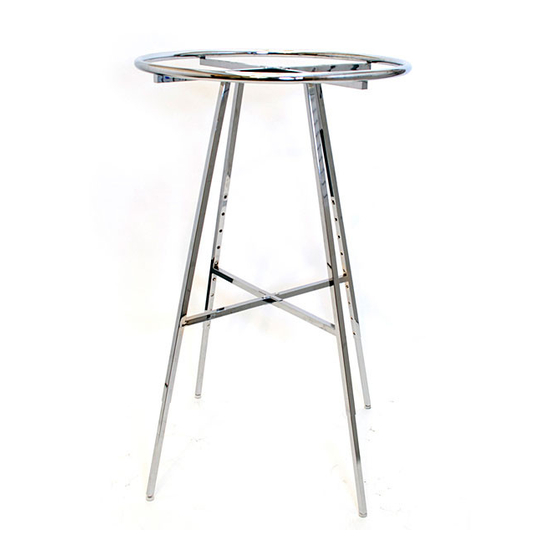

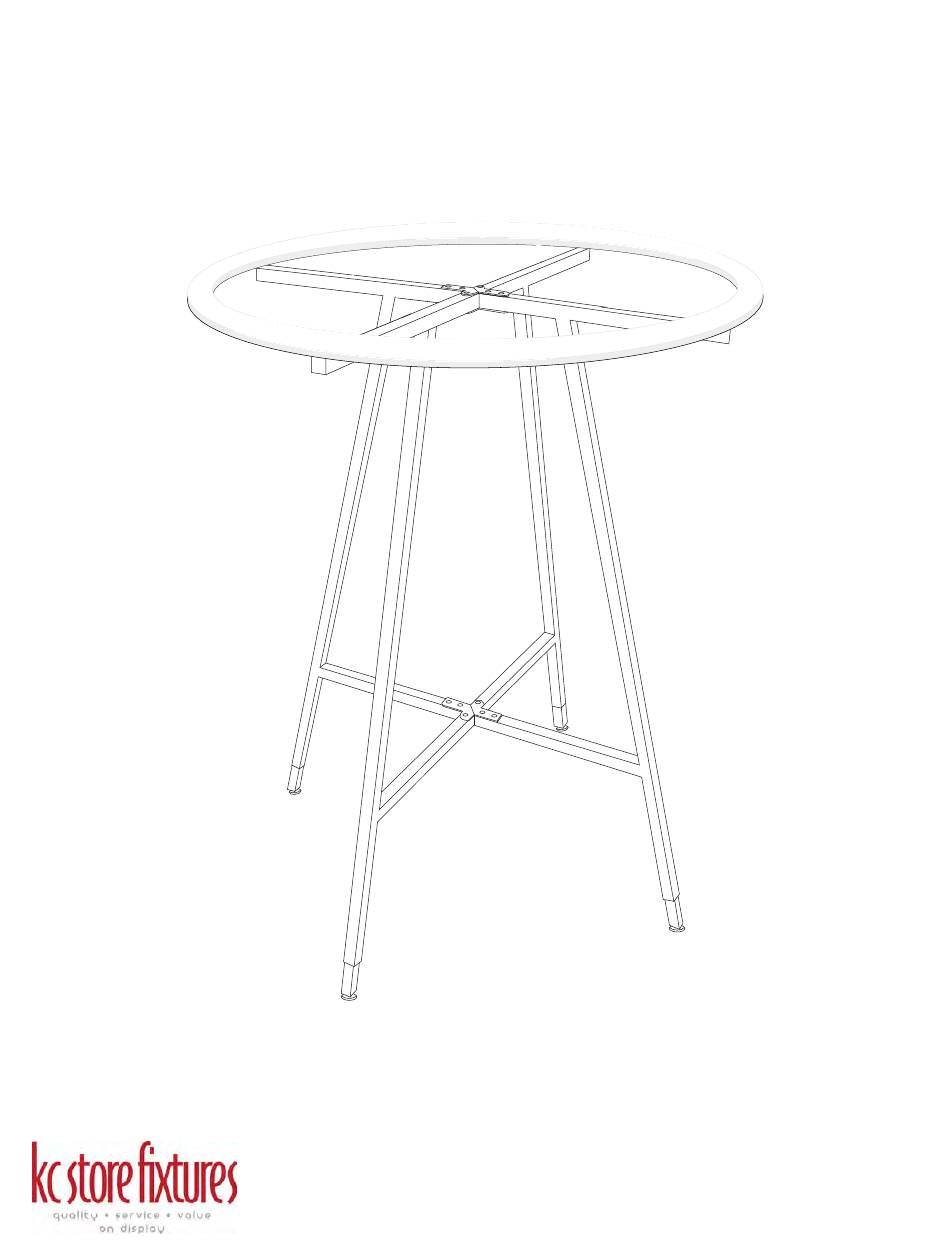

- Page 1 ROUND RACK ASSEMBLY INSTRUCTIONS 36-inch #28301, 42-inch 28302 www.kc-store-fixtures.com PAGE 1 of 3 7400 E. 12th Street, Kansas City, MO 64126 • 1-800-862-0899...
- Page 2 ROUND RACK ASSEMBLY INSTRUCTIONS 36-inch #28301, 42-inch 28302 PARTS IN CARTON: 1 - BASE 1 - RING STEP 1: LOCATE BASE STEP 2: (SEE FIGURE 1) STAND THE BASE UPRIGHT. TWO LEGS OF THE BASE WILL BE ABLE TO SWING OUT.
- Page 3 ROUND RACK ASSEMBLY INSTRUCTIONS 36-inch #28301, 42-inch 28302 STEP 4: (SEE FIGURE 2) LOCATE THE 4 SMALL POSTS ON THE TOP OF THE ASSEMBLY. LOCATE THE 4 HOLES ON THE BOTTOM OF THE RING. ALIGN THE 4 HOLES OF THE RING ABOVE THE 4 POSTS OF THE BASE. SLIDE EACH POST INTO THE HOLES OF THE RING UNTIL THE RING FULLY REST ONTO THE BASE.
