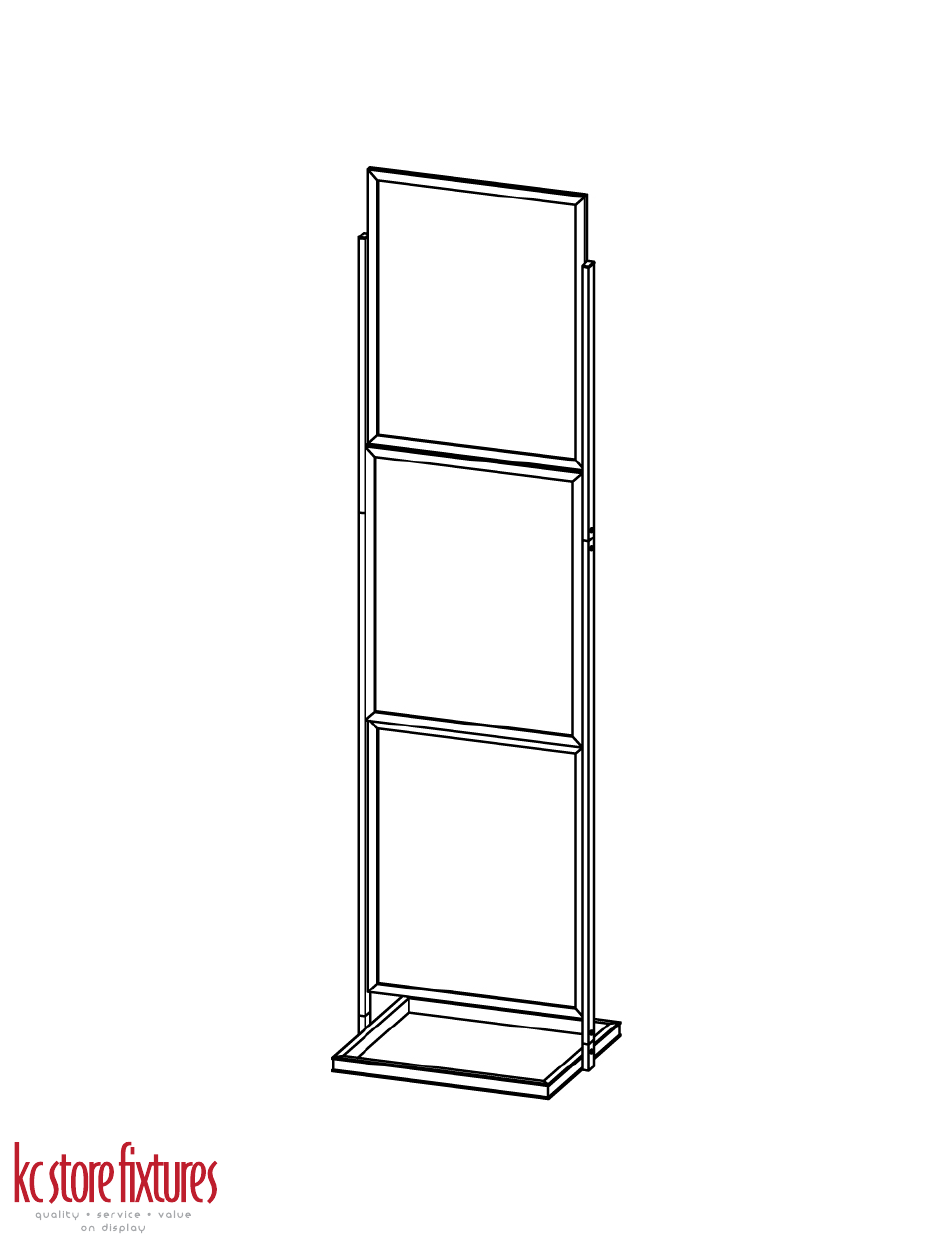

- Page 1 TRIPLE SIGN FRAME ASSEMBLY INSTRUCTIONS Chrome #10616, Black #10606 www.kc-store-fixtures.com 7400 E. 12th Street, Kansas City, MO 64126 • 1-800-862-0899 PAGE 1 OF 4...
- Page 2 TRIPLE SIGN FRAME ASSEMBLY INSTRUCTIONS Chrome #10616, Black #10606 PARTS LIST (A) 2 - 25" Vertical post (B) 2 - 28" Vertical post (C) 2 - 23-1/2" Vertical post (D) 4 - 2-1/2" Hex head bolts (E) 16 - 1/2" Philips head bolts (F) 1 - Base (G) 3 - 22"x28"...
- Page 3 TRIPLE SIGN FRAME ASSEMBLY INSTRUCTIONS Chrome #10616, Black #10606 NOTE: Screws located along the side of vertcal posts must face inward. This is where sign frames will attach. STEP 1 STEP 2 STEP 3 Remove bolts (D) from bottom of both Add 28"...
- Page 4 TRIPLE SIGN FRAME ASSEMBLY INSTRUCTIONS Chrome #10616, Black #10606 STEP 4 Starting at the bottom, attach sign frames (G) using screws located on the inside of each vertical post. Open slot on sign frames must face up. www.kc-store-fixtures.com 7400 E. 12th Street, Kansas City, MO 64126 • 1-800-862-0899...
