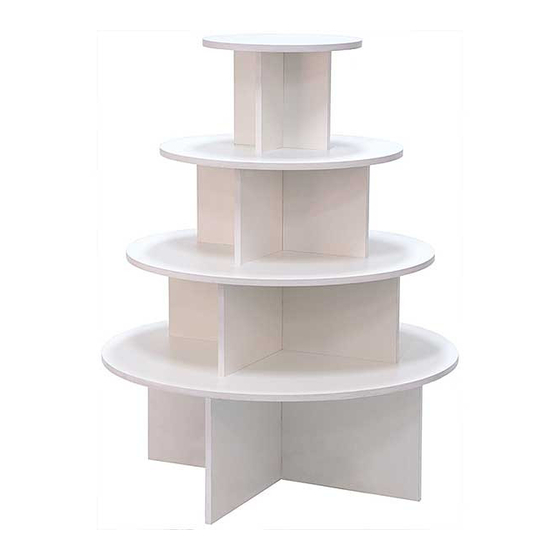

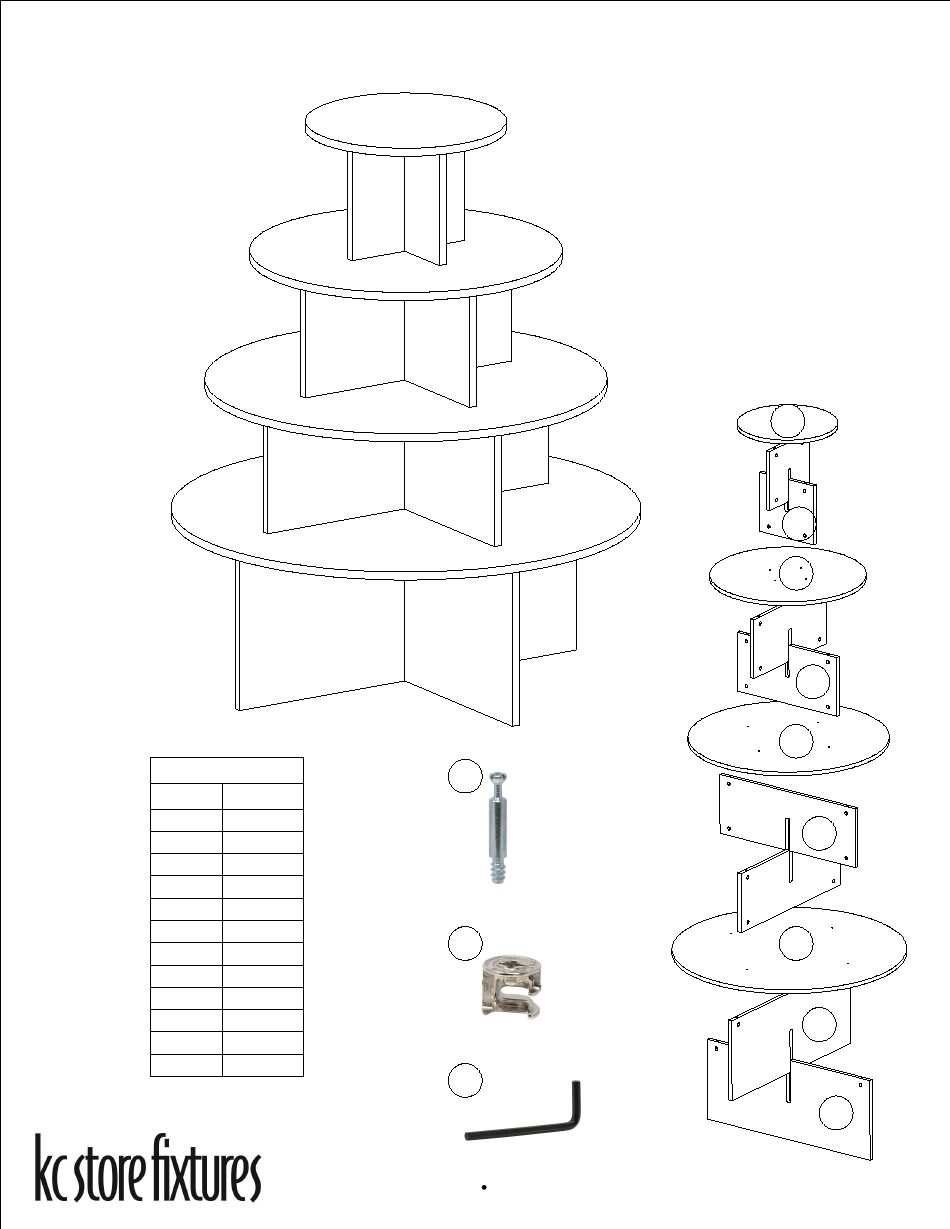

- Page 1 4 Tier Round Display Table Assembly Instructions COMPONENTS Part # 800-862-0899 www.kc-store-fixtures.com 1 of 4...
- Page 2 4 Tier Round Display Table Assembly Instructions Cam and Cam Bolt Construction Cam Bolt: (Figure 1) Screw the cam bolt into the predrilled hole. Tighten until snug and the non-threaded portion of the bolt (A) touches the surface. Cams: (Figure 2) Make sure the hex drive on the cam faces up, then push the cam down into large hole.
- Page 3 4 Tier Round Display Table Assembly Instructions BASE TOP BASE Step 1 RECIEVING HOLES Screw bolts into bolt holes on bottom side of base top. Fit both base parts together using center cuts. Align base top onto receiving holes in base parts. CAM HOLE Place cams in holes with arrow facing up.
- Page 4 4 Tier Round Display Table Assembly Instructions TIER 3-TOP RECIEVING HOLES TOP CAM HOLES TIER 3-BASE BOTTOM CAM HOLES CENTER CUT BOLT HOLES Step 3 Screw bolts onto bolt holes on bottom side of Tier 3-Top. Fit both Tier 3-Base parts together using center cuts. Alight Tier 3-Top onto receiving holes in Tier 3-Base parts.
