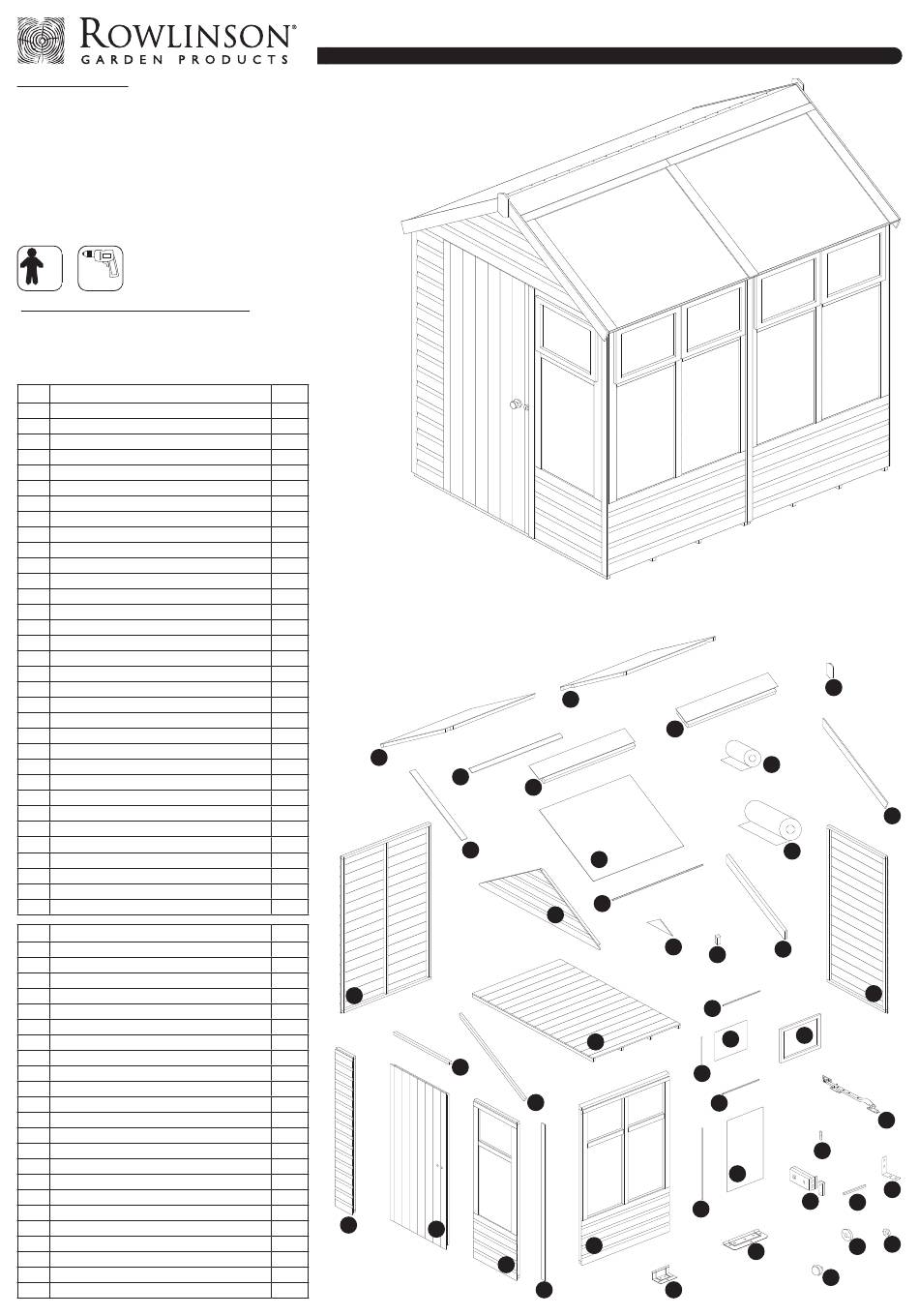

Rowlinson Garden Products GH86 Assembly Instructions Manual

Before assembly
•
We recommend that time is taken to read the
instructions before starting assembly, then follow the
step by step guide. The instruction sheet is only
a guide to the assembly. Certain items may not be
shown to scale.
•
Check all components prior to assembly
•
This product should be assembled by no less than
two adults.
•
Never attempt to erect the assembly in high winds.
•
Drill components where indicated.
x2
Drill
Recommended tools for assembly
• Power Drill/Screwdriver • Tape measure
• Cross-head drill bit • Hammer
• 3mm diameter drill bit • Sharp knife
• Silicon sealant
• Spirit level
No. Components
1 Floor panel
2 Large wall panel
(width 1174mm)
3 Back panel
(width 850mm)
4 Side window panel
(width 1174mm)
5 Front panel
(width 250mm)
6 Front window panel
(width 630mm)
7 Apex panel
8 Door header rail
(35x28x820mm)
9 Left front roof panel
(1140x1214mm)
10 Left rear roof panel
(1140x1214mm)
11 Right front roof panel
(243x1214mm)
12 Right rear roof panel
(243x1214mm)
13 Roof rafter
(65x38x1036mm)
14 Rafter support block
15 Roof gusset
16 Front/rear felt batten
(35x28x1140mm)
17 Roof glazing panel
(10x925x1212mm)
18 Roof glazing panel edge strip
19 Roofing felt roll
(2.7m)
20 Roofing ridge felt roll
(2.7m)
21 Horizontal roof glazing coverstrip
22 Vertical roof glazing coverstrip
23 Door
24 Coverstrips/door weatherstrips
25 Window frame
26 Small window glazing
27 Small window vertical beading
28 Small window horizontal beading
29 Large window glazing
30 Large window vertical beading
31 Large window horizontal beading
32 Bargeboard
33 Finial
No. Fixing Kit
34 Metal L-bracket
35 Cabinet hinge
36 Window stay
37 Hurl hinge
38 Rim lock & catch plate
39 Spindle
40 Door knob base
41 Key hole cover
42 Door knob & grub screw
43 Turn button
44 80mm screws
45 60mm screws
46 50mm screws
47 50mm screws black round head screws
48 40mm screw
49 32mm screws
50 25mm screws
51 25mm black screws
52 20mm screws
53 12mm black screws
54 25mm panel pins
55 Plastic screw caps
56 10mm felt nails
8x6 Growhouse
Assembly Instructions
Qty.
2
2
2
2
1
1
2
1
1
1
1
1
2
2
2
2
2
2
(Width 1214mm)
1
1
2
(75x12x1216mm)
3
(75x12x897mm)
1
9
(48x12x1820mm)
5
5
10
(15x15x225mm)
10
(15x15x445mm)
5
10
(12x30x516mm)
10
(12x30x905mm)
4
2
Qty.
2
10
5
3 2
1
1
1
1
2
1
6
19
66
5
17
68
27
30
5
54
4
90
23
70
9
21
11
22
8
16
23
6
24
10
12
17
18
7
15
14
28
26
1
27
31
30
4
35
English SS684
33
20
32
19
13
3
25
36
43
29
34
38
39
41
40
37
42
