Sierra QuadraTherm 640i Quick Start Manual

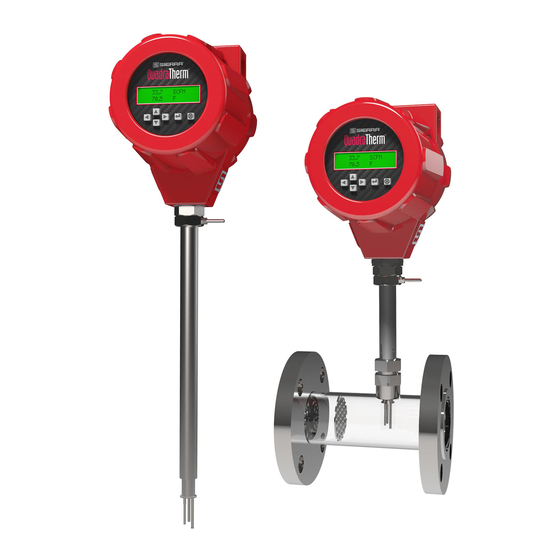

QuadraTherm
This Quick Start Guide for the QuadraTherm
installation instructions. For complete simplified instructions, please download the QuadraTherm Instuction manuel.
IMPORTANT! Before installing meter, follow the steps below
Step 1. Download Instruction Manual
To get technical information, download to the QuadraTherm 640i/780i
Instruction Manual and the Smart Interface Portal (SIP) Software
Manual at sierrainstruments.com/quadratherm-manual

Safety

1. Apply power only after reviewing the wiring diagrams in the "Installation and Wiring" section below or in Chapter 2 of the Instruction
Manual. Apply gas flow only after checking plumbing connections for leaks.

Installation and Wiring

1. Install the meter in the pipe. Make sure you have enough straight run pipe for your installation. See Figure 2-1 in Chapter 2 of the
Instruction Manual for the straight run requirements.

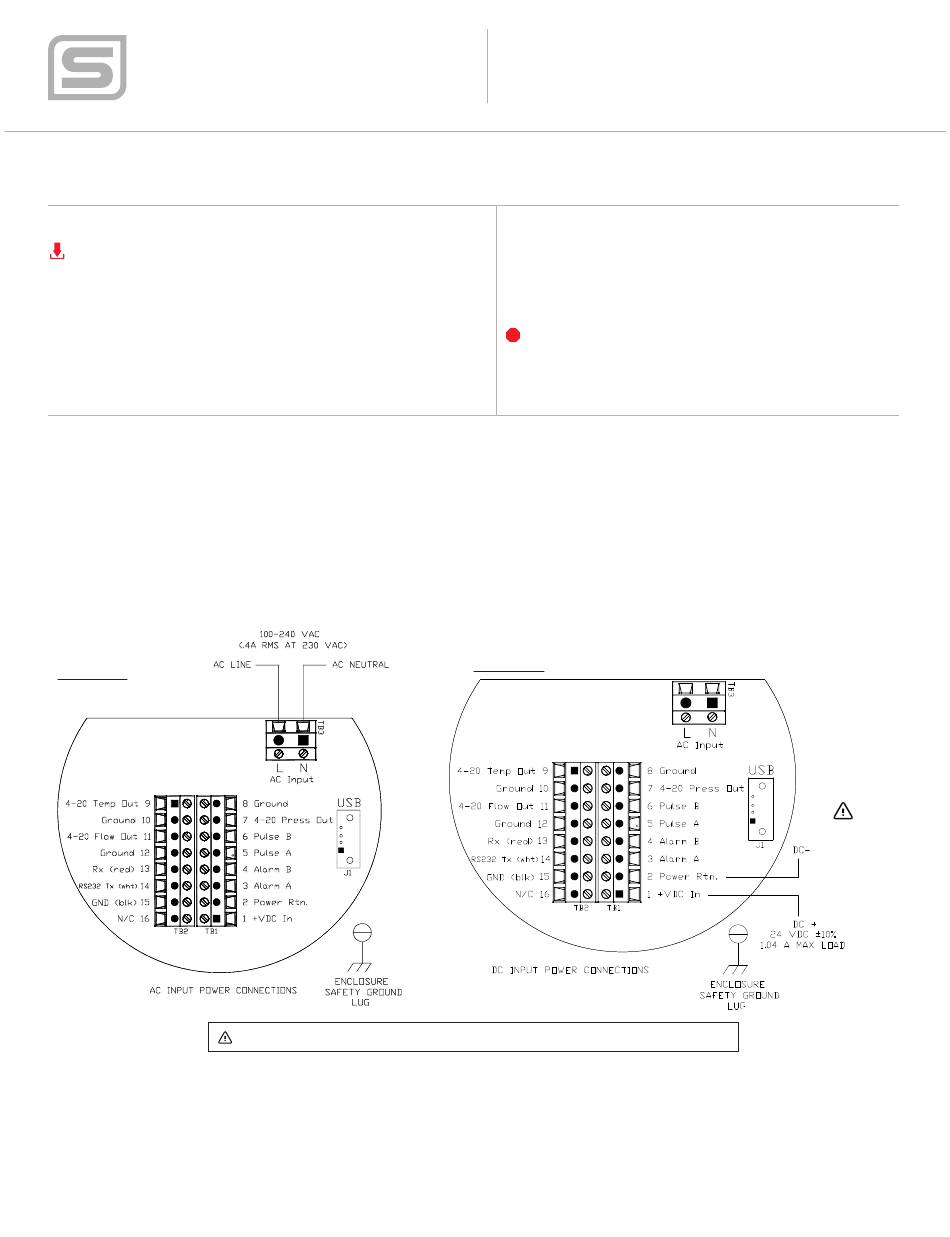

2. Connect AC or DC power per the meter configuration received. See the diagrams below or Figures 2-5, 2-6, and 2-7 in Chapter 2 in
the Instruction Manual for more information.
AC Power
*
3. After a short start-up routine, the meter will begin displaying measured variables using the setup as supplied to the factory from
your application data sheet. You will access this data via the display (if ordered) or the Smart Interface Program (SIP) if connected
and installed on your computer. The meter will scroll through three screens: flow and temperature, pressure (if ordered), and
totalizer. See Chapter 3: Operating & Programming in your Instruction Manual.
4. Connect the analog outputs (if you are going to use them). The meter comes with three non-isolated outputs for
flow, temperature, and pressure.
640i/780i
®
This is not a Loop powered device. • Do not apply power to 4-20 mA Loops. • 4-20 mA Loops are active (non-isolated)
QUICK START GUIDE
640i/780i Thermal Mass Flow Meter
®
Step 2. Download FREE Software — Get Apps
Download the most current Smart Interface Portal (SIP)
product software at
Use the included 9-pin, RS-232 cable with fly leads to connect
the meter to your computer
Important.
you must download the software to a USB stick or other
storage device.
DC Power
gives easy set up and
sierrainstruments.com/640i-780i-SIP
If you do not have an internet connection,
*
Use Power
RTN Only
