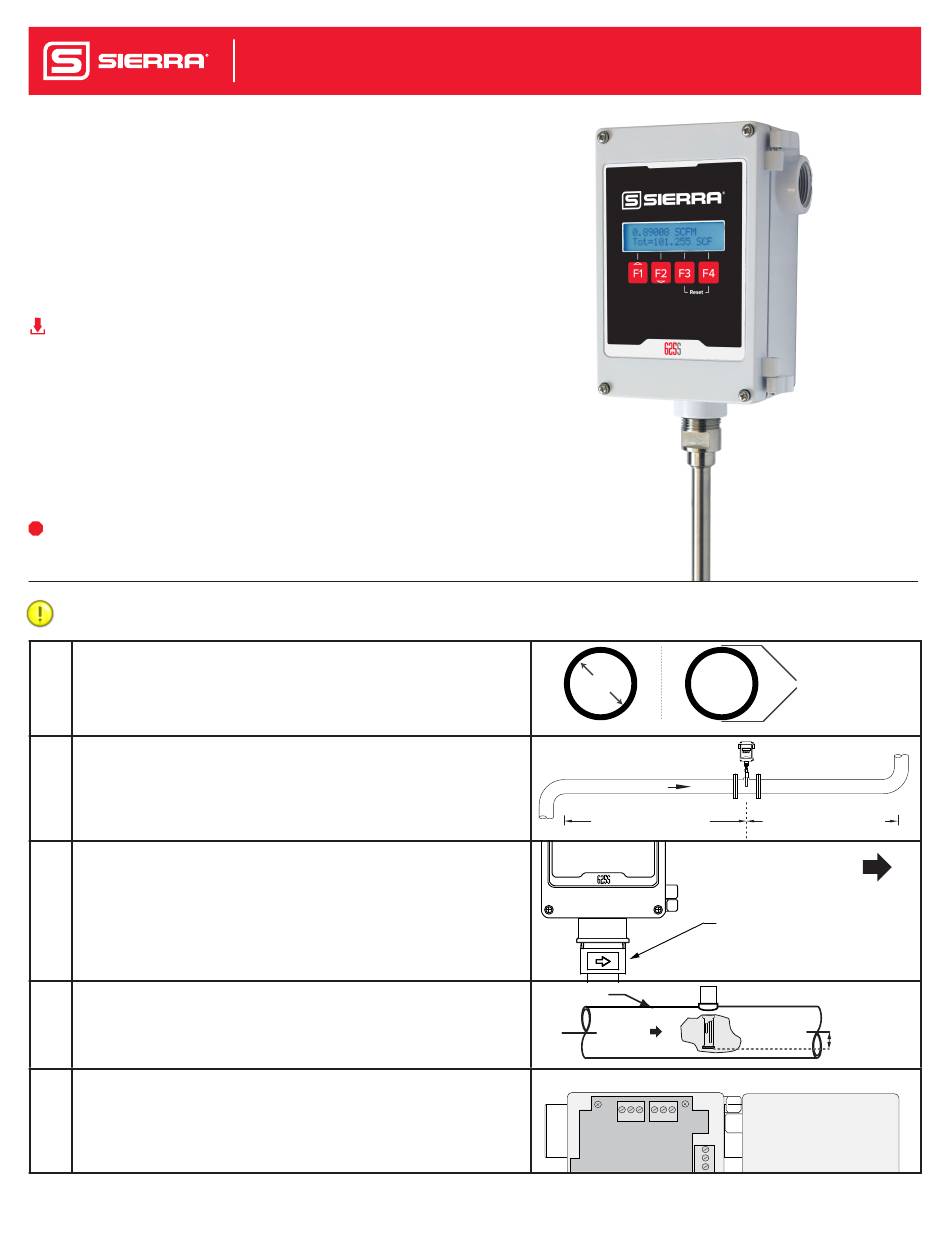

Sierra SierraTrak 625S Quick Start Manual

SierraTrak 625S
TM
This Quick Start Guide for the SierraTrak
Thermal Mass Flow Meter
instructions. For complete instructions, please download and read the
SierraTrak 625S Instruction Manual.
IMPORTANT! Before installing meter, follow the steps below
Step 1. Download Instruction Manual
To get technical information, download to the SierraTrak 625S
Instruction Manual and the Smart Interface Portal (SIP) Software
Manual at sierrainstruments.com/sierratrak-manual
Step 2. Download FREE Software – (Optional)
Download the most current SierraTrak 625S product software
at
sierrainstruments.com/trakview-software.
cable (if ordered) to connect the meter to your computer.
Important. If you do not have an internet connection, you must
download the software to a USB stick or other storage device.
NOTE!
Please read the entire quick-start procedure before beginning installation.
1.
Record inside diameter (ID). Ensure the actual pipe ID matches
the pipe ID shown on the factory calibration certificate. If IDs
do not match, refer to "Pipe Diameter" in the SierraTrak 625S
manaul on page 58.
2.
Record up/downstream straight-pipe requirements based on
Pipe ID. Sierra recommends a minimum of 15 pipe diameters
of upstream straight-run and 10 pipe diameters of downstream
straight-run. Refer to p. 19 in the SierraTrak 625S manual.
3.
The Flow Direction Indicator must point in the direction of flow.
4.
Ensure correct probe depth setting. If using 1 ½" pipe size,
please see note on p. 23 in the SierraTrak 625S manual.
5.
Ensure power wiring properly connected.
1 | 625S Quick Install_v1_2022
Quick Start Guide
625S
TM
gives easy set up and installation
Use the included
ID
Pipe ID min.
FLOW
15X Upstream
INDICATOR:
PIPE
L C
FLOW
Main Board Electronics
TS7 1 2 3 1 2 3 TS1
AC POWER DC POWER
TS2
1 1
2
3
4
I/O WIRING
AND
5
OPTIONAL
6
MODBUS
COMMUNICATION
7
8
9
10
11
TS8
Outer
Diameter
(OD)
10X Downstream
FLOW
- POINT IN DIRECTION
OF FLOW
0.87"
(22.1mm)
Inside Display/Cover
