Wind Calm Line
Assembly manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wind Calm Line and is the answer not in the manual?

Questions and answers

Related Manuals for Create Wind Calm Line

Summary of Contents for Create Wind Calm Line

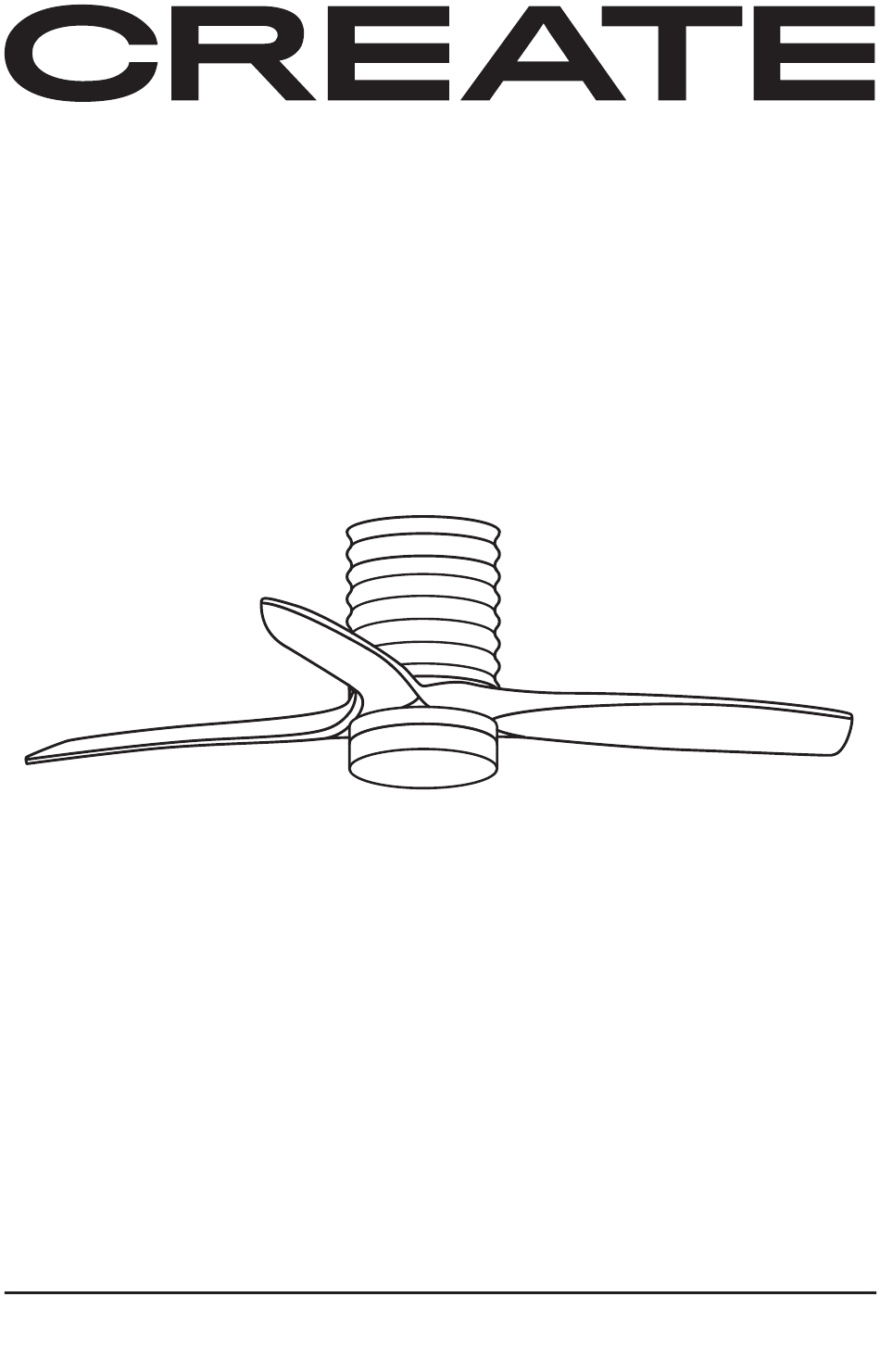

  • Page 1 Wind Calm Line Assembly manual...
  • Page 2 To download this user guide in your language, visit our website: www.create-store.com/uk Para descargar el manual en su idioma, visite nuestra web: www.create-store.com/es Para baixar o manual no seu idiomas, visite nosso site: www.create-store.com/pt Pour télécharger le manuel dans votre langue, visitez notre site Web: www.create-store.com/fr...

  • Page 3: Table Of Contents

    INDEX Parts list Step 1. Wood roof Step 1. Concrete roof Step 1. False ceiling Step 2. Driver connection Step 3. Anchoring the motor to the ceiling Step 4. Assembly of the blades Step 5. Placement of the trim Step 6. Led board connection Step 7.

  • Page 4: Parts List

    PARTS LIST MOUNTING BRACKET DRIVER REMOTE CONTROL (1) EXPANSION SCREWS (2) WOOD SCREWS BLADES LED PLATE LAMP COVER TRIM ENGINE SUPPORT SCREWS + WASHERS FOR THE BLADES SCREWS FOR SCREWS FOR SPLICE TERMINALS BALANCING KIT SUPPORT + ENGINE TRIM + ENGINE ATTENTION! Remove the three plastic security tabs from the bottom of the motor before beginning assembly.

  • Page 5: Step 1. Wood Roof

    STEP 1. WOOD ROOF PARTS AND TOOLS EQUIPMENT NOT INCLUDED (2) WOOD SCREWS OPTIONAL ACCORDING TO ROOF TYPE Mark with a pencil the 4 holes of the piece If necessary, depending on the type of A in the roof. roof, you will need to use a drill to make the hole in the wood.

  • Page 6: Step 1. Concrete Roof

    STEP 1. CONCRETE ROOF PARTS AND TOOLS EQUIPMENT NOT INCLUDED (1) EXPANSION SCREWS disassemble the part E separating it into pieces. Ø8mm Mark with a pencil 2 parallel holes using With the help of a drill, make the two cor- the piece as a guide A.
  • Page 7 Introduce the part in order D2, D3 and then tighten the part D4 with a no. 10 spanner, the nut D4. until you feel it is secure. Make sure the part A It is perfectly attached to the ceiling. ENGLISH...

  • Page 8: Step 1. False Ceiling

    STEP 1. FALSE CEILING PARTS AND TOOLS EQUIPMENT NOT INCLUDED FIXING SCREWS WITH SPRING LEVER Mark 2 parallel holes on the ceiling with a With the help of a drill, make the two cor- pencil using the piece as a guide A. responding holes.

  • Page 9: Step 2. Driver Connection

    STEP 2. DRIVER CONNECTION PARTS AND TOOLS Insert the part hook A in a hole in the part I so that the motor is hanging and facilitate the connection of the cables. Join the connections of the part I with those of the piece B, each with its corresponding color. ENGLISH...
  • Page 10 Check that central Select and connect all ground wires, including the one for structure is well placed. your installation. Once connected, place the Once connected, place the Connect the PHASE cable piece M screwing it in until piece M screwing it in until of the driver (AC-N) to the it is secure.

  • Page 11: Step 3. Anchoring The Motor To The Ceiling

    STEP 3. ANCHORING THE MOTOR TO THE CEILING Use 2 screws K and screw them, not too tightly, into the par- Remove the piece from the allel holes in the part A. hook I and fit it into the piece A without pinching any wires.

  • Page 12: Step 4. Assembly Of The Blades

    STEP 4. ASSEMBLY OF THE BLADES Includes a spare screw With the motor well placed, Place the first blade AND holding it with washers and we will begin the assembly screws J with the help of the screwdriver, without tightening of the blades E.

  • Page 13: Step 5. Placement Of The Trim

    STEP 5. PLACEMENT OF THE TRIM To place the part H Pass the fan wires through the center hole squaring the 2 holes with those of the center bracket. Screw in the screws L in the two large holes of the piece H without pressing too much. Then turn the piece H to the right so that it is perfectly seated and aligned with the third hole.

  • Page 14: Step 6. Led Board Connection

    STEP 6. LED BOARD CONNECTION Connect the wires of the part F to those of the fan joining the con- nections, each one with the same color. Then attach the part F to the fan through the magnets so that it stays in place. ENGLISH...

  • Page 15: Step 7. Attaching The Lamp Cover

    STEP 7. ATTACHING THE LAMP COVER Place the piece G. on the fan and secure it by turning clockwise. Don't forget to check that the part G it stays well attached. Once verified, you will be able to connect the electricity and enjoy your new fan with light. ENGLISH...

  • Page 16: Wall Controller Installation

    WALL CONTROLLER INSTALLATION Through our store you can buy the wall controller separately. Follow the instructions below for assembly. PARTS LIST Motor Output LED Output AC_N AC_L Controller Clamping bracket Screws Driver Command  MOUNTING THE WALL CONTROLLER WITH LIGHT BRACKET FIXING AND CONTROLLER MOUNTING Use a switch close to the fan to which you are installing the controller.
  • Page 17 CONTROLLER CONNECTION TO FAN 1. To access the controller of your ceiling fan you must remove the two side screws as shown in the image. Once you access the driver, disconnect all wiring and remove the driver from the fan motor. 2.

  • Page 18: Blade Balancing Kit

    BLADE BALANCING KIT Your ceiling fan may have blade swinging issues when it is running due to irregularities in the blades or brackets. Also, incorrect mounting of the system or crooked bearings could cause additional problems. The following procedure is recommended to remedy these problems: 1.
  • Page 20 Made in P.R.C.
