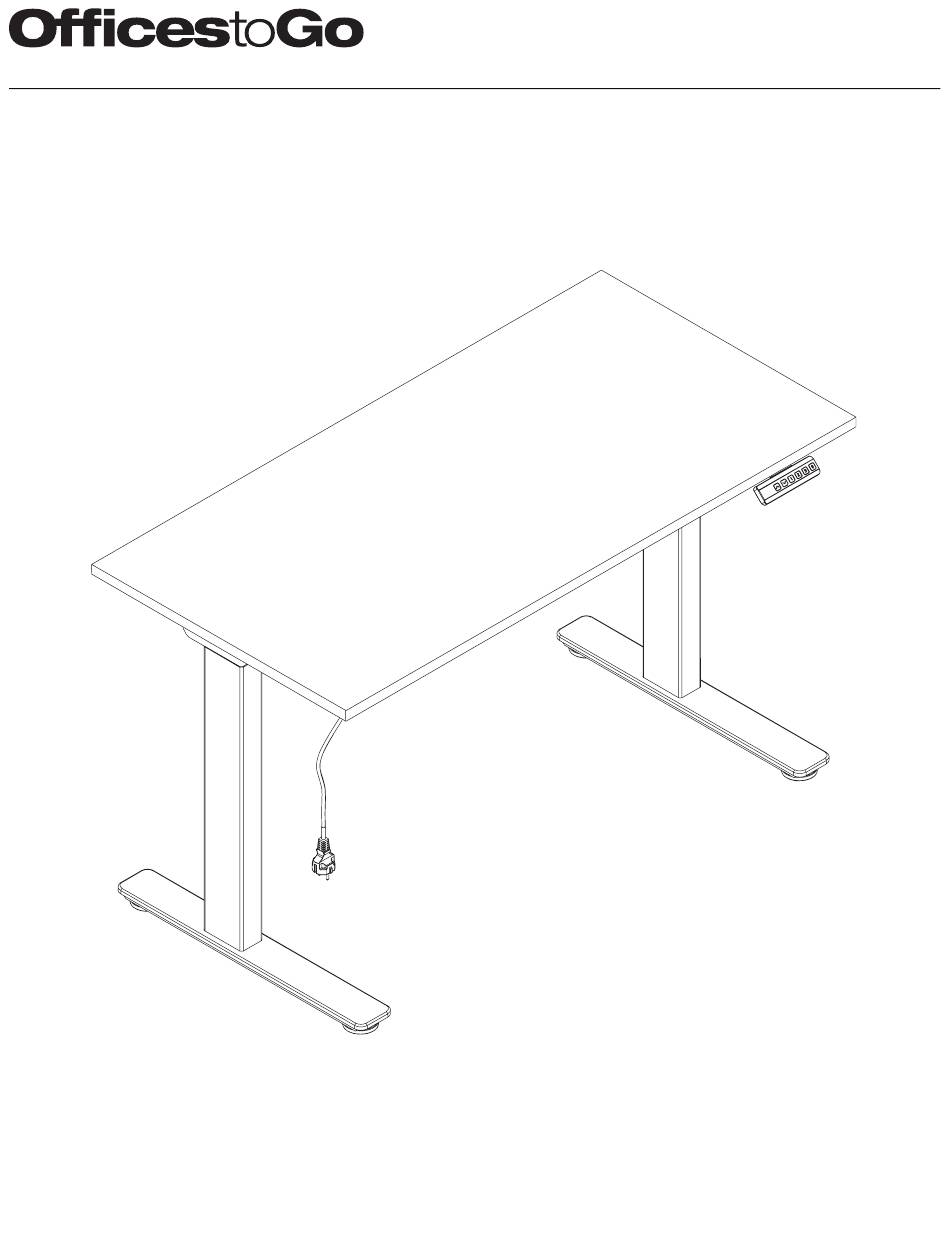

- Page 1 HEIGHT ADJUSTABLE TABLE BASE ASSEMBLY INSTRUCTIONS OTGHABASE3 www.officestogo.com revised 08192024...
-
Page 2: Exploded View
HEIGHT ADJUSTABLE TABLE BASE ASSEMBLY INSTRUCTIONS MODEL: OTGHABASE3 EXPLODED VIEW HARDWARE LIST A x 8+2 B x 4+2 C x 4+2 D x 10+2 E x 2+2 (M8x20) (M6x10) (M6x8) (ST4.8 x 20) (ST3 x 19) F x 1 G x 1... - Page 3 HEIGHT ADJUSTABLE TABLE BASE ASSEMBLY INSTRUCTIONS MODEL: OTGHABASE3 STEP 1 - Unfold legs + affix feet • Before unfolding legs, loosen (but do not remove) screws as shown in the inset below. • Once legs are upright, tighten the screws.
- Page 4 HEIGHT ADJUSTABLE TABLE BASE ASSEMBLY INSTRUCTIONS MODEL: OTGHABASE3 STEP 3 - Assemble brackets + insert spacers • Plastic spacers (Item H) should be placed at all screw ports. • Tighten all screws securely. B x 4 H x 10 I x 2...
- Page 5 HEIGHT ADJUSTABLE TABLE BASE ASSEMBLY INSTRUCTIONS MODEL: OTGHABASE3 STEP 5 - Assemble power supply + handset • Ensure all connections between the control box, legs + handset are secure. • Tighten screws securely. E x 2 STEP 6 - Assemble wire management cover •...
